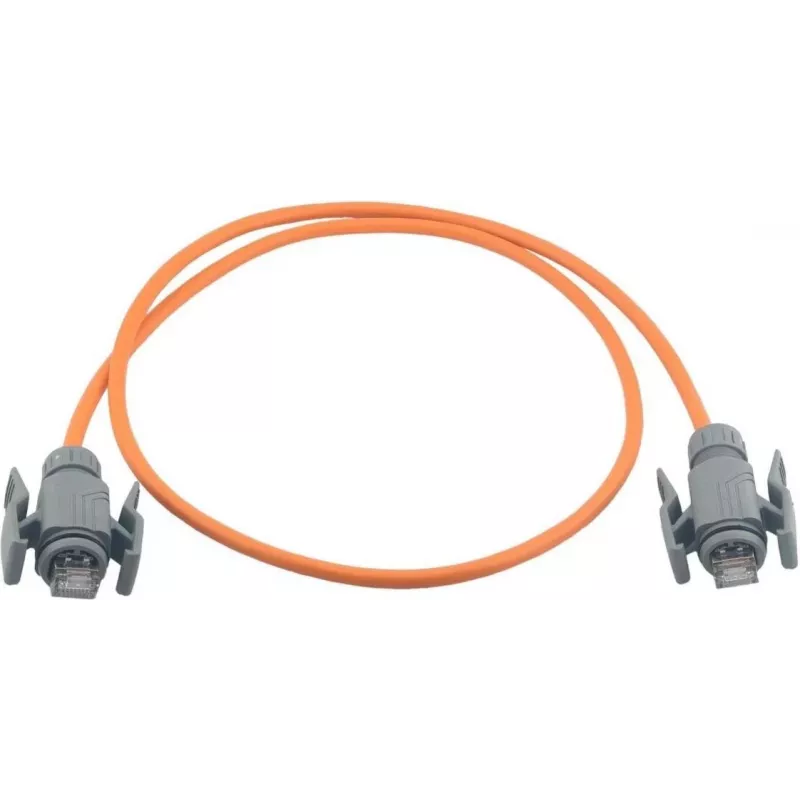

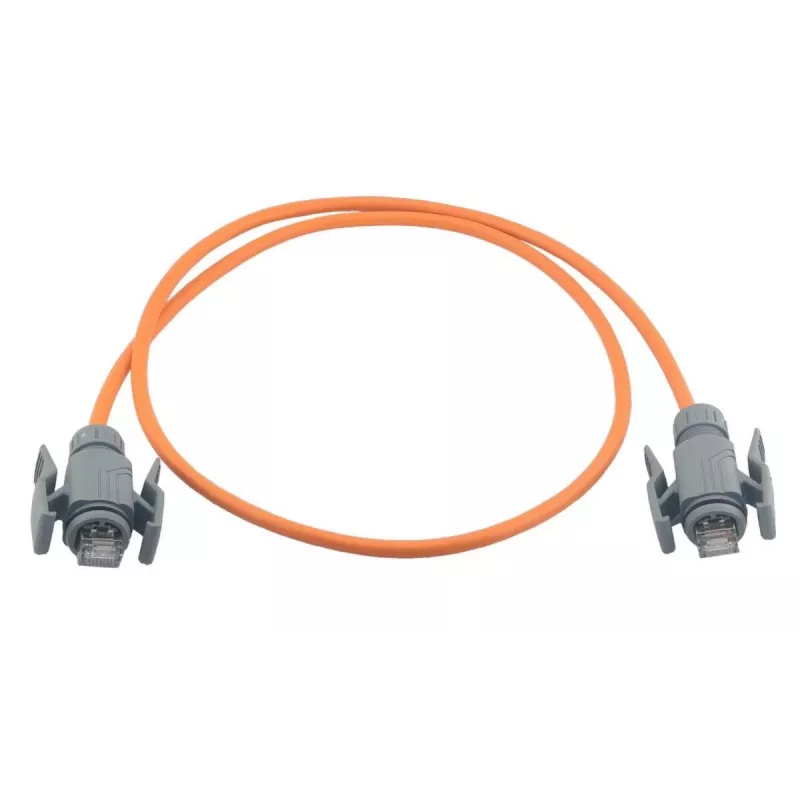

Wirewin Industrial Cat6a S/FTP PUR-patchkabel, 5 m, oranje, IP67 RJ45 PKW-I2-SF-K6A-PUR 5.0 OR

This industrial patch cable stands out with its rugged PUR jacket that resists UV, oil, and abrasion, making it suitable for harsh environments where standard cables fail. The S/FTP shielding ensures reliable 10 Gigabit Ethernet performance up to 500 MHz, while the IP67-rated RJ45 connectors provide dustproof and waterproof protection when mated.

Highlights

• Cat6a performance: supports 10GBASE-T up to 500 MHz
• S/FTP shielding: individually foiled pairs plus overall braid for superior noise immunity
• Anti-UV PUR jacket: halogen-free, oil-resistant, and abrasion-resistant for industrial use
• IP67-rated RJ45 connectors: sealed against dust and temporary immersion
• 5-meter length, orange colour for high visibility

In daily use

Connect machinery, sensors, or access points in factories, outdoor cabinets, or damp locations. The cable operates from -40°C to +80°C and meets IEC 60332-1-2 flame retardancy. Bare copper conductors and TIA/EIA-568B wiring ensure consistent performance. RoHS compliant.

Full specifications

• Cable length: 5 m
• Cable standard: Cat6a
• Cable shielding: S/FTP
• Jacket material: PUR
• Product colour: Orange
• Connector type: RJ45 (IP67)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Bare Copper
• Operating temperature: -40°C to +80°C
• Flammability rating: IEC 60332-1-2
• Environmental compliance: RoHS

Final note

Built for reliability in demanding industrial networks, this cable combines high-speed data with rugged protection.
