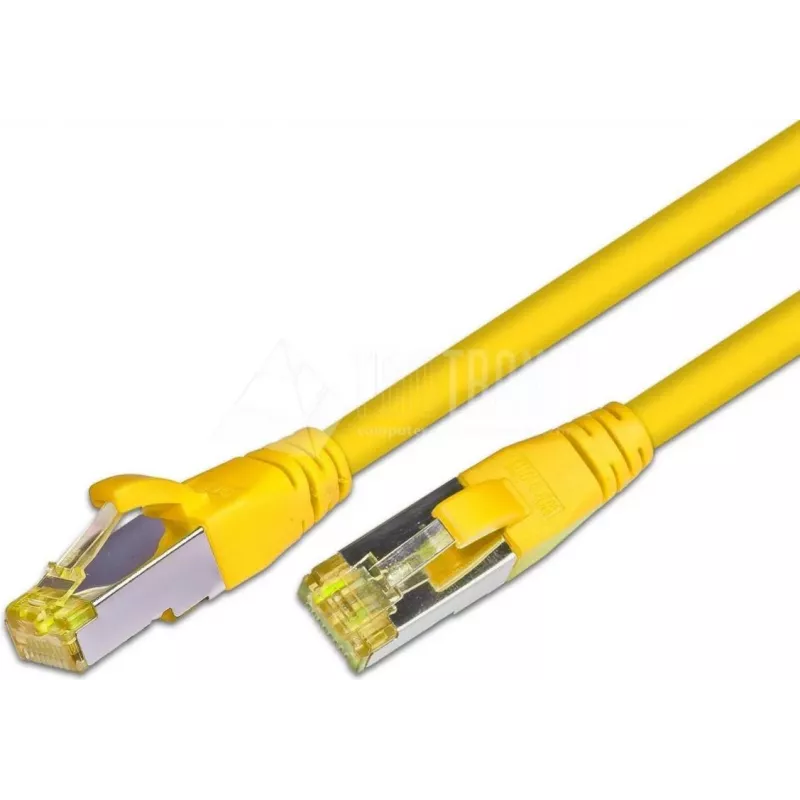

Wirewin KAT6A HQ patchkabel S/FTP LSOH geel 2m RJ45 (PKW-PIMF-KAT6A 2.0 GE)

The Wirewin KAT6A HQ Patch Cable stands out with its S/FTP shielding and LSOH jacket, delivering 10 Gigabit Ethernet performance without halogen emissions. The yellow 2-meter length is easy to identify in dense racks and meets the demands of data centers and office networks.

Highlights

• Category 6A performance up to 500 MHz
• S/FTP (PIMF) shielding for superior noise immunity
• LSOH jacket for low smoke and zero halogen
• Gold-plated RJ45 connectors for reliable contact
• Stranded copper conductors (AWG 26/7) for flexibility

In daily use

This patch cable connects servers, switches, and patch panels with a secure, high-speed link. The yellow colour simplifies cable management, while the stranded conductors allow tight bends without signal loss. The LSOH jacket makes it suitable for enclosed spaces where fire safety is a concern.

Full specifications

• Cable standard: Category 6A (Cat.6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair) / PIMF
• Connector type: RJ45 male to RJ45 male
• Cable length: 2.0 m
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Colour: Yellow
• Max bandwidth: 500 MHz
• Max data transfer rate: 10 Gbps (10GBASE-T)
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Wiring standard: TIA/EIA 568B
• Connector plating: Gold-plated contacts
• Outer diameter: 6.2 mm
• Flame retardancy: IEC 60332-1

Final note

Backed by a lifetime warranty, this cable is a durable choice for high-performance networking.
