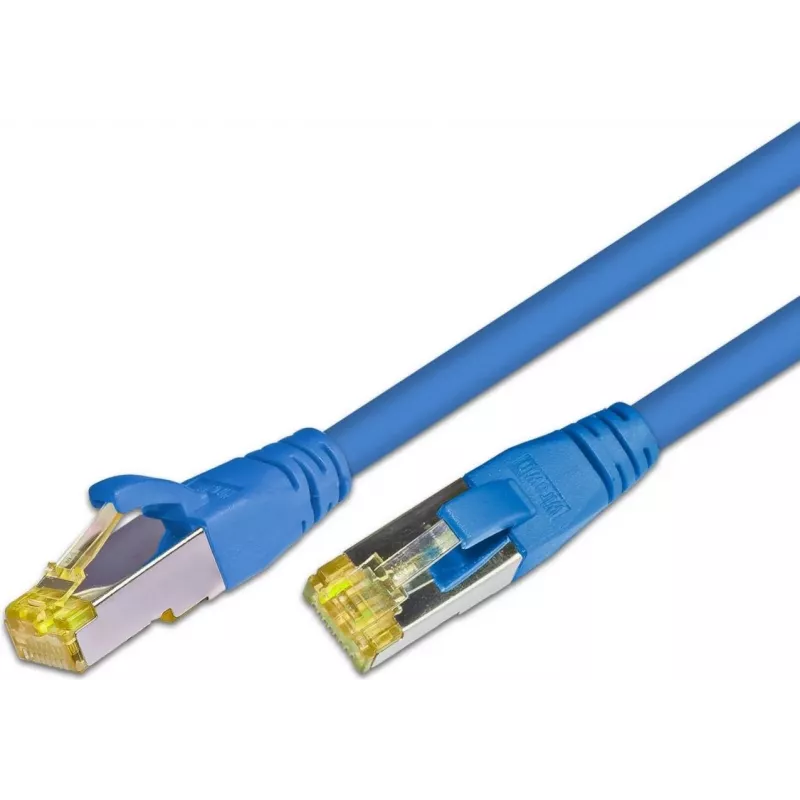

Wirewin PKW-PIMF-KAT6A 3.0 BL Cat6a S/FTP netwerk-patchkabel, 3 m, blauw

Network dropouts and slow file transfers can cripple productivity in any office or home setup. The SLIM WIREWIN Wirewin PKW-PIMF-KAT6A 3.0 BL Cat6a S/FTP patch cable eliminates these bottlenecks with a robust shielded design that guarantees 10 Gigabit Ethernet over 3 meters, even in electrically noisy environments.

Who is it for

IT administrators, network engineers, and power users who need dependable high-speed links between switches, routers, servers, and workstations. It is equally suited for data centers, server rooms, and structured cabling in commercial buildings where interference from power lines or adjacent cables is a concern.

Main features

• Cat6a performance with S/FTP shielding: braided outer screen plus individual foil on each pair (PIMF) for maximum EMI/RFI rejection.
• Supports 10GBASE-T up to 500 MHz bandwidth, ideal for bandwidth-hungry applications like 4K video streaming, large file transfers, and virtualization.
• Stranded copper conductors with PVC jacket for flexibility and durability in frequent patching scenarios.
• RJ45 male connectors on both ends, wired to TIA/EIA 568B standard, with gold-plated contacts for reliable connectivity.
• PoE, PoE+, and PoE++ compatible, allowing power and data over a single cable for IP cameras, access points, and VoIP phones.
• Blue jacket for easy identification and color-coding in dense installations.

Specifications

• Length: 3 m
• Category: Cat6a (Class EA)
• Shielding: S/FTP (S-STP) – braided outer shield + foil per pair
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor material: copper, stranded
• Jacket material: PVC
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, PoE++
• Compliance: RoHS

Tips

For best performance, avoid sharp bends and do not exceed the minimum bend radius of four times the cable diameter. When routing near power cables, maintain at least 30 cm separation to preserve signal integrity. Use cable ties or Velcro straps to manage slack without compressing the jacket.
