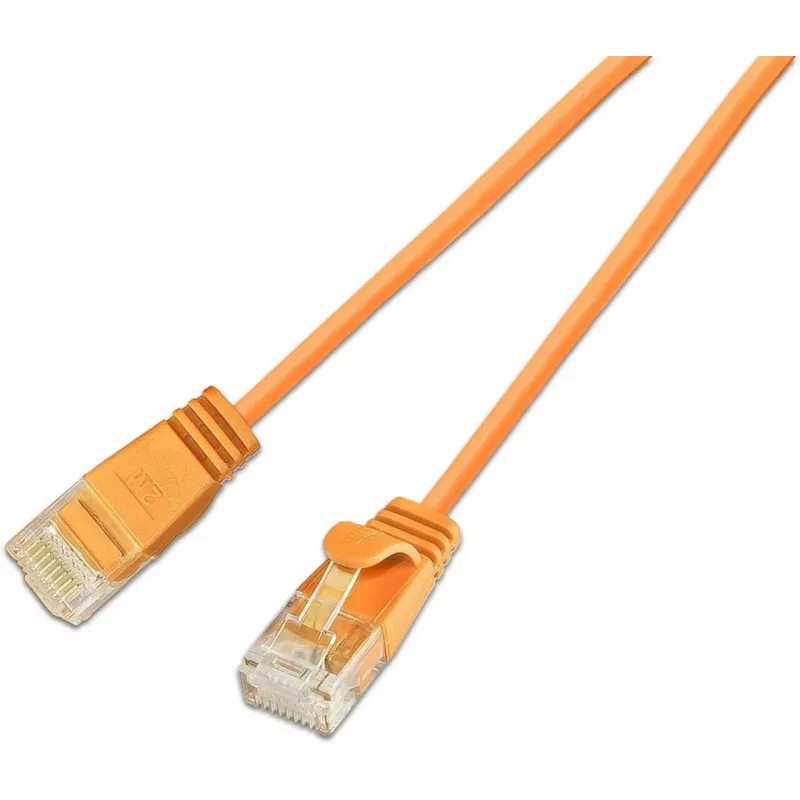

Wirewin SLIM KAT6A 10 Gigabit Light patchkabel rond, U/UTP, Ø 3,6 mm, oranje (SLIM-L-UU-K6A 10.0 OR)

This SLIM WIREWINE Cat6A patch cable combines 10 Gigabit Ethernet performance with a remarkably slim 3.6 mm round profile, making it ideal for high-density patching in data centers and server rooms. The unshielded U/UTP construction with 28 AWG stranded copper conductors keeps the cable lightweight and flexible without sacrificing signal integrity.

Highlights

• 10 Gigabit Ethernet (10GBASE-T) support with 500 MHz bandwidth
• Slim 3.6 mm outer diameter saves space in cable management
• Unshielded U/UTP design reduces weight and improves flexibility
• Gold-plated RJ45 connectors (50 µm) ensure reliable connections
• Supports PoE, PoE+, and 4PPoE/PoE++ for power delivery

In daily use

The 10-meter length provides ample reach for cross-connects and equipment links, while the orange jacket offers high visibility for easy identification. The cable meets ISO/IEC 11801 and TIA/EIA-568-C.2 standards, ensuring compatibility with all Cat6A systems.

Full specifications

• Cable length: 10.0 m
• Cable standard: Cat6a
• Cable shielding: U/UTP
• Conductor material: Copper
• Conductor gauge: 28 AWG
• Connector type: RJ45 Male (8P8C) on both ends
• Connector plating: 50µm Gold-plated
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Jacket material: PVC
• Outer diameter: 3.6 mm
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE/PoE++
• Application: Data Centers, Server Rooms, Office Networks, High-Density Environments

Final note

With its slim design and high performance, this cable is an excellent choice for modern network infrastructures where space is at a premium.
