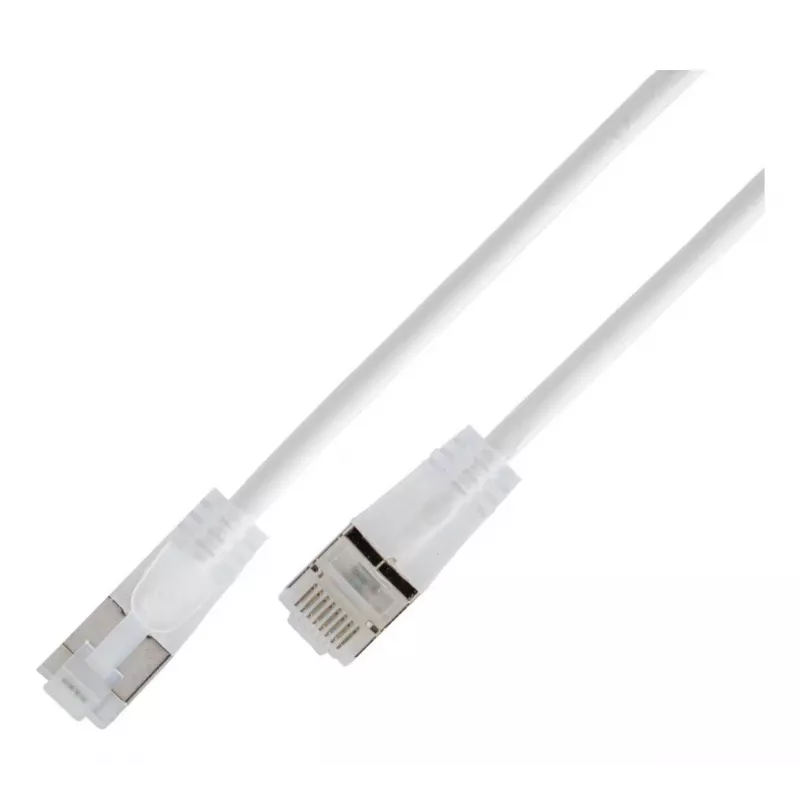

Wirewin SLIM KAT6A 10 Gigabit Light patchkabel, U/UTP, Ø 3,6 mm, wit, 0,25 m SLIM-L-UU-K6A 0.25 WT

In high-density data centers and server rooms, space is at a premium. This SLIM WIREWINE Cat.6A patch cable with a 3.6 mm diameter is built for such environments, delivering 10 Gigabit Ethernet performance in a compact, easy-to-route form. Its white LSZH jacket blends into cable management systems while meeting strict fire safety requirements.

Key specifications

• Cable type: Slim Ethernet Patch Cable, Cat.6A
• Length: 0.25 m
• Shielding: U/UTP (unshielded)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: 4x2 AWG 30/7 stranded copper
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, unshielded, molded snagless boots
• Wiring standard: TIA/EIA 568B
• Flammability rating: IEC 60332-1
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

The slim design reduces cable bulk, improving airflow and making cable management easier in dense racks. Despite its small size, it fully supports 10GBASE-T, ensuring high-speed connections for demanding applications. The LSZH jacket emits low smoke and no halogen in case of fire, enhancing safety in populated areas.

Ideal use cases

• High-density patch panels in data centers
• Server-to-switch connections in racks
• Workstation connections where space is limited
• Structured cabling systems requiring Cat.6A performance

Good to know

The cable is 0.25 m long, ideal for short, tidy connections. It is unshielded (U/UTP), so it is best used away from sources of electromagnetic interference. The white color helps with identification and aesthetics in visible cable runs.
