WISI universeel antennedoos DB 03 D 2-gats enkelvoudige doos 5 dB SAT/TV/radio

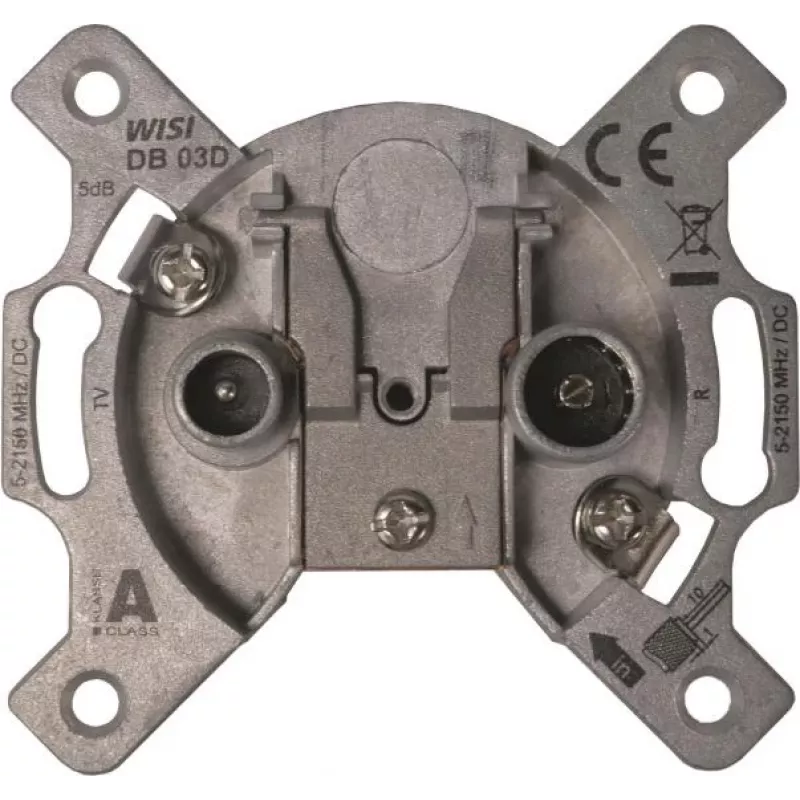

The WISI DB 03 D is a flush-mount universal antenna outlet engineered for modern in-wall installations where a single, clean connection point must serve satellite, terrestrial TV, and FM radio. Unlike basic outlets that only pass one band, this unit combines three dedicated outputs in a compact 2-hole design, with a defined 5 dB tap loss for balanced signal distribution in star-wired home networks. The die-cast metal chassis ensures long-term shielding stability, while the plastic cover blends into standard switch ranges.

Highlights

• Three independent outputs: SAT (F-connector), TV (IEC male), and Radio (IEC female)
• 5 dB attenuation (tap loss) for consistent signal levels across multiple outlets
• Full frequency coverage: 47–862 MHz (TV), 87.5–108 MHz (FM), 950–2200 MHz (SAT)
• Class A shielding per EN 50083-2 for interference-free reception
• DC passage on SAT output to power LNB or multiswitch
• Flush-mount installation with standard 2-hole spacing (60 mm)
• 75 Ohm impedance, return loss > 10 dB

In daily use

Installed behind a TV or in a media wall, the DB 03 D keeps cable runs tidy: one coaxial drop feeds the outlet, and the three front connectors let you connect a satellite receiver, a terrestrial TV, and an FM tuner simultaneously. The 5 dB tap loss is ideal for apartments or houses with multiple outlets, ensuring each room receives adequate signal without overloading the distribution amplifier. The SAT output passes DC, so no separate power inserter is needed for the LNB. The die-cast housing and snap-on cover withstand repeated plugging and cleaning without degrading shielding.

Full specifications

• Outlet type: Single outlet (Stichdose) with three outputs
• Attenuation (tap loss): 5 dB
• Frequency range TV: 47–862 MHz
• Frequency range Radio: 87.5–108 MHz
• Frequency range SAT: 950–2200 MHz
• Output connectors: TV IEC male, Radio IEC female, SAT F-connector
• Shielding class: Class A (EN 50083-2)
• DC passage (SAT): Yes
• Mounting type: Flush-mount (Unterputz)
• Return loss: > 10 dB
• Impedance: 75 Ohm
• Input connection: Coaxial cable screw/clamp terminal
• Housing material: Die-cast metal chassis, plastic cover
• Application: DVB-T/T2, FM, DVB-C, DVB-S/S2
• Standard compliance: EN 50083-4

Final note

The WISI DB 03 D is a professional-grade solution for integrated satellite and terrestrial distribution, delivering reliable performance and easy installation in any modern home or MDU.
