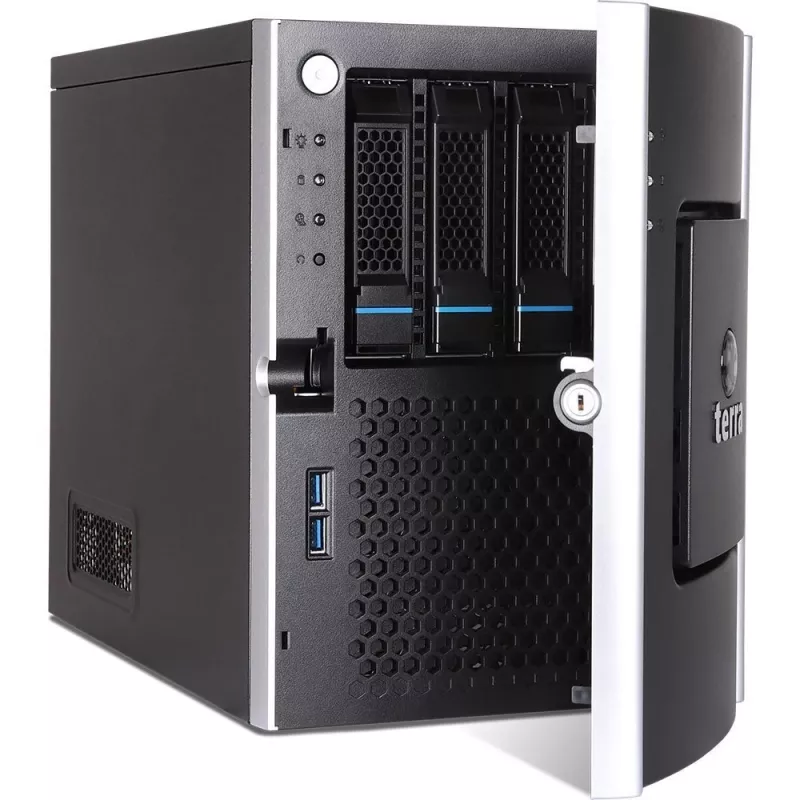

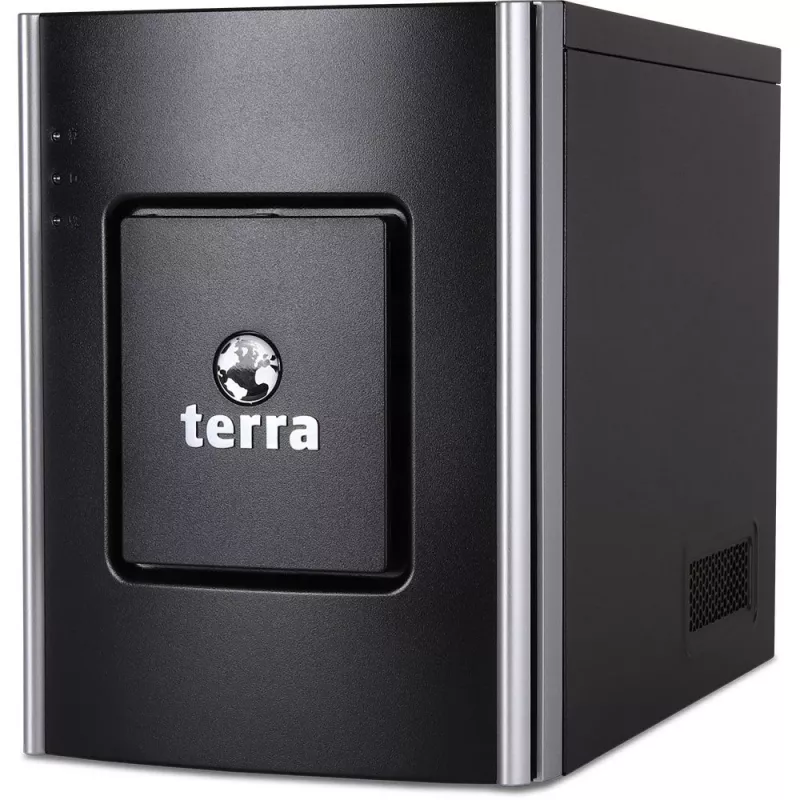

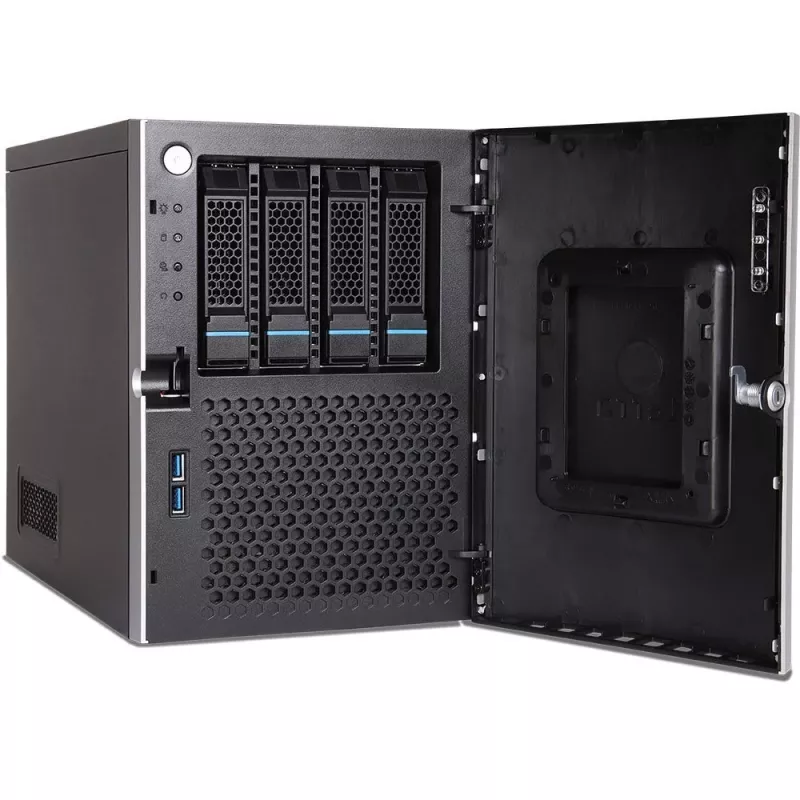

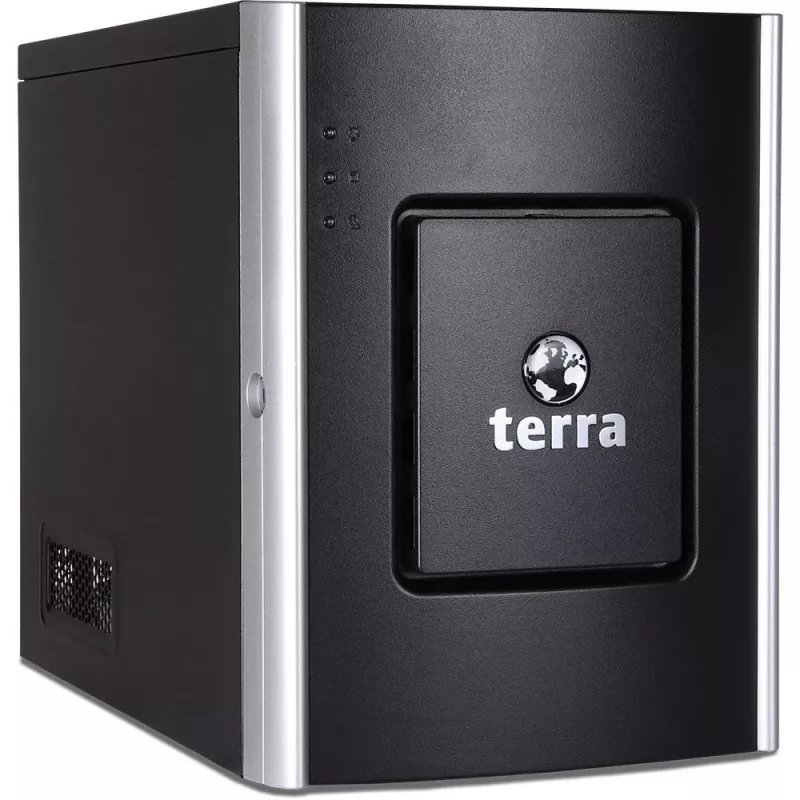

WORTMANN AG TERRA MINISERVER G6 server, Intel Xeon E 6-core 3,5 GHz

The WORTMANN AG TERRA MINISERVER G6 is a tower server powered by an Intel Xeon E-2486 6-core processor at 3.5 GHz. It comes with 32 GB DDR5 ECC UB RAM and two 960 GB SATA SSDs, and supports RAID 1.

Key features

• Intel Xeon E-2486 6-Core 3.5 GHz processor
• 32 GB DDR5 ECC UB RAM (max 64 GB)
• 2x 960 GB SSD SATA, total 1920 GB
• RAID 1 support
• Integrated Ethernet LAN with Intel I210-AT2 controller
• Asus P13R-I motherboard
• Remote administration
• Tower chassis

Specifications

• Brand: Wortmann
• MPN: 1100424
• Processor: Intel Xeon E-2486, 6-Core, 3.5 GHz, 18 MB L3 cache
• Processor socket: LGA1700
• Motherboard chipset: Intel C262
• Number of processors: 1
• Memory: 32 GB DDR5 ECC UB RAM, 2 slots, max 64 GB, dual-channel
• Storage: 2x 960 GB SSD SATA 6Gb/s, total 1920 GB
• Internal drive bays: 4x 3.5"/2.5", 2x 2.5"
• RAID levels: RAID 1
• Optical drive: optional via USB (external)
• Graphics: Aspeed AST2600, 64 MB, VGA port
• Network: 2x 1 GbE (RJ45), Intel I210-AT2
• Interface: 1x VGA, 2x LAN (RJ-45), 1x Mgmt LAN, 2x USB 3.2 Gen2, 4x USB 3.2 Gen1 (2x front), option: 1x serial
• Expansion: 1x PCIe 5.0 x16 @ x16
• Power supply: 450 W, 100-240 V~, 6-3 A, 50-60 Hz
• Cooling: active
• Operating temperature: 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
• Recommended humidity: 10-75% (non-condensing)
• Dimensions: 27 cm height, 20 cm width, 34 cm depth
• Certification: CE, production according to ISO9001 in Germany
• Operating system: no operating system
• Compatible operating systems: Windows Server 2025, Windows Server 2022, Windows Server 2019
• Mouse included: optional
• Keyboard form factor: optional
• Localization: International
