Wyrestorm 4K UHD HDBaseT-extenderset met 2-weg PoH en bidirectionele IR & RS-232

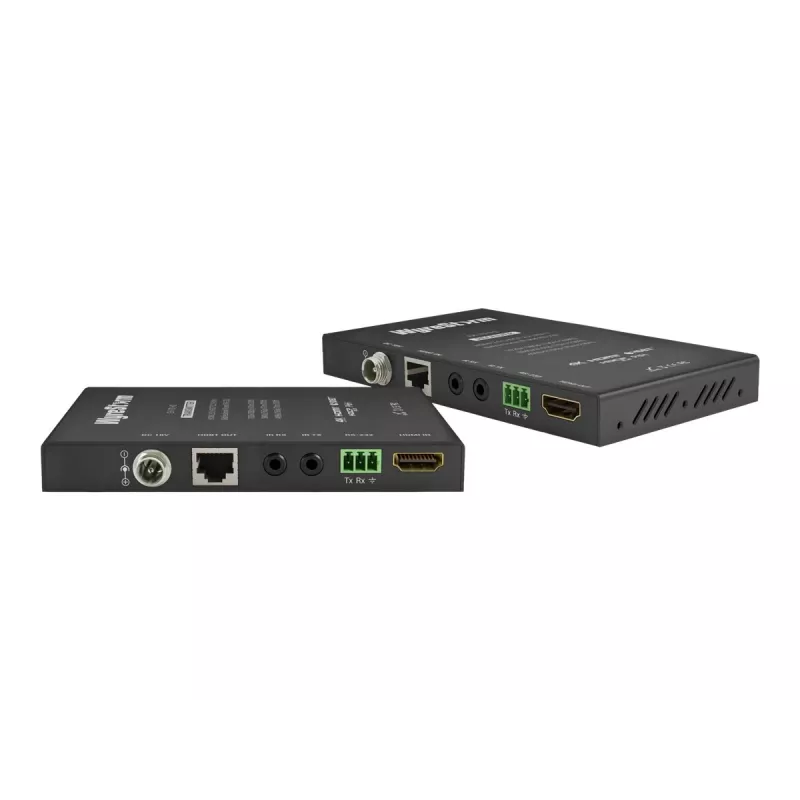

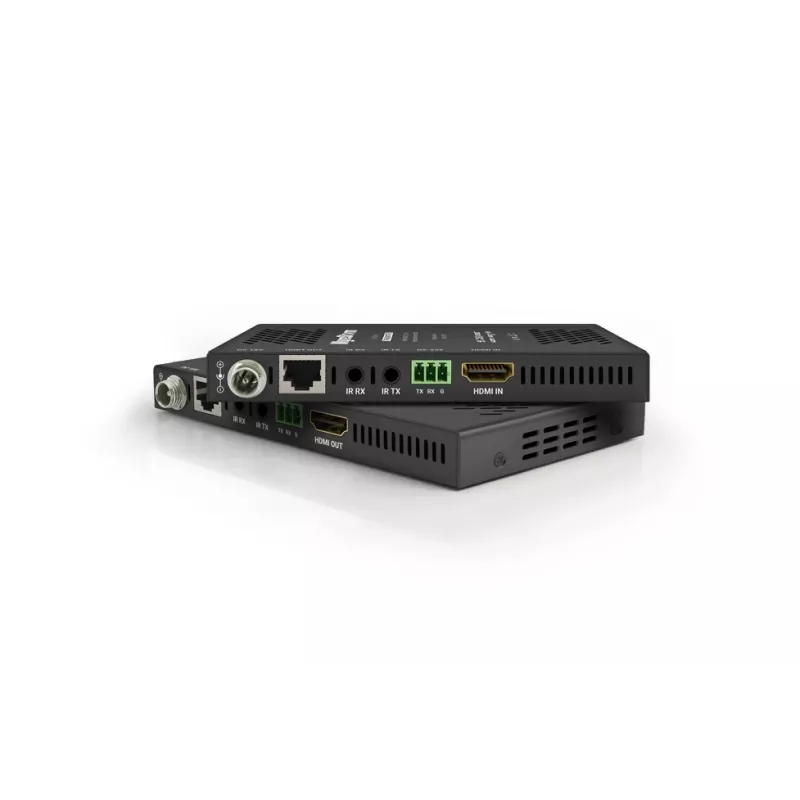

The Wyrestorm EX-70-H2 is a professional-grade 4K UHD HDBaseT extender set that delivers uncompressed video, audio, and control signals over a single Cat6/6a/7 cable. Supporting 2-way Power over HDBaseT (PoH), this set allows power to be supplied from either the transmitter or receiver, simplifying installation. With bidirectional IR and RS-232 pass-through, it integrates seamlessly into existing control systems.

Advantages

This extender set offers exceptional flexibility and reliability for AV installations. The 2-way PoH eliminates the need for local power at both ends, reducing cable clutter and installation time. HDBaseT Class B technology ensures stable transmission up to 70m for 1080p and 35m for 4K UHD, making it ideal for large venues. The aluminum chassis provides durability and effective heat dissipation.

Suitable for

• Commercial AV installations (conference rooms, boardrooms)
• Digital signage and retail displays
• Home theater setups requiring long cable runs
• Educational and corporate environments

Key specifications

• Max Video Resolution: 4K UHD (3840x2160p @30Hz 4:4:4 8-bit / 4K @60Hz 4:2:0 8-bit)
• Max Data Rate: 10.2 Gbps
• HDBaseT Class: B
• Transmission Distance (1080p): 70m / 230ft (Cat6/6a/7)
• Transmission Distance (4K UHD): 35m / 115ft (Cat6/6a/7)
• Power over HDBaseT: 2-Way (TX to RX or RX to TX)
• HDCP Compliance: HDCP 2.2 / HDCP 1.4
• Audio Formats: 2ch PCM, Multichannel LPCM, DTS-X, Dolby Atmos, DTS-HD Master Audio, Dolby TrueHD
• Control: Bidirectional IR & RS-232
• CEC Support: Yes (Pass-through)

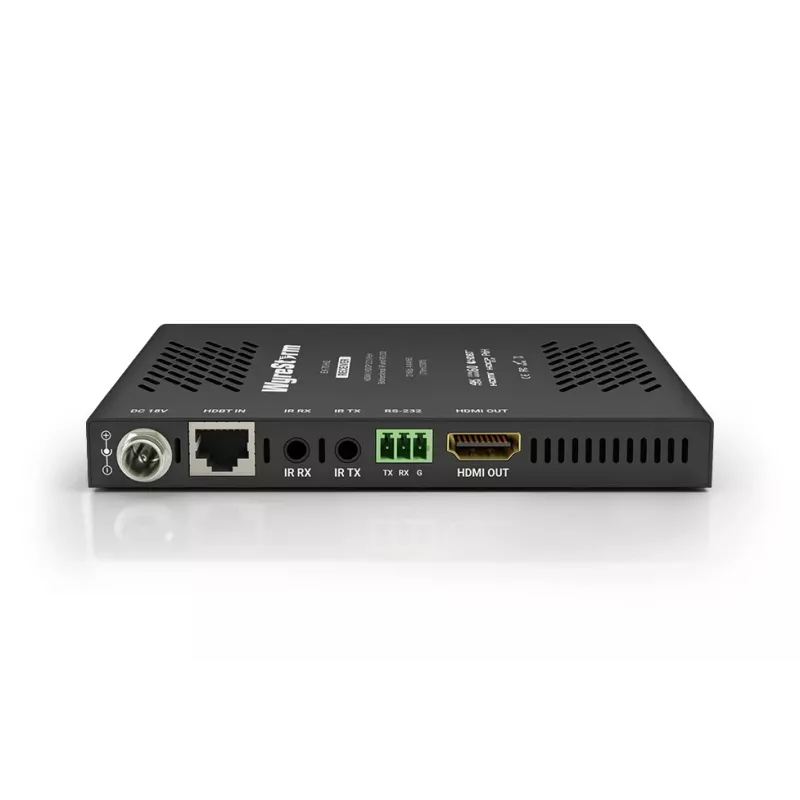

• Video Inputs (TX): 1x HDMI In
• Video Outputs (RX): 1x HDMI Out
• HDBaseT Ports: 1x RJ45 (TX & RX)
• Control Ports: 1x IR In, 1x IR Out, 1x RS-232 (3-pin Phoenix)
• ESD Protection: ±8kV Contact, ±15kV Air
• Chassis Material: Aluminum
• Power Supply: 12V DC 2A (Included)

Recommendations

For optimal performance, use high-quality Cat6a or Cat7 cables. Ensure proper termination and avoid sharp bends. The extender supports PoH, but verify that the power source matches the required voltage. For RS-232 control, refer to the device's pinout.
