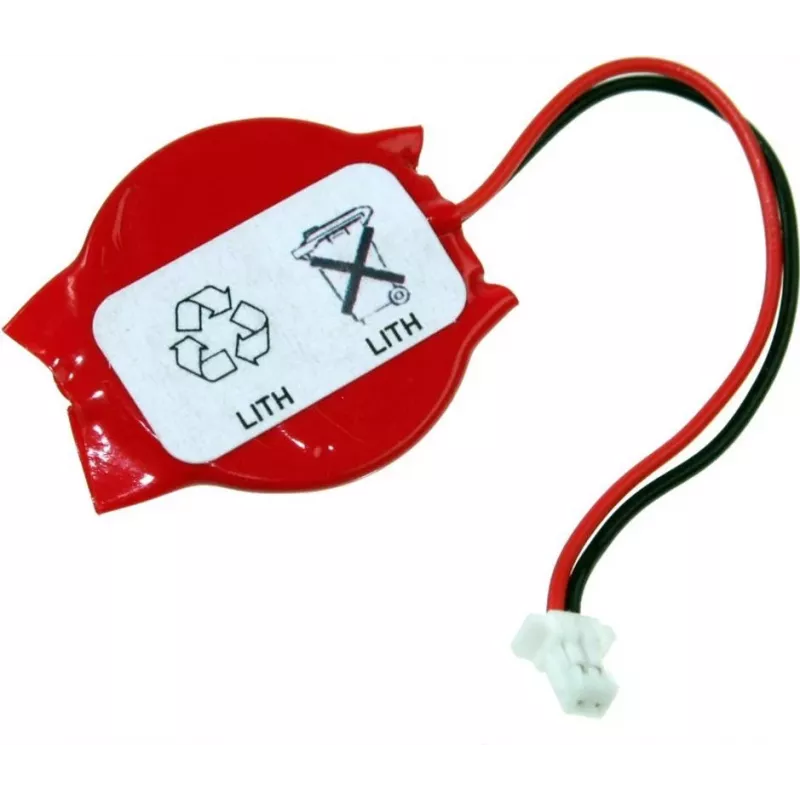

XCELL CR2016 lithium knoopcel met 2-pins aansluiting, 3 V, 75 mAh, 1-pack 125756

For technicians and engineers working on memory backup circuits, real-time clocks, or compact portable devices, this XCELL CR2016 lithium button cell offers a dependable power source with a convenient 2-pin connector for direct PCB mounting. The cell delivers 3 V nominal voltage and 75 mAh capacity, ensuring stable operation in industrial electronics and small gadgets.

Key specifications

• Battery size: CR2016
• Chemistry: Lithium Manganese Dioxide (LiMnO2)
• Nominal voltage: 3 V
• Nominal capacity: 75 mAh
• Termination: 2-pin connector with wires
• Diameter: 20 mm
• Height: 1.6 mm
• Operating temperature: -20°C to +70°C
• Rechargeable: No
• Pack size: 1 piece

Why choose it

The integrated connector simplifies assembly, eliminating the need for separate battery holders. Its wide operating temperature range and long shelf life make it suitable for demanding environments.

Ideal use cases

• Memory backup for CMOS and RTC modules
• Small portable electronics and wearables
• Industrial sensors and control boards

Good to know

This cell is not rechargeable and should be disposed of according to local regulations for lithium batteries.
