Xiaomi Mi Router 4C, wit

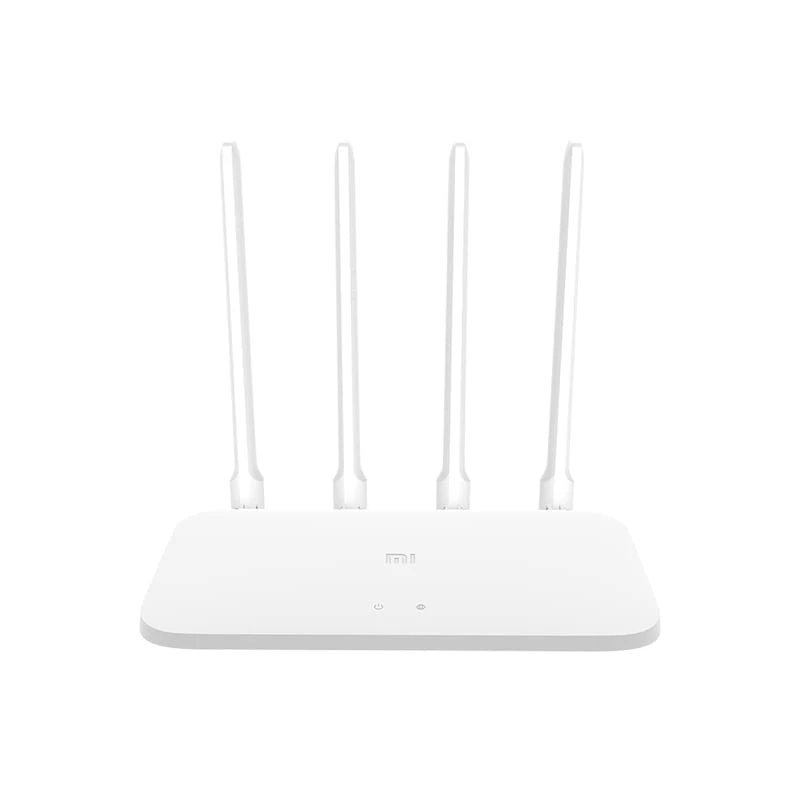

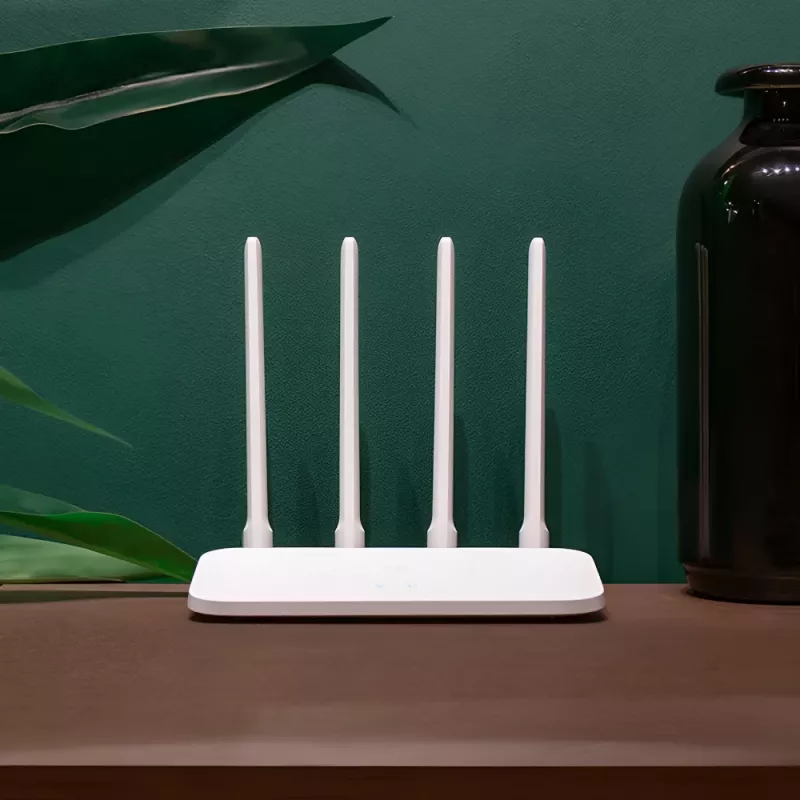

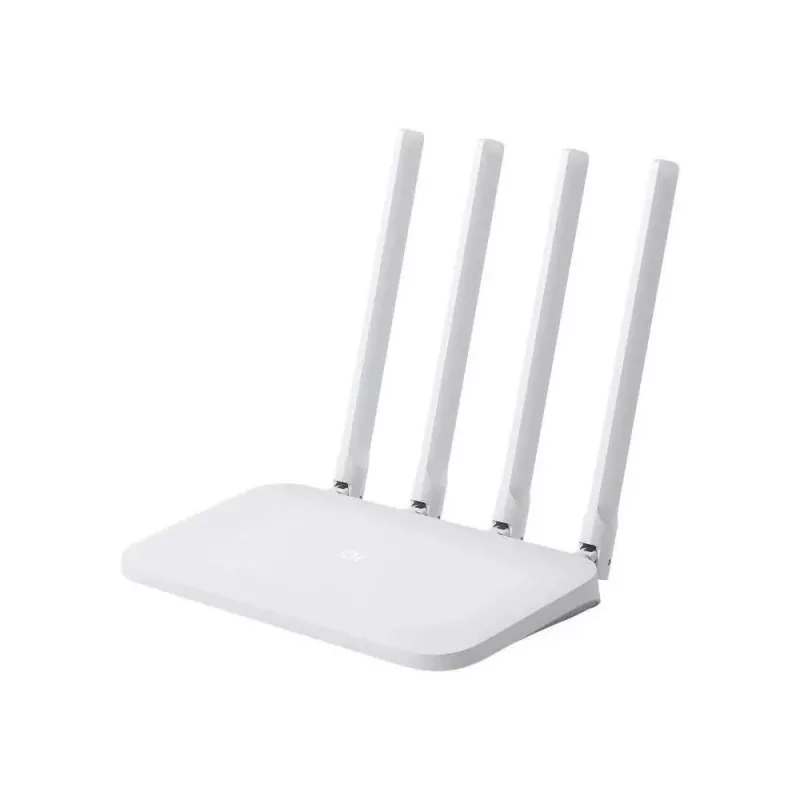

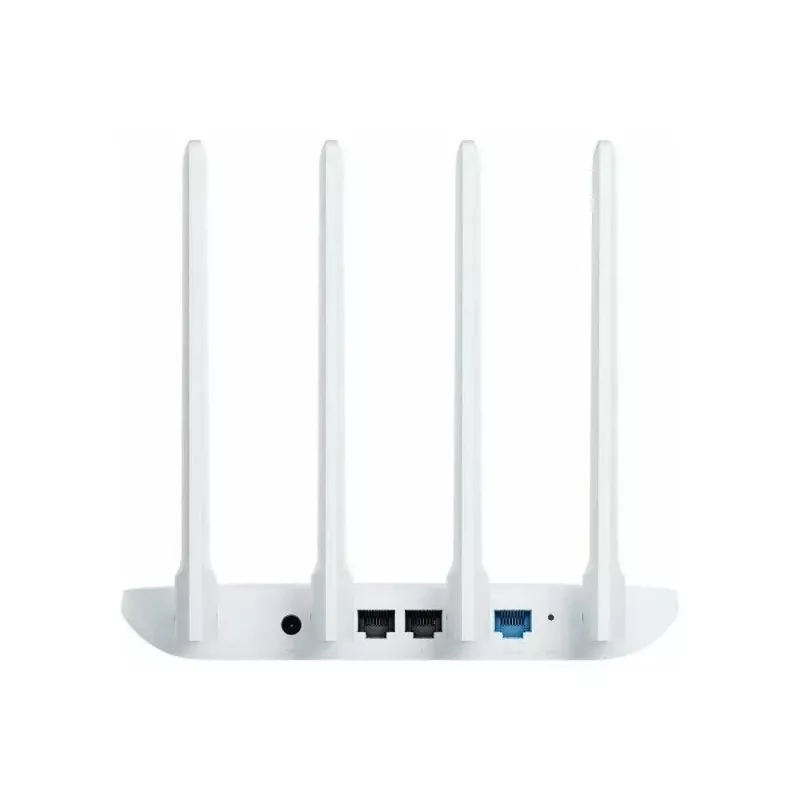

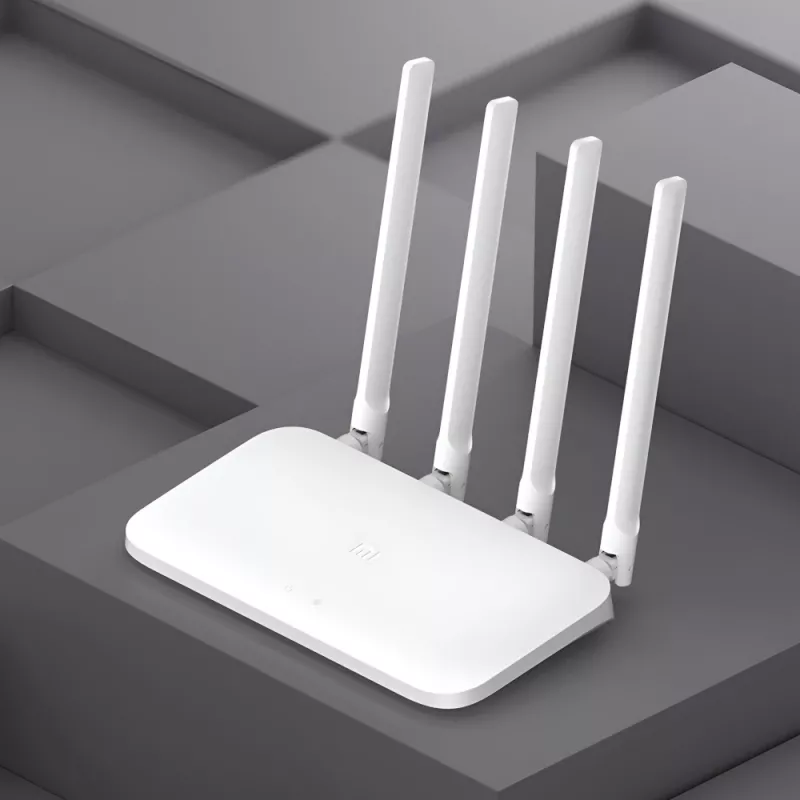

The Xiaomi Mi Router 4C is a compact N300 class desktop wireless router with WiFi 4 (802.11 b/g/n) and three Fast Ethernet ports (one WAN and two LAN, up to 100 Mbps). It features four external omnidirectional antennas with a signal gain of 5dBi and 64MB of memory for stable data transmission. The stylish white plastic and aluminium body suits any modern interior.

Key features

• Wireless speeds of up to 300Mbps
• 4 omnidirectional external antennas with 5dBi signal gain
• 64MB memory
• Smart unauthorized access prevention
• Wi-Fi optimization
• Smart control via app
• Supports up to 64 wireless connections
• Can handle small office needs (up to two desktops)

Specifications

• Brand: Xiaomi
• MPN: DVB4231GL
• Product colour: White
• Material: Plastic, aluminium
• Antenna count: 4
• Supported standards: IEEE 802.11 b/g/n; IEEE 802.3/3u
• Processor: MT7628DA
• Internal memory: 64MB DDR2
• ROM: 16MB NorFlash
• 2.4GHz Wi-Fi: 2x2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)
• 5GHz Wi-Fi: Not supported
• Signal band: 2.4GHz
• Antennas: 4x external single band antennas
• 2.4Ghz: Integrated LNA and PA
• Heat dissipation: Natural heat dissipation
• Operating humidity: 10%–90% RH (no condensation)
• Storage humidity: 5%–90% RH (no condensation)
• Modulation: 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps), 11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps), 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
• Rate set: MCS0 to MCS15
• Reception sensitivity: 11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm
• Operating system: Mi WiFi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software
• Wireless security: WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding
• Management application: Supports web, iOS, and Android
• Dimensions: 18.8 x 10 x 17.5 cm
