XLR-aansluitdoos Kindermann 7441000416

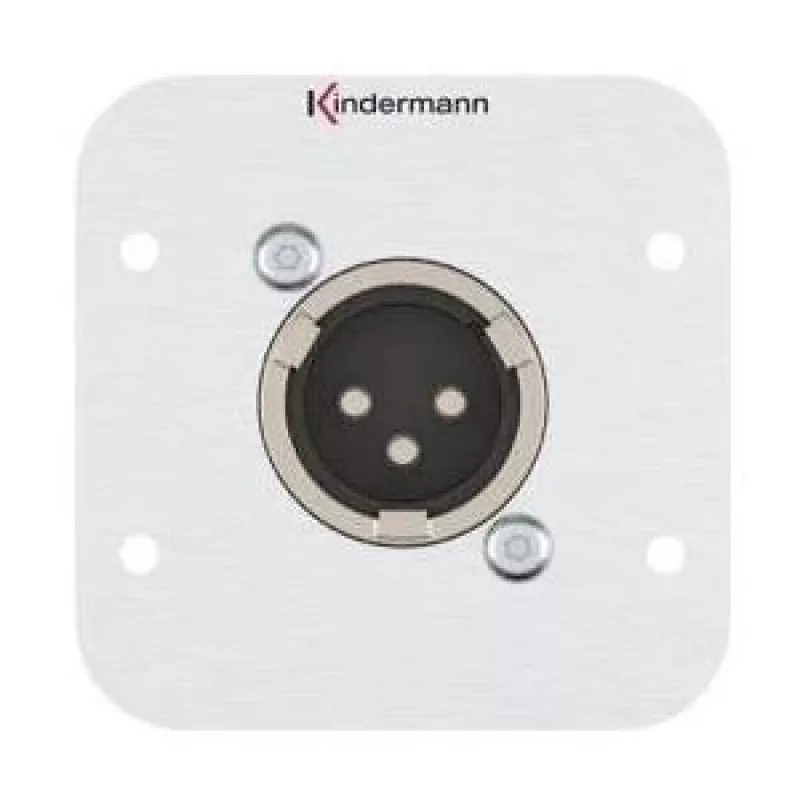

Socket outlet XLR Kindermann 7441000416 is an adapter plate with a 3-pin XLR plug layout and a Neutrik female socket. The unit is built into a full-size plate made of anodized aluminium and provides a soldering connection for secure wiring. Its compact dimensions (54 × 32 × 54 mm) and aluminium finish make it suitable for both fixed installations and portable audio setups.

Advantages

The aluminium full-size plate offers mechanical durability and corrosion resistance while remaining lightweight. The Neutrik female XLR socket supports standard 3-pin professional audio connections and the soldering terminals allow for reliable, low-resistance wiring. The single-module format and standard dimensions simplify integration into panels, racks, or custom housings.

Suitable for

Key specifications

How to use

Mount the full-size plate into the appropriate cutout or mounting point in your panel or enclosure. Solder the audio cables to the designated XLR pins following standard pin assignments (pin 1 = ground, pin 2 = hot, pin 3 = cold). After soldering, check connections for continuity and secure the plate with screws. Verify correct polarity and shielding before connecting to audio equipment.

Recommendations

Use appropriate soldering tools and ventilation when making connections. For permanent installations, tighten mounting screws to prevent movement and periodically inspect the socket for wear or loose wiring. Follow standard audio wiring conventions to ensure compatible and noise-free operation.
