XLR-koppeling ShiverPeaks BS55063 basismodel — audio-connector-koppeling, 3-polige XLR-compatibiliteit

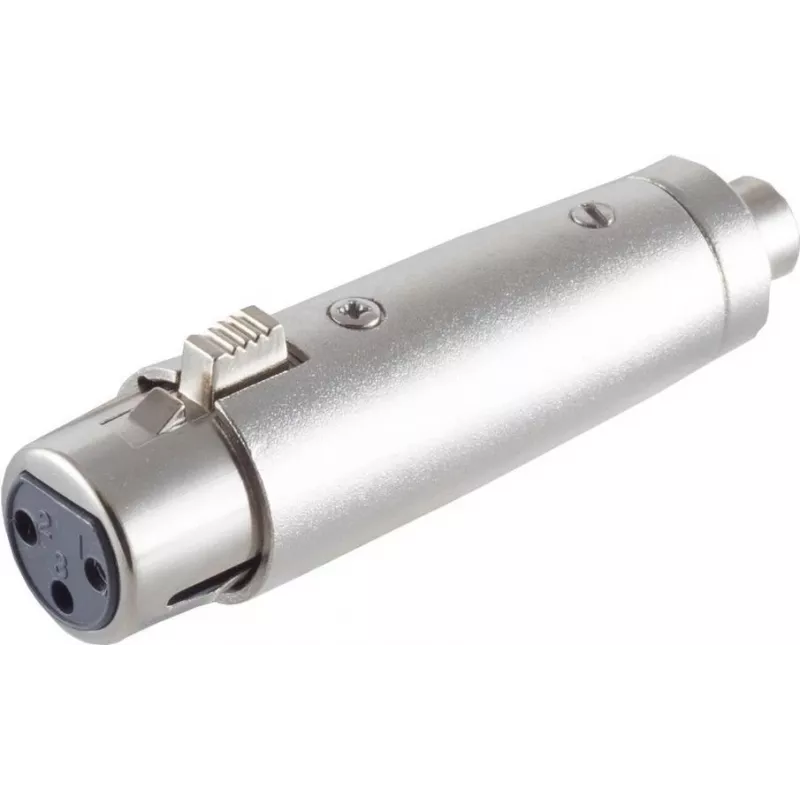

ShiverPeaks BS55063 basic model is an XLR coupling designed to connect standard 3-pin XLR audio cables and devices. As a passive inline connector it provides a straightforward mechanical and electrical join for balanced microphone and line-level signals. The coupling is intended for temporary or semi-permanent joins where maintaining signal continuity and secure contact is required, such as live sound patching, stage setups and studio cable extensions.

Advantages

The coupling offers a compact and neutral solution for joining two 3-pin XLR connectors without altering signal polarity. Its passive design requires no power or configuration and keeps cable runs continuous while minimizing signal loss and contact issues when installed correctly. The basic model focuses on functional reliability and compatibility with industry-standard XLR wiring and connector dimensions.

Suitable for

• Extending microphone or line-level cable runs in live and studio environments
• Temporary patch points on stage or in rehearsal spaces
• Linking two balanced XLR cables to reach distant equipment
• Quick on-site repairs or cable joins during events

Key specifications

• Connector type: 3-pin XLR coupling for balanced audio
• Function: passive mechanical and electrical join for XLR connectors
• Compatibility: standard 3-pin XLR male and female connectors
• Signal: balanced microphone and line-level signals
• Construction: compact inline form factor suitable for cable runs and patching

How to use

To use the coupling, align the pins of one XLR connector with the corresponding sockets of the coupling and insert until it seats securely, then repeat with the second cable or device. Ensure proper cable strain relief to avoid stressing the coupling and verify signal continuity and polarity after installation. For stage or touring environments, check that the coupling remains seated and protected from mechanical strain during use.

Recommendations

Use in dry and mechanically protected conditions where possible; avoid exposing the coupling to heavy moisture or direct corrosive contaminants. For repeated installations in high-traffic or high-vibration environments consider securing the joined cables with tape or straps to reduce connector wear.
