Zalman Reserator5 Z36 Black, CPU Liquid Cooler 360mm

Fully compatible with the latest high performance processors of Intel and AMD Ryzen
It is fully compatible with the latest intel's processors as well as AMD Ryzen. Power management technology for each processor is seamless, so you don't have to worry about compatibility issues.

Convenient control of individual RGB LED colors and effects via dedicated software
- Control your entire addressable RGB devices through dedicated software
- Personalize your system's visual effect

5V 3-pin Addressable RGB
Exclusive design of ARGB effect from Zalman. Control your ARGB with motherboard that supports 3-pin 5V RGB SYNC.

Dual blade water pump
Dual blade water pump is highly effective on increasing flow of coolant to maximize cooling performance.

Innovative dual blade water pump design for optimal cooling
Dual blade water pump design provides more and faster circulation of coolant for maximum cooling performance (Up to 0.85L/Min).
- Independent operation of intake and exhaust prevents pump overload
- Extend the life of the pump
- Improved cooling performance by minimizing residual fluid inside
- Reduced noise due to pump operation at low RPM
- Fully-enclosed structure design prevents leakage

Pure copper
Cools down the CPU temperature more effectively.

Micro-skived Fin Cu Base
0.15 mm Micro-skived Fin is applied to secure the maximum heat dissipation area (220 cm2).

Dual channel PWM Control
Unlike other liquid coolers that operate at full speed, DCPC (Dual Channel PWM Control) can control speed according to user's custom optimization settings. Precise PWM control fans and pumps to minimize noise, maximize airflow.

Sturdy Braided Nylon Sleeve and Rubber Tube
Durable, flexible design against temperature fluctuation and high pressures.

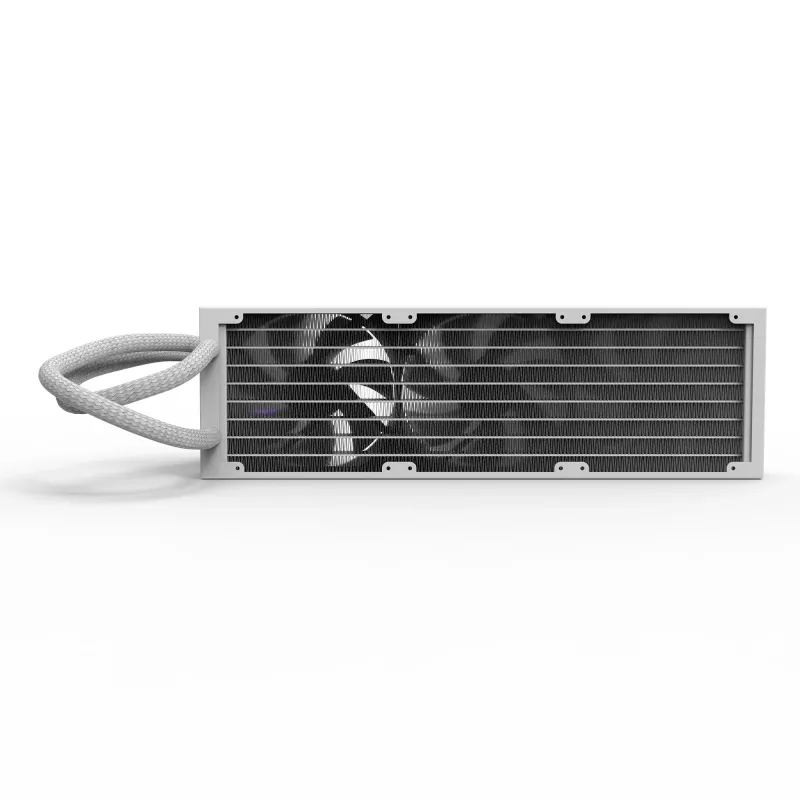

Aluminum Radiator with Maximum Heat Dissipation Area
- Heat dissipation fins in aluminum radiator provides great airflow
- Fast cooling of coolant
- Pull and push set up for maximized air flow

Mounting holes on both sides
For easy installation.

Fan blade design
- Minimized noise level and vibration
- Optimized air flow and high air pressure

Long life-span, EBR bearing
EBR bearing prevents dust from entering into a housing and provides more stable, low-noise, and durable cooling.

Specificaties
Model: Reserator5 Z36 (Black)

Pump
Dimensions (l x w x h): 82 x 82 x 40 mm
Materials: PPS, PC, Pure Copper, Pure Aluminum
Speed: 1.000 ~ 2.100 RPM
Bearing Type: Ceramic Bearing
Water Flow: Min. 0.7L/min Max. 0,85L/min
Rated Voltage: 12 V
Rated Current: 0.35 A
Power Consumption: 4.2 W

Radiator
Dimensions: 120 x 397 x 27 mm
Materials: Pure Aluminum

Fan
Dimensions: 120 mm
Bearing Type: EBR-lager
Speed: 800 ~ 2.000 RPM
Max.Noise Level: 37dB(A)
Max. Air Pressure: 2.92 mm H2O
Life Span: 50.000 uur
Connector type: 4 Pin
Control Method: PWM-besturing
Rated Voltage: 12 V
Rated Current: 0.35 A
Power Consumption: 4.2 W
Thermal Compound: ZM-STC8
Socket Compatibility Intel: LGA1200/115X/2011/2011-V3/2066 AMD: AM4/AM3+/AM3/FM2+/FM2

How to use

Install the radiator in a compatible case position that supports a 360 mm radiator using the mounting holes on both sides. Mount the pump/block onto the CPU following the included bracket instructions for the matching socket and ensure the micro-skived copper base contacts the CPU surface with the supplied thermal compound. Connect the pump and fan to motherboard headers: pump to 4-pin/PWM and ARGB to a 5V 3-pin header for lighting control. Use the motherboard software or supported controller to configure fan curves and ARGB effects.

Recommendations

For reliable performance, verify case clearance for a 360 mm radiator before purchase, ensure a 5V 3-pin ARGB header if you want synchronized lighting, and set custom PWM curves in BIOS or software to balance cooling and noise. Periodically check fittings and tubing for secure connections and maintain good case airflow with intake and exhaust fans.

Belangrijkste kenmerken

High-performance Intel and AMD Ryzen desktop CPUs
Gaming and content-creation PCs requiring consistent thermal management
Systems with 360 mm radiator mounting space
Builds using 5V 3-pin addressable RGB headers for lighting synchronization
Model: Reserator5 Z36 (Black)
Radiator dimensions: 120 x 397 x 27 mm; material: pure aluminum
Pump dimensions: 82 x 82 x 40 mm; materials: PPS, PC, pure copper, pure aluminum
Pump speed: 1,000–2,100 RPM; water flow: 0.7–0.85 L/min; bearing: ceramic
Fan: 120 mm; speed: 800–2,000 RPM; max noise: 37 dB(A); max air pressure: 2.92 mm H2O; bearing: EBR; life span: 50,000 hours
Connectors: fan 4-pin PWM; ARGB: 5V 3-pin
Rated voltage: 12 V; pump rated current: 0.35 A; pump power consumption: 4.2 W
Thermal compound included: ZM-STC8
Socket compatibility: Intel LGA1200/115x/2011/2011-v3/2066; AMD AM4/AM3+/AM3/FM2+/FM2

Specificaties

Aantal ventilatoren

3 fan(s)

Breedte

397 mm

Breedte pomp

8.2 cm

Breedte radiator

39.7 cm

Diepte

120 mm

Diepte pomp

8.2 cm

Diepte radiator

12 cm

Geluidsniveau

37 dB

Geluidsniveau ventilator (max.)

37 dB

Gemiddelde tijd tot falen ventilator (MTTF)

50000 h

Geschikte locatie

Chipset

Hoogte

27 mm

Hoogte koeler

2.7 cm

Hoogte pomp

4 cm

Koelvloeistofcapaciteit

0.85 L

Lagertechnologie pomp

Ceramic bearing

Materiaal

Aluminium, Copper

Materiaal buis

Nylon

Maximale luchtdruk

2.92 mmH2O

Ondersteunde processorsockets

LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+

Pompspanning

12 V

Pompstroom

0.35 mA

Productkleur

Black

PWM-ondersteuning (pulsbreedtemodulatie)

Yes

Spanning ventilator

12 V

Stroomsterkte ventilator

0.35 A

Stroomverbruik pomp

4.2 W

Stroomverbruik ventilator

4.2 W

Toerental pompmotor

2100 RPM

Toerental pompmotor (max.)

2100 RPM

Toerental pompmotor (min.)

1000 RPM

Ventilatoraansluiting

4-pin

Ventilatordiameter

12 cm

Ventilatorsnelheid (max.)

2000 RPM

Ventilatorsnelheid (min.)

800 RPM
