Zalman Z9 Iceberg ATX mid tower PC-behuizing, wit ventilator midi tower

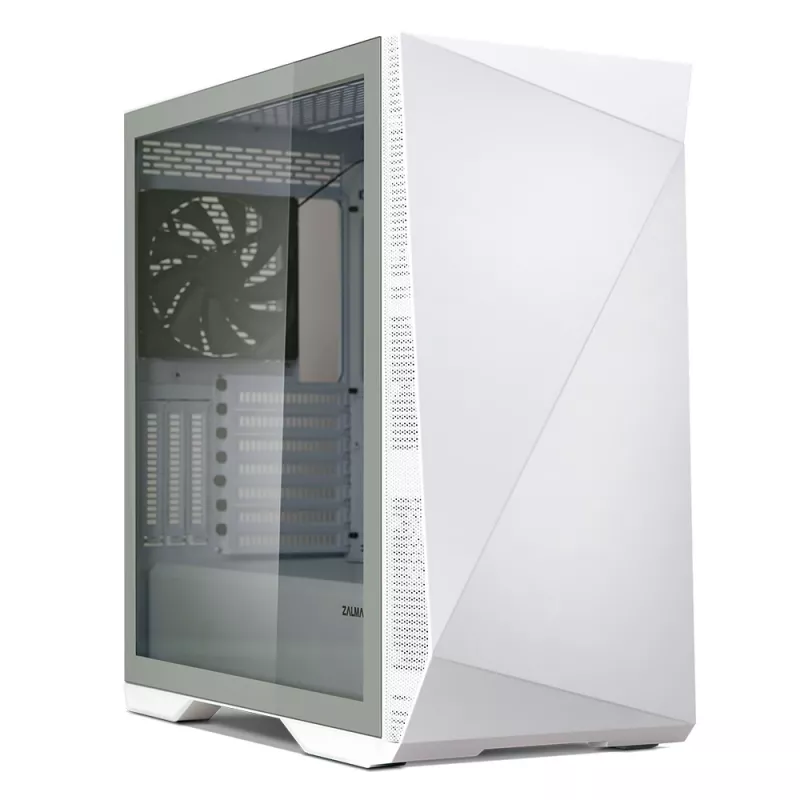

The Zalman Z9 Iceberg White is an ATX mid-tower PC case designed for efficient airflow and flexible component installation. It features a simple, distinctive white front panel, a 4 mm tempered glass side panel and comes with front and rear 140 mm fans pre-installed. The case supports multiple motherboard sizes and offers space for long graphics cards, tall CPU coolers and various radiator configurations.

Advantages

The chassis is built for optimized air intake and cooling, with multiple mounting positions for fans and radiators. A pre-installed VGA holder improves graphics card stability, and the tempered glass side panel provides a clear view of internal components. The top I/O includes modern ports such as USB 3.0, USB 2.0 and a USB 3.1 Gen2 Type-C for contemporary connectivity.

Suitable for

• Gaming PC builds with mid-to-large GPUs
• Workstations requiring multiple storage drives (2.5" and 3.5")
• Systems that need strong airflow and liquid cooling radiators
• Custom builds where component visibility is desired

Key specifications

• Model: Z9 Iceberg White
• Form factor: ATX Mid-Tower
• Dimensions (D x W x H): 473 x 245 x 496 mm
• Weight: 9.6 kg
• Materials: Plastic, Steel, 4 mm Tempered glass side panel
• Motherboard support: E-ATX, ATX, Micro-ATX, Mini-ITX
• Maximum GPU length: 390 mm
• Maximum CPU cooler height: 185 mm
• Maximum PSU length: 270 mm
• PCI expansion slots: 7 (including 3 vertical slots, 65 mm)
• Drive bays: supports 2.5" and 3.5" drives (configurable bays as specified by manufacturer)
• Included fans: Front 1 x 140 mm, Rear 1 x 140 mm
• Fan support: Front: up to 3 x 120 mm / 3 x 140 mm / 2 x 200 mm (25 mm height); Top: 3 x 120 mm or 2 x 140 mm; Rear: 1 x 120 mm or 1 x 140 mm
• Radiator support: Front/Top: 120/140/240/280/360 mm; Rear: 120/140 mm
• I/O ports: USB 3.0 x2, USB 2.0 x2, USB 3.1 Gen2 Type-C x1, LED button, Power with HDD LED, Reset, Headphone and Microphone jacks

How to use

Install the chosen motherboard into the case standoffs, route power and data cables through the provided cutouts, and mount storage drives into the compatible 2.5" or 3.5" bays. Install the graphics card using the standard or vertical PCI slots and secure it with the pre-installed VGA holder if required. Fit CPU cooler and PSU according to the maximum height and length specifications, and connect case fans to the motherboard or a fan hub. Use the top I/O ports for front access to USB and audio connections.

Recommendations

For optimal airflow, configure intake fans at the front and exhaust at the top and rear; check radiator compatibility before purchasing liquid cooling to ensure correct placement and clearance for fans and drives.
