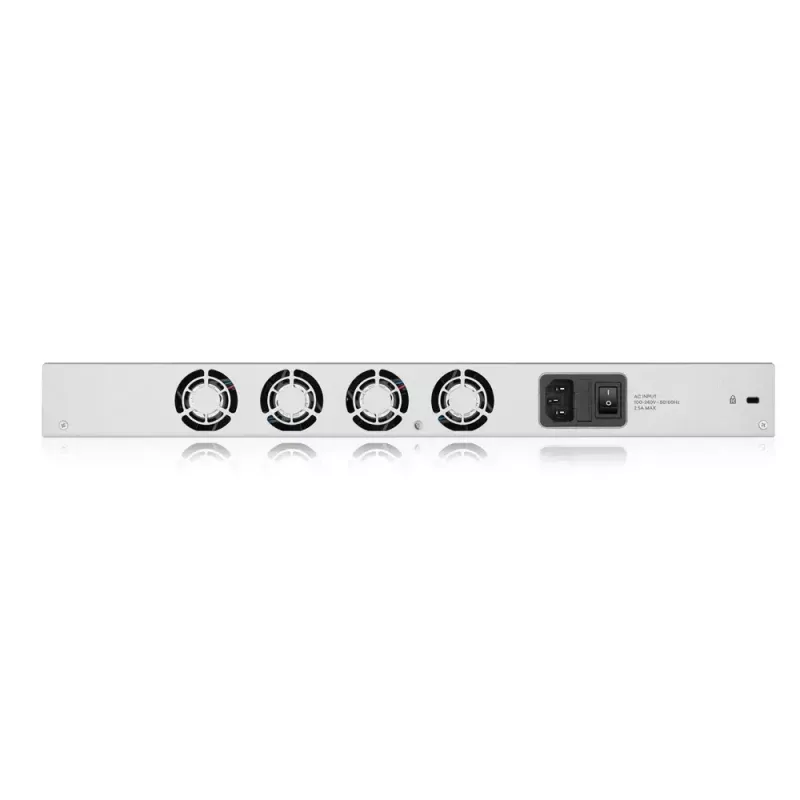

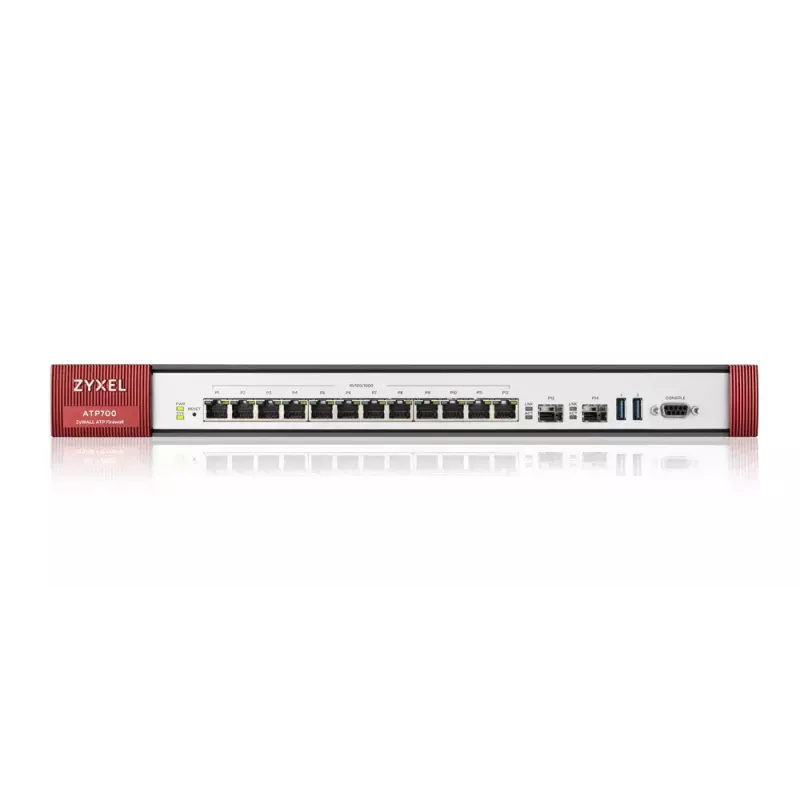

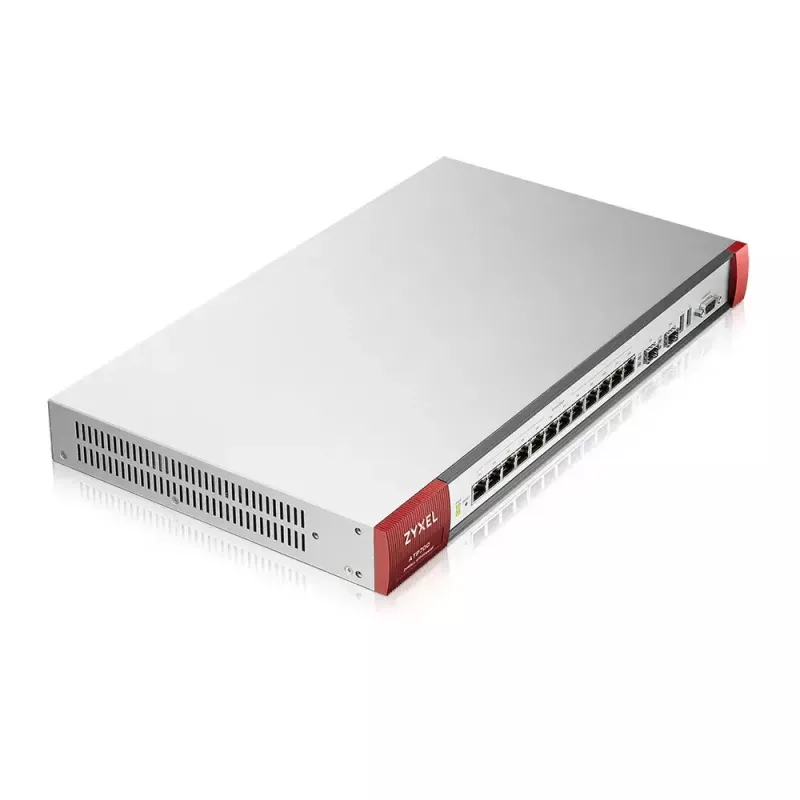

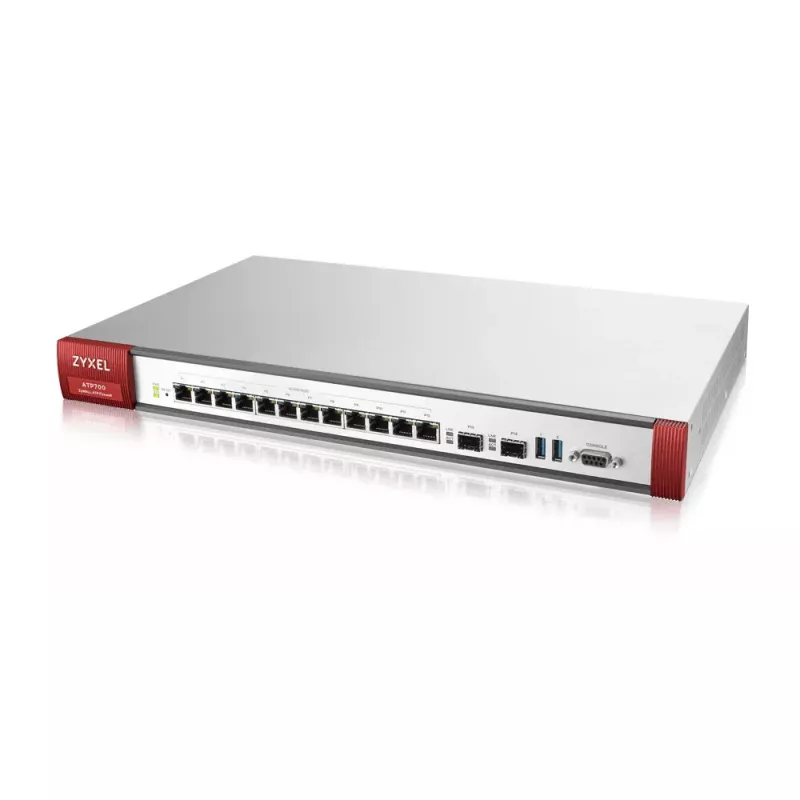

Zyxel ATP700 hardware-firewall 1U 6 Gbit/s

The Zyxel Hardware Firewall Zyxel ATP700 is a 1U network security appliance designed to provide multi-layer protection against modern cyber threats. With a throughput of 6 Gbit/s, VPN throughput of 1.2 Gbit/s and support for up to 150 concurrent users, the ATP700 combines high performance networking with cloud-enhanced threat intelligence to protect business networks from malware, ransomware, cryptojacking and other advanced persistent threats.

Advantages

The ATP700 uses cloud intelligence and machine learning to continuously learn from new attacks and distribute updates across devices, enabling faster detection and prevention of unknown threats. Sandboxing isolates and inspects suspicious files to detect zero-day malware, while a reputation filter consults a real-time cloud database to improve blocking accuracy and reduce device load. Integrated reporting and analytics provide clear traffic summaries and threat statistics for easier incident tracing and network management.

Suitable for

• Small and medium-sized business networks requiring centralized firewall protection
• Environments needing VPN connectivity and secure remote access
• Networks that require advanced threat detection such as sandboxing and cloud intelligence

Key specifications

• Form factor: 1U hardware firewall
• Firewall throughput: 6 Gbit/s
• VPN throughput: 1.2 Gbit/s
• Concurrent users supported: up to 150
• Supported LAN speeds: 10/100/1000 Mbit/s
• Heat dissipation: 120.1 BTU/h
• Noise level: 25.3 dB
• Weight: 3.3 kg
• Security features: cloud machine learning, sandboxing, reputation filter, IPSec, SSL/TLS, HTTPS

How to use

Install the ATP700 in a standard 19-inch rack and connect it to your network using the appropriate Ethernet interfaces. Configure basic network settings and VPN profiles via the device management interface, then enable the bundled cloud security services to start receiving threat intelligence updates. Use the firewall policy and IPS/URL filtering features to define allowed and blocked traffic, and activate sandboxing for deeper inspection of unknown files.

Recommendations

Enable cloud intelligence and daily updates to ensure the ATP700 receives the latest threat signatures. Regularly review SecuReporter analytics and reputation filter logs to identify suspicious activity, and keep firmware and security subscriptions current to maintain optimal protection.
