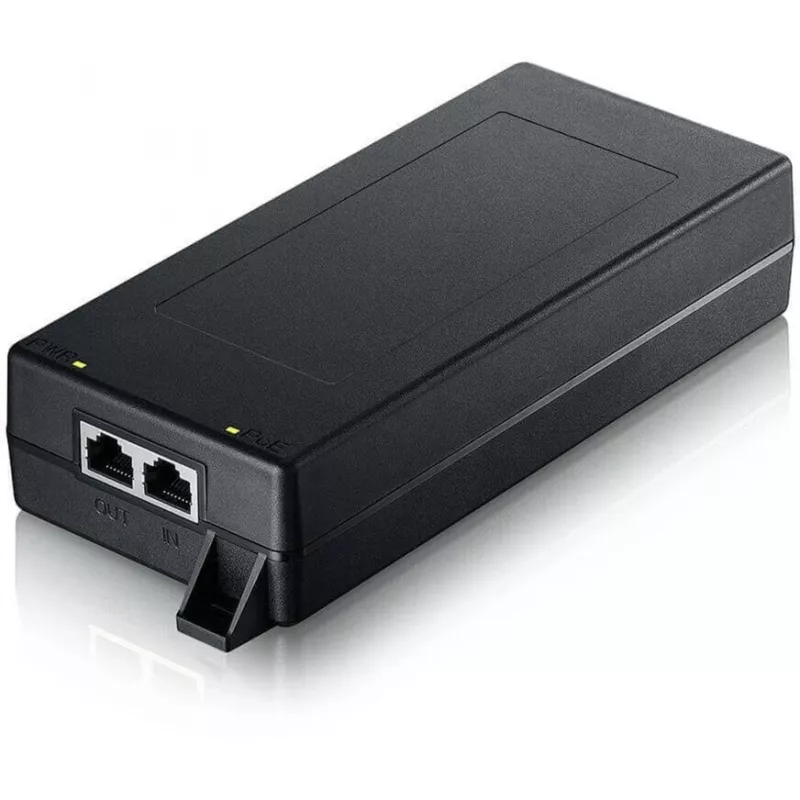

Zyxel PoE12-90W PoE-injector voeding binnen

The Zyxel PoE Injector PoE12-90W Indoor Power Adapter 240V is an indoor power injector that delivers power over Ethernet to network devices. Designed for use with high-power PoE++ equipment, this adapter supports a PoE power budget of up to 90W and provides network data transmission alongside power over a single Ethernet cable. It is intended for indoor installation and works with PoE-enabled devices such as access points, IP cameras and POS terminals.

Advantages

The PoE12-90W complies with the IEEE 802.3bt PoE++ standard to provide up to 90W output while maintaining compatibility with other IEEE-based PoE devices. It supports high-speed network links for modern equipment and simplifies cabling by combining power and data delivery. The compact indoor design and 240V input make it suitable for typical building electrical systems.

Suitable for

• Indoor WiFi 6/7 access points requiring high PoE power
• PTZ and other high-power IP surveillance cameras
• Advanced POS terminals and other PoE++ network devices

Key specifications

• Model: PoE12-90W (POE12-90W-EU0101F)
• Brand: Zyxel
• Input voltage: 240V (indoor use)
• PoE standard: IEEE 802.3bt (PoE++)
• Maximum PoE power budget: 90W
• Intended use: PoE injector for powering network devices (access points, IP cameras, POS)
• EAN: 4718937638178

How to use

Connect the injector to a 240V AC mains outlet, then connect an Ethernet cable from your network switch or router to the injector's data input port. Connect the powered device (for example, an access point or IP camera) to the injector's PoE output port using a compatible Ethernet cable. The injector will supply both data and power over the same cable. Ensure cables and device power requirements match the IEEE 802.3bt PoE++ specification before connecting.
