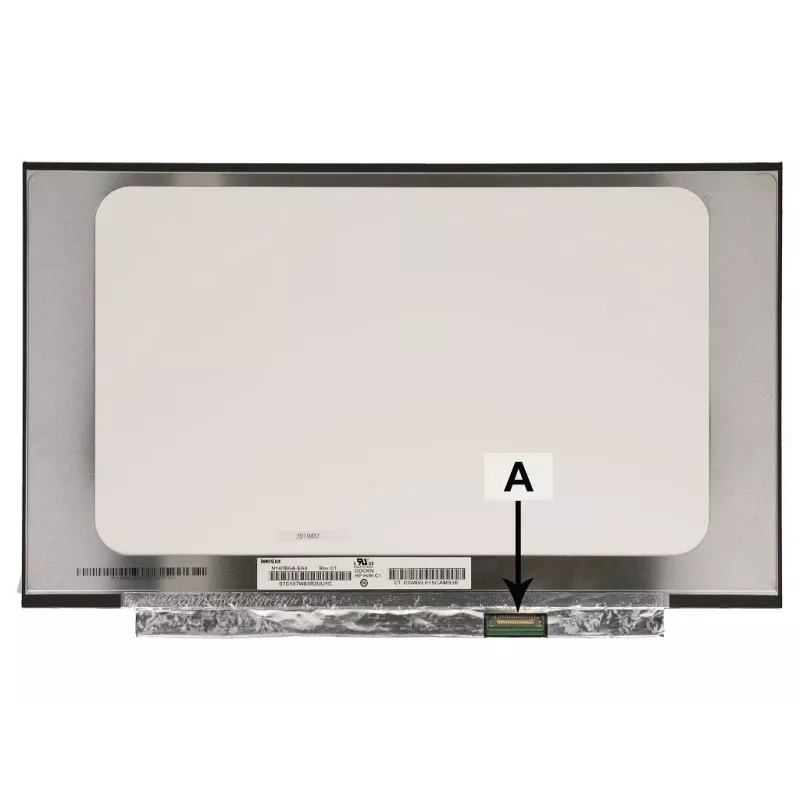

2-power 14,0 inch 1366x768 HD LED 30 pin mat (2P-KL.14005.041)

A cracked or dim laptop display can make work impossible. This 2-Power 14.0-inch replacement screen restores sharp, clear visuals with a 1366x768 HD resolution and LED backlight. The matte finish reduces glare, so you can work comfortably in bright rooms or near windows. Designed for laptops that use a 30-pin eDP connector, this panel is a direct fit for many models and includes top and bottom mounting brackets for easy installation.

Who is it for

This screen is ideal for technicians, IT professionals, and DIY users who need a reliable replacement for a damaged laptop display. It suits everyday computing tasks like web browsing, document editing, and video streaming. If your laptop has a 14.0-inch HD display with a 30-pin eDP connection, this panel is a cost-effective way to bring it back to life.

Main features

• 14.0-inch diagonal size with 1366x768 HD resolution for clear text and images.
• LED backlight with WLED technology for bright, energy-efficient performance.
• Matte (anti-glare) surface reduces reflections and eye strain.
• 30-pin eDP connector for a secure, high-speed data interface.
• TN panel with 45% NTSC colour gamut and 60 Hz refresh rate for smooth everyday use.
• Top and bottom mounting brackets included for straightforward installation.
• Low power consumption of 3-5 W typical, helping extend battery life.

Specifications

• Screen size: 14.0 inches
• Resolution: 1366 x 768 pixels (HD)
• Display technology: LED-backlit LCD
• Panel type: TN (Twisted Nematic)
• Aspect ratio: 16:9
• Surface finish: Matte (anti-glare)
• Connector type: 30-pin eDP
• Backlight type: WLED
• Refresh rate: 60 Hz
• Brightness: 200-220 cd/m²
• Response time: 8-12 ms
• Viewing angle: 45/45/20/45 (L/R/U/D)
• Colour gamut: 45% NTSC
• Pixel density: ~112 PPI
• Power consumption: 3-5 W typical
• Mounting: Top and bottom brackets

Tips

Before ordering, verify your laptop's screen size, resolution, and connector type. The 30-pin eDP connector is common but not universal, so check your existing panel or service manual. Handle the screen by its edges and avoid touching the surface to prevent damage. For best results, install in a dust-free environment and test before final assembly.
