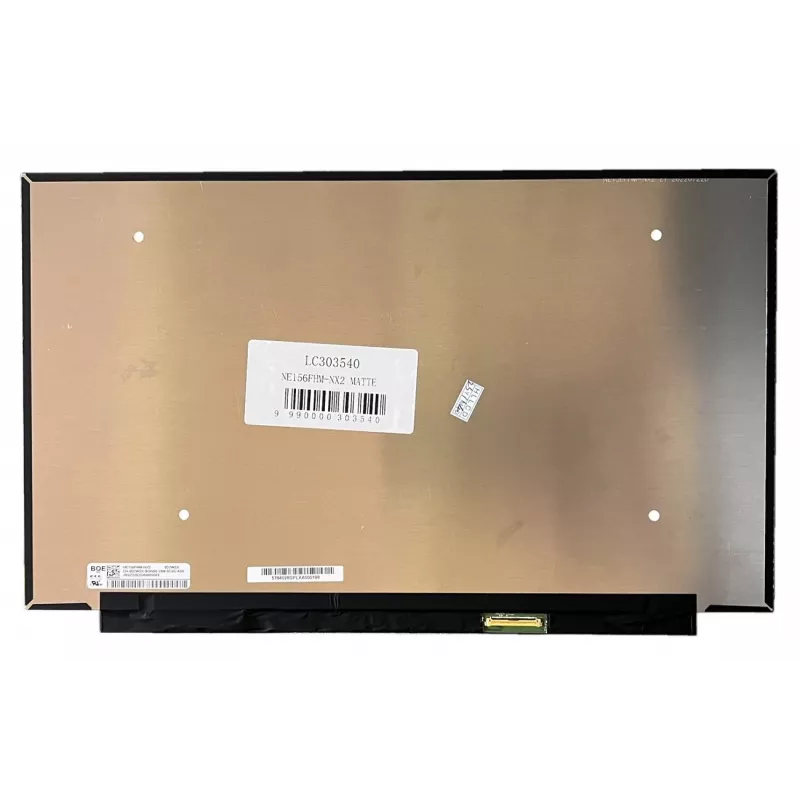

BOE LC303540 15,6 inch Full HD IPS mat 120Hz 40-pin eDP displaypaneel

Replace a faulty laptop screen or upgrade to a smoother visual experience with this BOE 15.6-inch display panel. The LC303540 delivers a Full HD 1920x1080 resolution and a 120Hz refresh rate, reducing motion blur and making fast-paced content look sharper. Its matte IPS surface cuts reflections, while the right-positioned 40-pin eDP connector ensures a straightforward installation in compatible laptops.

Who is it for

This panel suits technicians and DIY upgraders working on laptops that require a 15.6-inch 40-pin eDP screen with a right-side connector. It is also a practical choice for anyone replacing a damaged display and wanting a high-refresh-rate upgrade.

Main features

• 15.6-inch IPS panel with 1920x1080 Full HD resolution
• 120Hz refresh rate for smoother motion
• Matte anti-glare surface reduces reflections
• 40-pin eDP connector positioned on the right (viewed from back)
• LED backlight with 300 cd/m² brightness and 72% NTSC colour gamut

Specifications

• Panel type: IPS, TFT Active Matrix
• Resolution: 1920 x 1080 (Full HD)
• Refresh rate: 120 Hz
• Surface finish: Matte (Anti-Glare)
• Backlight: LED
• Aspect ratio: 16:9
• Data connector: eDP, 40-pin, right position (viewed from back)
• Brightness: 300 cd/m²
• Colour gamut: 72% NTSC
• Response time: 5 ms
• Viewing angle: 85/85/85/85 (L/R/U/D)
• Power consumption: 3.3V

Tips

Before ordering, confirm your laptop's screen size, resolution, connector type, pin count, and connector position. The 40-pin eDP connector must be on the right when viewed from the back. Handle the panel by its edges and avoid touching the surface to prevent damage.
