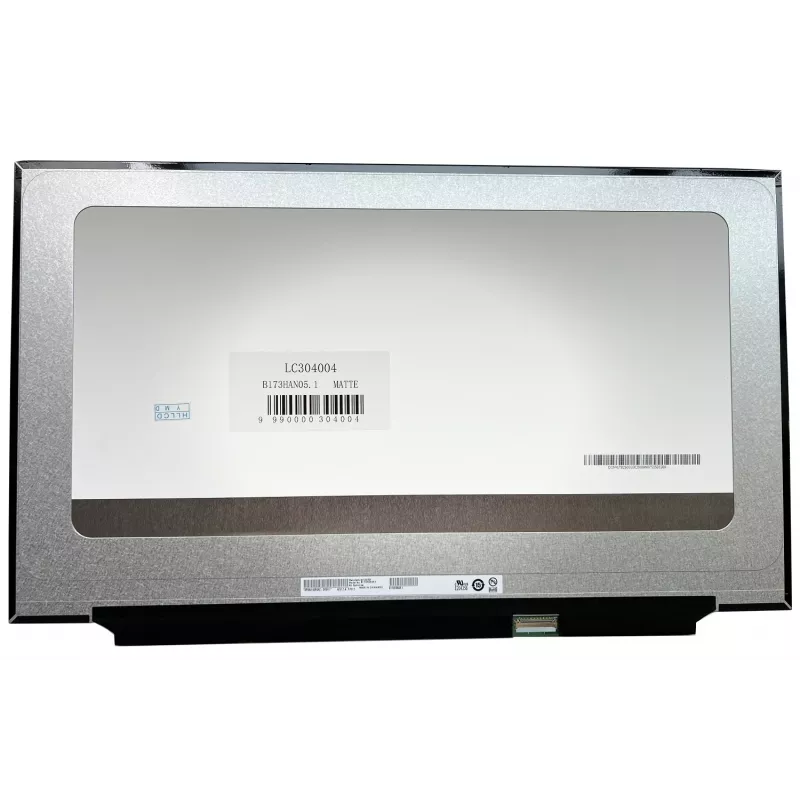

BOE 17,3 inch Full HD 300Hz IPS mat displaypaneel (40-pin eDP, rechter aansluiting)

When a laptop screen fails, finding the right replacement panel can be a challenge. This BOE 17.3-inch display panel solves that problem by offering a direct replacement for compatible laptops, restoring your device's visual performance with a crisp Full HD resolution and an ultra-smooth 300Hz refresh rate.

Who is it for

This panel is intended for technicians, repair shops, and advanced DIY users who need to replace a faulty laptop screen. It is a bare display panel, not a complete assembly, so installation requires technical skill and compatibility verification.

Main features

• 17.3-inch IPS panel with 1920x1080 Full HD resolution
• 300Hz refresh rate for fluid motion and reduced blur
• Matte (anti-glare) surface to minimize reflections
• 40-pin eDP connector located on the right side
• LED backlight with 300 cd/m² brightness and 1000:1 contrast ratio
• Wide 178° viewing angles and 100% sRGB color gamut

Specifications

• Screen Size: 17.3 inches
• Resolution: 1920 x 1080 (Full HD)
• Refresh Rate: 300 Hz
• Panel Type: IPS
• Surface Finish: Matte (Anti-Glare)
• Aspect Ratio: 16:9
• Backlight Type: LED
• Connector Type: 40-pin eDP
• Connector Location: Right
• Brightness: 300 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 178°/178°
• Color Gamut: 100% sRGB
• Color Depth: 8-bit
• Response Time: 3ms (GtG)
• Pixel Density: 127 PPI
• Display Technology: TFT Active Matrix LCD

Tips

Before ordering, verify that your laptop uses a 17.3-inch panel with a 40-pin eDP connector on the right side. Check the mounting brackets and cable length, as these can vary between laptop models. Professional installation is recommended to avoid damage.
