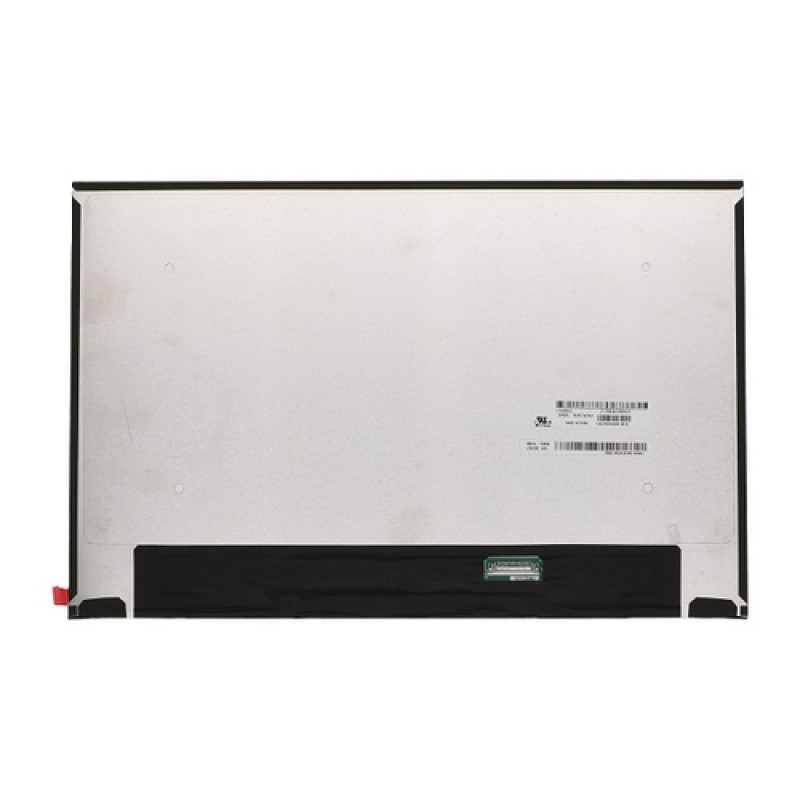

2-Power 14,0 inch WUXGA 1920x1200 5MM eDP IPS (2P-B140UAN04.1)

Technicians and repair specialists often need a dependable replacement display to bring a laptop back to life. This 2-POWER 14.0-inch WUXGA panel delivers the clarity and colour accuracy required for professional refurbishment or DIY upgrades. With a native resolution of 1920x1200 and an IPS matrix, it provides sharp text and vivid imagery from wide viewing angles, making it a solid choice for workstations, field service kits, or home repair benches.

Key specifications

• Screen size: 14.0 inches (16:10 aspect ratio)
• Resolution: 1920 x 1200 (WUXGA)
• Panel technology: IPS (In-Plane Switching)
• Backlight: LED
• Interface: eDP (Embedded DisplayPort), 30-pin connector
• Panel thickness: 5 mm (slim profile)
• Refresh rate: 60 Hz
• Brightness: 300 cd/m² (nits)
• Colour gamut: 100% sRGB
• Contrast ratio: 1000:1
• Viewing angles: 85/85/85/85 (L/R/U/D)
• Surface finish: Matte (anti-glare)
• Response time: 30 ms
• Touchscreen: No

Why choose it

This panel offers a high-resolution WUXGA image with full sRGB coverage, ensuring accurate colour reproduction for photo editing, spreadsheet work, or media consumption. The IPS technology guarantees consistent colours and brightness even when viewed off-centre, while the matte coating reduces reflections in bright environments. Its slim 5 mm profile and standard 30-pin eDP connector make it compatible with a wide range of laptops that use 14.0-inch WUXGA displays.

Ideal use cases

• Replacing a cracked or faulty laptop screen
• Upgrading an existing HD panel to a higher-resolution WUXGA display
• Refurbishing business notebooks for resale
• Building a portable external monitor with a compatible controller board

Good to know

Before ordering, verify that your laptop's original panel uses a 30-pin eDP connector and supports a 14.0-inch WUXGA (1920x1200) resolution. The panel does not include mounting brackets or cables; reuse the existing hardware from your device. Installation requires careful handling—avoid touching the front polarizer and ensure the laptop is powered off and the battery disconnected. This panel is a bare display component and does not come with a touchscreen digitizer.
