2-power 14,0 inch WXGA HD 1366x768 LED mat (2P-LP140WH2(TL)(M2))

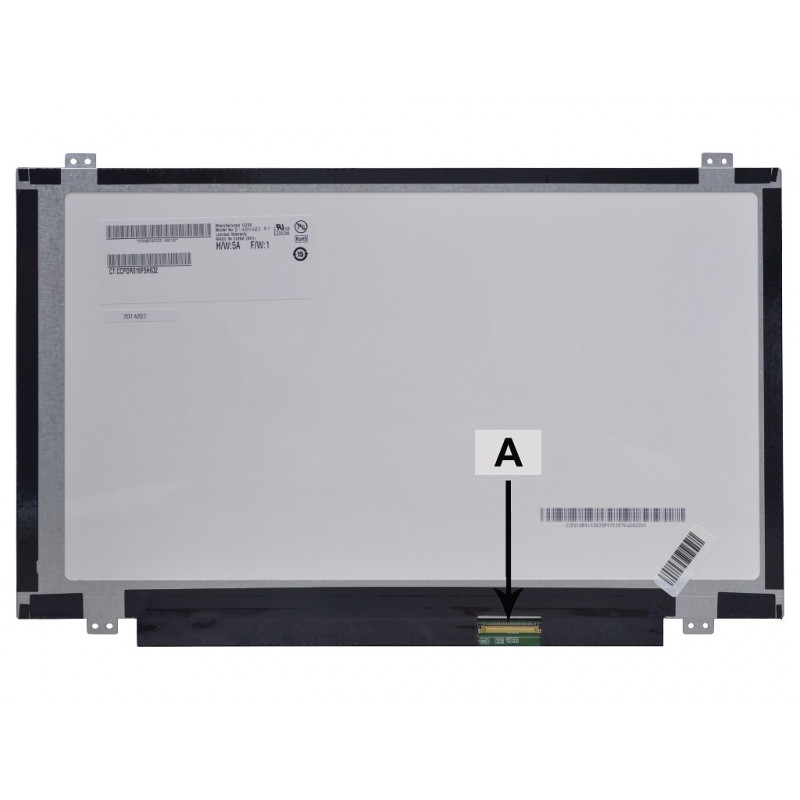

Featuring a 14.0-inch WXGA HD display with a 1366x768 resolution and LED backlight, this panel delivers crisp visuals and energy efficiency. The matte finish reduces glare, making it ideal for use in bright environments. With a 30-pin LVDS connector and bottom-right orientation, it is a universal replacement for many laptops.

Overview

This 2-POWER laptop screen panel is designed to restore your laptop's display to its original clarity. The 14.0-inch TN panel offers a 16:9 aspect ratio, 200 cd/m² brightness, and a 400:1 contrast ratio, ensuring clear images for everyday computing. The anti-glare surface minimizes reflections, providing comfortable viewing in various lighting conditions.

What stands out

• 14.0-inch WXGA HD resolution (1366x768) for sharp visuals
• LED backlight for lower power consumption and longer lifespan
• Matte (anti-glare) finish reduces eye strain
• 30-pin LVDS connector for broad compatibility
• Side brackets for easy installation

Technical details

• Screen Size: 14.0 inches
• Resolution: 1366 x 768 (WXGA HD)
• Display Technology: LED
• Panel Type: TN (Twisted Nematic)
• Surface Finish: Matte (Anti-Glare)
• Aspect Ratio: 16:9
• Connector Type: 30-pin LVDS
• Connector Position: Bottom Right (when facing the back of the screen)
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m² (Typical)
• Contrast Ratio: 400:1 (Typical)
• Response Time: 8 ms (Typical)
• Viewing Angle: 45/45/20/40 (L/R/U/D)
• Color Gamut: 45% NTSC
• Pixel Density: 112 PPI
• Voltage: 3.3V
• Mounting Type: Side Brackets
• Condition: New

Our verdict

A reliable and affordable replacement screen that brings your laptop back to life with clear, glare-free visuals.
