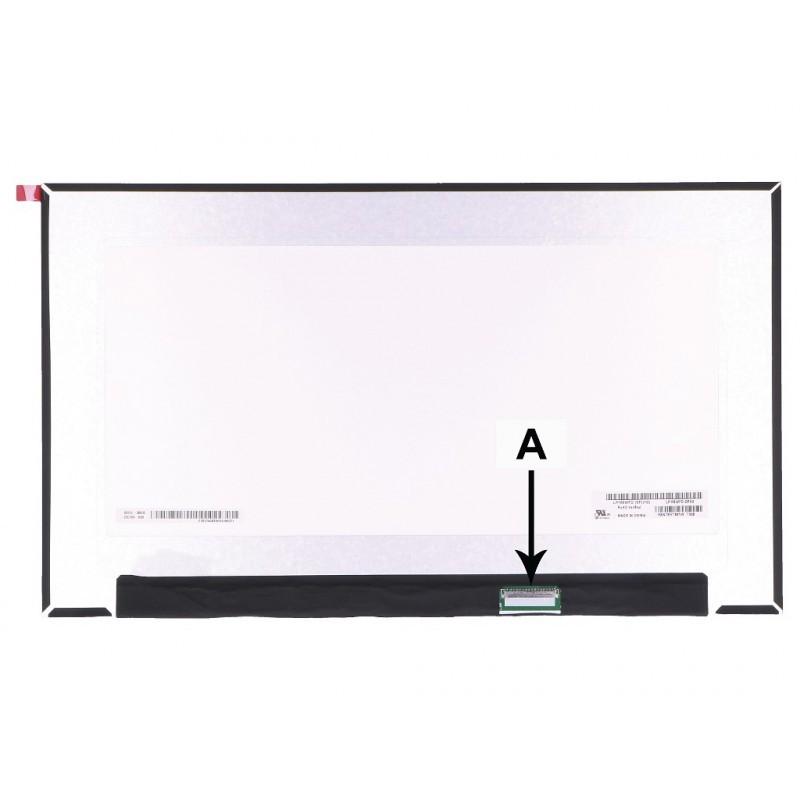

2-power 15.6 inch 1920x1080 FHD LED On-Cell touch (2P-V91DK)

This 15.6-inch FHD display panel combines a crisp 1920x1080 resolution with responsive on-cell touch technology, delivering vivid visuals and intuitive interaction for compatible laptops and all-in-one systems. The LED backlight ensures bright, energy-efficient performance, while the glossy finish enhances colour depth and contrast.

Advantages

The on-cell touch layer reduces reflection and improves touch accuracy compared to traditional add-on digitizers. With a 60 Hz refresh rate and 25 ms response time, it handles everyday tasks smoothly. Wide 85° viewing angles and 45% NTSC colour gamut provide consistent images from multiple positions.

Suitable for

• Laptop screen replacements and upgrades
• All-in-one PCs and industrial touch displays
• Point-of-sale terminals and kiosks
• DIY projects requiring a 30-pin eDP touch panel

Key specifications

• Screen size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Touchscreen: On-cell capacitive, 10-point multi-touch
• Panel type: IPS-like, glossy finish
• Brightness: 250 nits
• Contrast ratio: 600:1 (typical)
• Viewing angles: 85° horizontal, 85° vertical
• Response time: 25 ms
• Connector: 30-pin eDP
• Backlight: WLED, 5W typical power consumption

Recommendations

Verify your device's connector type, mounting holes, and BIOS compatibility before installation. For outdoor or high-glare environments, consider an anti-glare film. Professional installation is recommended to avoid damage to the delicate flex cable.
