2-power 2P-FRU01EN019 - beeldscherm - 35,6 cm (14) - WXGA

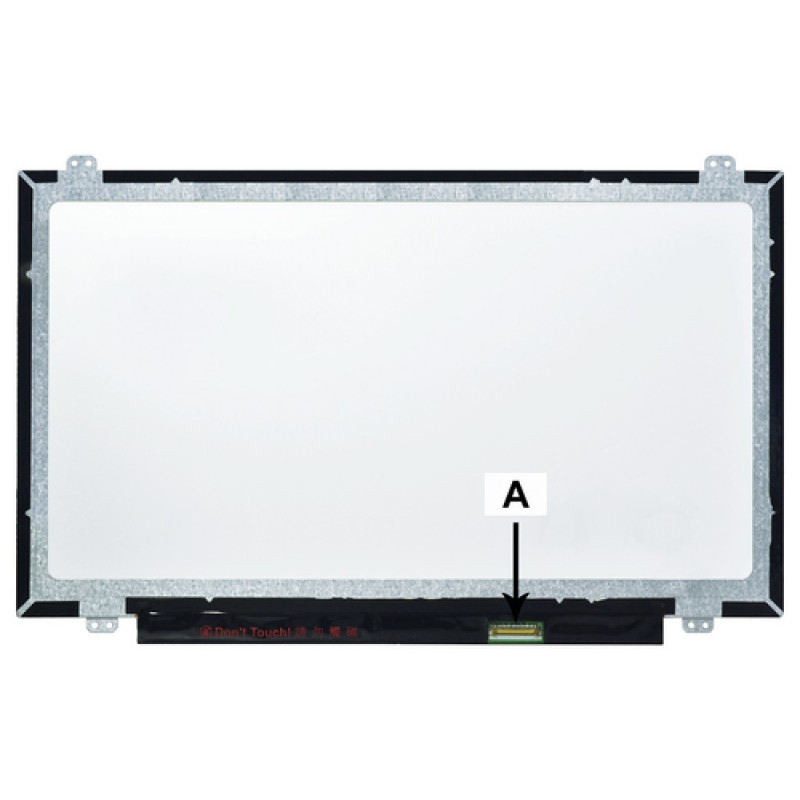

When a laptop screen cracks or fades, a technician reaches for a reliable replacement panel to restore the machine's visual output. The 2-POWER 2P-FRU01EN019 is a 14-inch WXGA display panel built for exactly that purpose. It delivers a clear 1366 x 768 resolution with LED backlighting and a matte finish, making it suitable for office work, web browsing, and general computing. The panel uses a 30-pin eDP connector and mounts with side brackets, fitting a wide range of laptops that require this standard configuration.

Key specifications

• Display diagonal: 14 inches (35.6 cm)
• Native resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Matte
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Color gamut: 45% NTSC
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)
• Response time: 8 ms
• Power consumption: 3.5 W typical

Why choose it

This panel offers a straightforward upgrade or replacement for laptops with a 14-inch WXGA display. The matte coating reduces glare, improving visibility in bright environments. LED backlighting ensures energy efficiency and a long service life. The standard 30-pin eDP interface simplifies installation for technicians familiar with modern laptop internals. With universal compatibility for laptops using this panel size and connector, it is a practical choice for repair shops and IT departments.

Ideal use cases

• Replacing a broken or dim laptop screen in business notebooks
• Upgrading a laptop with a TN panel to a new unit with similar specs
• Refurbishing used laptops for resale or internal redeployment
• Keeping spare parts inventory for common 14-inch laptop models

Good to know

The panel is designed for universal fitment in laptops that accept a 14-inch WXGA panel with side brackets and a 30-pin eDP connector. It does not include mounting screws or brackets; those are typically reused from the original display assembly. The TN panel technology provides fast response times and low cost, though viewing angles are narrower than IPS alternatives. For best results, verify the original panel's connector position and mounting hole pattern before ordering.
