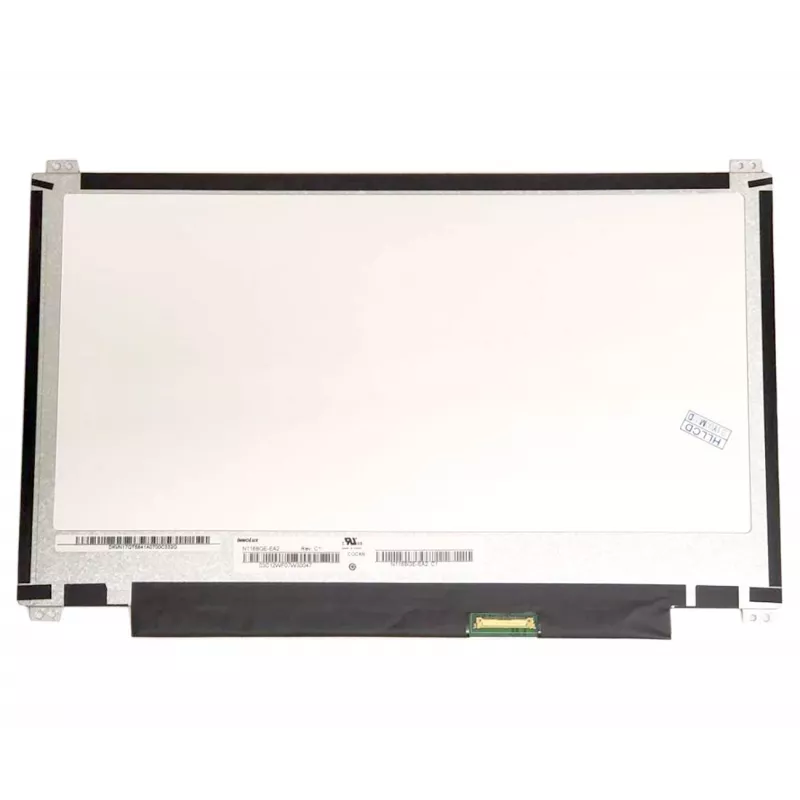

LG 11,6 inch HD mat LCD-display, 1366x768, 60Hz, 30-pin eDP, rechter connector

Experience crisp visuals with this LG 11.6-inch LCD screen featuring a 1366x768 HD resolution and a 60Hz refresh rate. The matte anti-glare surface ensures comfortable viewing in various lighting conditions.

Overview

This replacement panel is built around TFT Active Matrix LCD technology with LED backlighting, delivering a bright 220 cd/m² image and a 500:1 contrast ratio. The 30-pin eDP connector is positioned on the right side (when viewed from the back), making it suitable for laptops that require this configuration.

What stands out

• 11.6-inch display with 1366x768 HD resolution
• Matte anti-glare finish reduces reflections
• LED backlight for energy efficiency
• 30-pin eDP connector on the right side
• 60Hz refresh rate for smooth motion

Technical details

• Display size: 11.6 inches
• Resolution: 1366 x 768 pixels
• Technology: TFT Active Matrix LCD
• Backlight: LED
• Surface: Matte (anti-glare)
• Refresh rate: 60 Hz
• Aspect ratio: 16:9
• Connector: 30-pin eDP
• Connector position: Right (from back)
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Response time: 8 ms
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)
• Color gamut: 45% NTSC
• Panel grade: A+

Our verdict

A reliable replacement panel for laptops requiring an 11.6-inch 30-pin eDP screen. Its matte finish and solid specifications make it a practical choice for everyday use.
