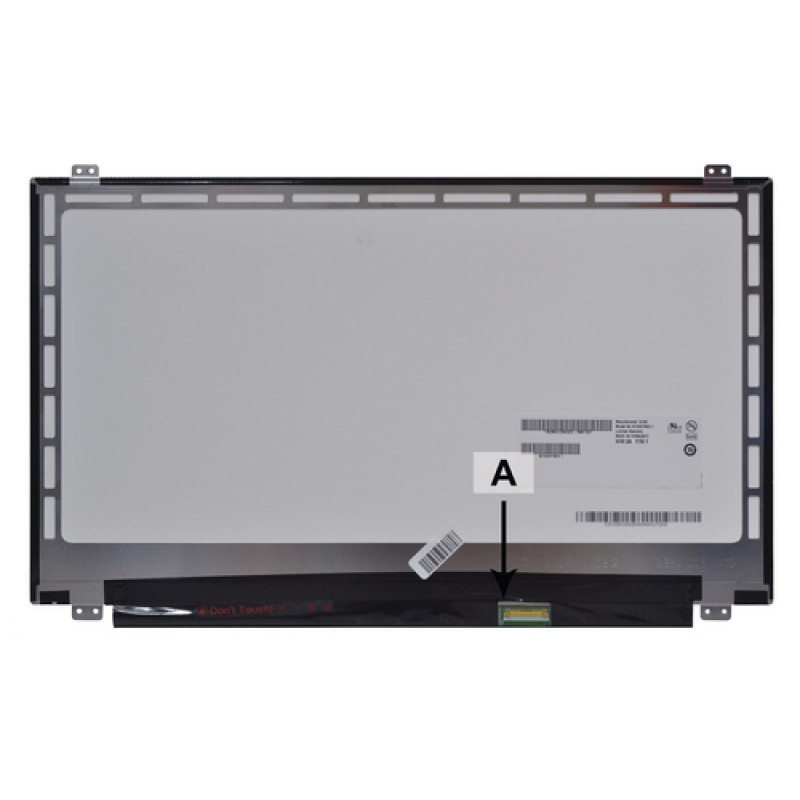

2-power 2P-LTN156AT39-702 - beeldscherm - 39,6 cm (15,6) - HD

This 15.6-inch HD laptop screen panel delivers a crisp 1366 x 768 resolution with LED backlighting for vibrant visuals and energy efficiency. The matte TN surface reduces glare, making it ideal for everyday computing in various lighting conditions. With a standard 40-pin LVDS connector and top/bottom mounting brackets, it is a direct replacement for Samsung LTN156AT39 and compatible models, ensuring seamless integration.

Advantages

The LED backlight provides consistent brightness up to 200 cd/m² while consuming less power than traditional CCFL panels. The matte finish minimizes reflections, reducing eye strain during extended use. Its 60 Hz refresh rate and 16:9 aspect ratio are perfectly suited for office applications, web browsing, and video playback. The panel's TN technology offers fast response times, ensuring smooth motion without ghosting.

Suitable for

• Replacing faulty or damaged screens in laptops using 15.6" HD 40-pin LVDS panels
• DIY repair projects and refurbishment of notebooks
• IT professionals and repair technicians seeking reliable, cost-effective display solutions
• Users upgrading from a glossy to a matte screen for better outdoor visibility

Key specifications

• Display Size: 15.6 inches (39.6 cm) diagonal
• Resolution: HD (1366 x 768 pixels), 16:9 aspect ratio
• Panel Type: TN (Twisted Nematic) with LED backlight
• Surface: Matte (anti-glare)
• Connector: 40-pin LVDS, located at left bottom
• Brightness: 200 cd/m² (typical)
• Color Gamut: 45% NTSC
• Viewing Angles: 45/45/15/35 degrees
• Refresh Rate: 60 Hz
• Mounting: Top and bottom brackets
• Condition: New, compatible with Samsung LTN156AT39 and similar

Recommendations

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting position to ensure compatibility. Handle the panel by its edges and avoid touching the surface to prevent damage. Professional installation is recommended for optimal results.
