2-power 2P-LTN156AT39-H01 - beeldscherm - 39,6 cm (15.6) - WXGA

Replace a faulty or damaged laptop display with this high-quality 15.6-inch WXGA HD panel from 2-POWER. The 2P-LTN156AT39-H01 delivers crisp 1366 x 768 resolution on a glossy TN surface, with LED backlighting for bright, energy-efficient performance. Its 40-pin LVDS connector and bottom-left orientation ensure compatibility with a wide range of laptops originally equipped with Samsung LTN156AT39 series panels.

Advantages

This screen offers a straightforward upgrade or repair solution. The LED backlight provides consistent brightness at 200 cd/m² while consuming less power than older CCFL panels. The glossy finish enhances colour vibrancy and contrast for everyday tasks, and the TN technology keeps response time low at 8 ms, reducing ghosting in fast-moving content. With a standard 16:9 aspect ratio and side mounting brackets, installation is simplified for technicians and DIY users alike.

Suitable for

• Laptop screen replacement for compatible 15.6" models
• DIY repairs and professional refurbishment
• Users needing a cost-effective display with HD resolution
• Systems requiring a 40-pin LVDS connection

Key specifications

• Display diagonal: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Panel type: TN, LED backlight
• Surface: Glossy

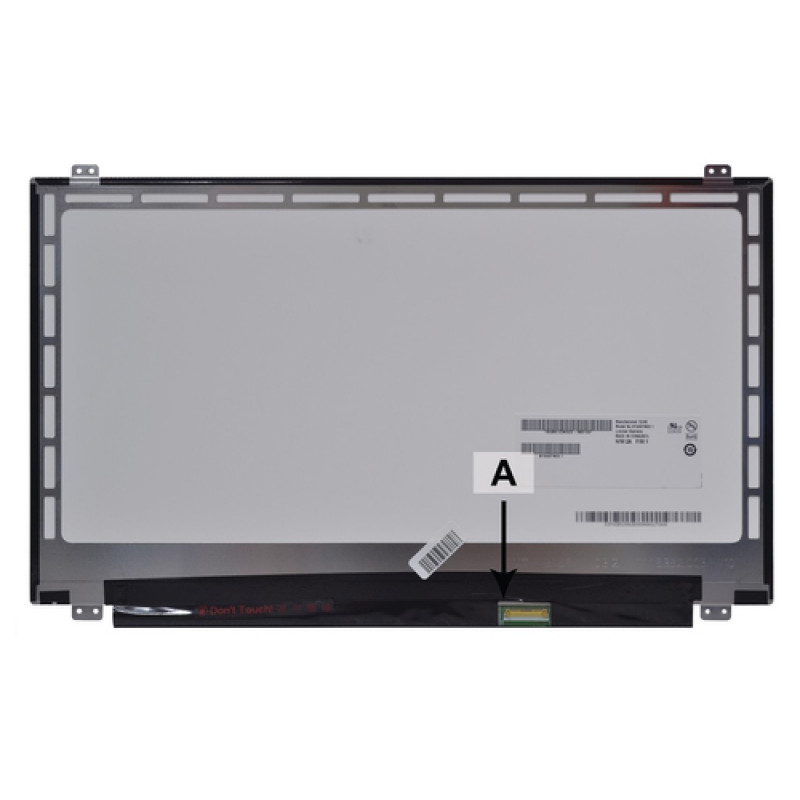

• Connector: 40-pin LVDS, bottom-left position
• Brightness: 200 cd/m²
• Response time: 8 ms
• Viewing angles: 90° horizontal / 50° vertical
• Colour gamut: 45% NTSC
• Mounting: Side brackets

Recommendations

Verify your laptop's screen size, resolution, connector type, and mounting style before ordering. This panel is a direct replacement for many models using the Samsung LTN156AT39 series. For best results, handle the screen by its edges and avoid touching the surface to prevent damage.
