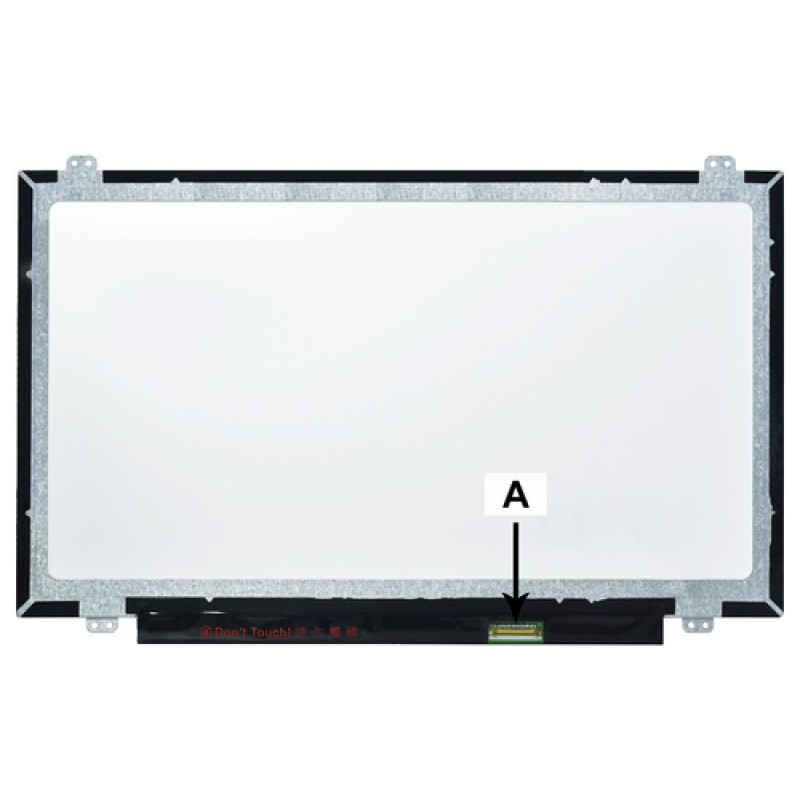

2-power 2P-M140NWR6 - beeldscherm - 35,6 cm (14) - WXGA

When a laptop screen fails, the difference between a quick fix and a prolonged headache often comes down to the quality of the replacement panel. The 2-POWER 2P-M140NWR6 sets itself apart by matching the exact specifications of original 14-inch WXGA panels, ensuring a drop-in fit and consistent visual performance without guesswork. Built around a 35.6 cm (14") diagonal LED-backlit TN panel, it delivers the 1366 x 768 resolution and 16:9 aspect ratio that countless business and consumer laptops rely on. The matte anti-glare surface keeps reflections at bay in offices, classrooms, and on the go, while the 30-pin eDP connector aligns with modern motherboard interfaces. Whether you are reviving a workhorse notebook or repairing a fleet device, this panel provides the clarity and reliability needed for daily productivity.

Highlights

• Exact 14-inch WXGA (1366 x 768) resolution for native compatibility
• LED backlight with 220 cd/m² typical brightness for balanced visibility
• Matte anti-glare coating reduces eyestrain in bright environments
• TN panel technology with 8 ms response time for smooth motion
• 30-pin eDP connector for straightforward installation
• Side brackets (top/bottom) enable secure mounting in compatible chassis

In daily use

From spreadsheets to video calls, the 2P-M140NWR6 delivers a crisp image with a pixel density of approximately 112 PPI, making text readable and images detailed without excessive scaling. The 60 Hz refresh rate is standard for office tasks and light multimedia, while the 45% NTSC color gamut covers essential sRGB content adequately. With a 6-bit color depth producing 262,144 colors, gradients remain smooth for everyday applications. The panel's 8 ms response time minimizes ghosting during fast-moving content, and the LED backlight offers consistent luminance across the screen. Installation is simplified by the 30-pin eDP connector, which is common among 14-inch laptops from major manufacturers, and the side brackets ensure alignment with original screw holes.

Full specifications

• Screen size: 14 inches (35.6 cm)
• Native resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight technology: LED
• Surface type: Matte (anti-glare)
• Panel technology: TN (Twisted Nematic)
• Connector type: 30-pin eDP (Embedded DisplayPort)
• Refresh rate: 60 Hz
• Brightness (typical): 220 cd/m²
• Response time (typical): 8 ms
• Color gamut (typical): 45% NTSC
• Display colors: 262,144 (6-bit)
• Pixel density: ~112 PPI
• Mounting type: Side brackets (top/bottom)

Final note

For technicians and end-users alike, the 2-POWER 2P-M140NWR6 offers a dependable path to restoring a laptop's display. Its adherence to standard WXGA specifications and eDP connectivity makes it a practical choice for a wide range of 14-inch notebooks, balancing performance with ease of integration.
