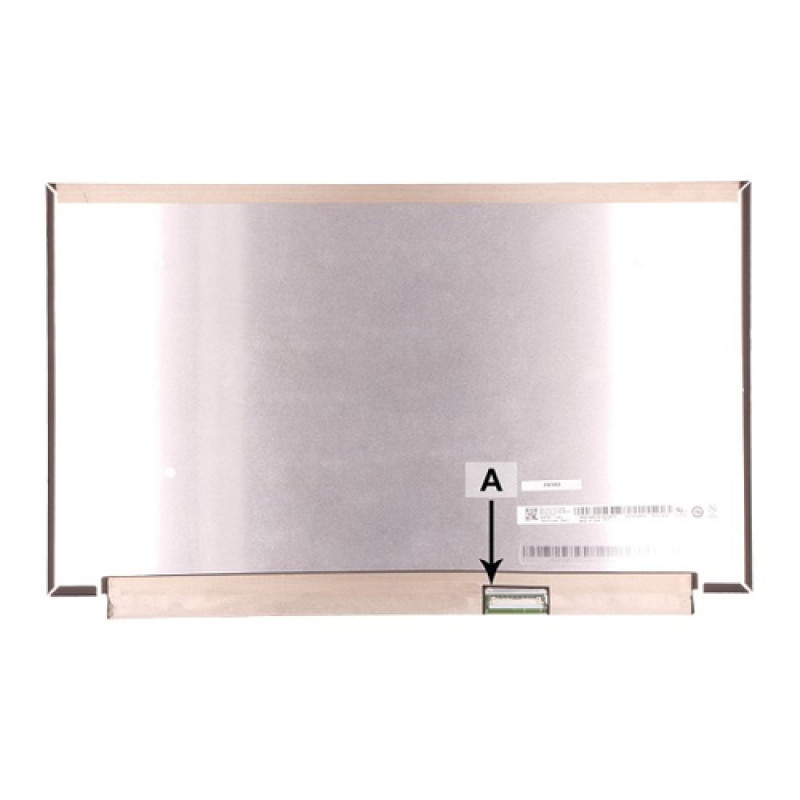

2-power LCD CSOT 15,6 inch UHD IPS 600nit (B156ZAN04.2 1A)

A dim, cracked, or dead laptop display can cripple productivity and strain your eyes. This 15.6-inch UHD IPS panel from CSOT restores razor-sharp clarity and vivid color, making it the ideal upgrade or replacement for compatible notebooks.

Who is it for

Technicians, IT departments, and DIY enthusiasts who need a reliable, high-resolution screen for laptop repair or upgrade projects. Perfect for users demanding accurate color and high brightness in bright environments.

Main features

• Stunning 3840 x 2160 UHD resolution with 10-bit color depth (8-bit + FRC) for smooth gradients and over a billion colors.
• Exceptional 600-nit brightness and 90% DCI-P3 color gamut ensure visibility even in direct sunlight and true-to-life color reproduction.
• IPS technology provides wide 178° viewing angles, so the image stays consistent from any position.
• Matte anti-glare surface reduces reflections and eye fatigue during long work sessions.
• Standard 40-pin eDP connector for straightforward installation in compatible laptops.

Specifications

• Screen size: 15.6 inches
• Resolution: 3840 x 2160 (UHD)
• Panel type: IPS (In-Plane Switching)
• Brightness: 600 nits (cd/m²)
• Panel manufacturer: CSOT (China Star Optoelectronics Technology)
• Panel model: B156ZAN04.2
• Aspect ratio: 16:9
• Refresh rate: 60Hz
• Backlight type: LED
• Connector type: eDP (Embedded DisplayPort)
• Connector pins: 40 pins
• Color gamut: 90% DCI-P3
• Viewing angle: 178° horizontal / 178° vertical
• Surface finish: Matte (anti-glare)
• Display technology: TFT active matrix LCD
• Pixel density: ~282 PPI
• Color depth: 10-bit (8-bit + FRC)

Tips

Before ordering, verify that your laptop's original screen has the same connector type, mounting brackets, and cable position. Handle the panel by its edges and use an anti-static wrist strap during installation to prevent damage.
