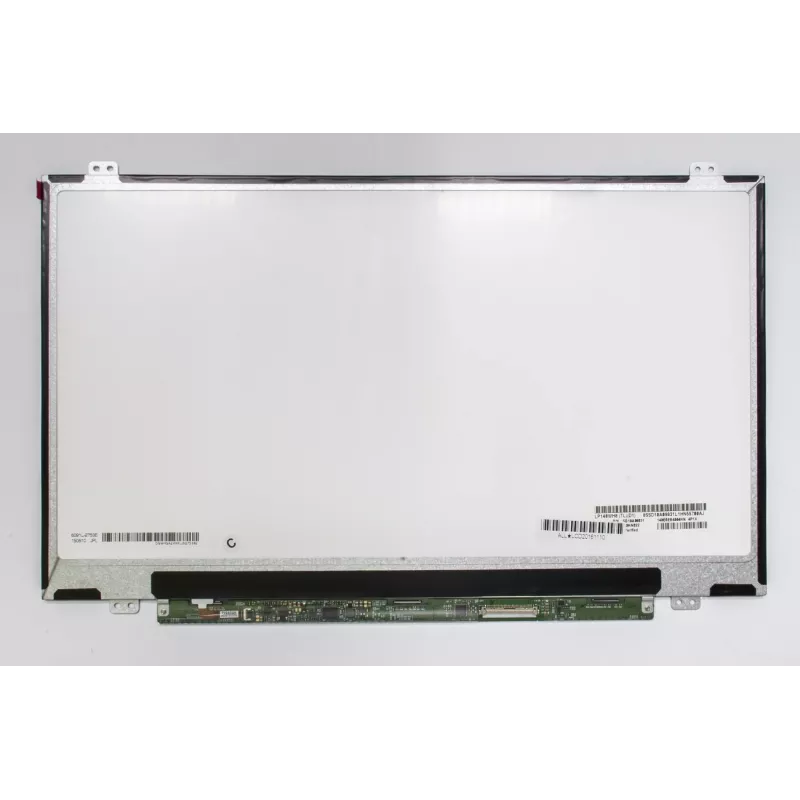

AUO LC300211 14,0 inch WXGA 1366x768 60Hz mat 40-pins LVDS LCD-paneel

When a laptop screen cracks or dims, finding the right replacement panel can be a challenge. The AUO LC300211 is a 14.0-inch LCD panel that restores your display to its original clarity. With a resolution of 1366x768 (WXGA) and a 60Hz refresh rate, it delivers sharp images and smooth motion for everyday computing tasks.

Who is it for

This panel is for technicians and DIY repairers who need to replace a faulty 14.0-inch display in a laptop or similar device. It is compatible with systems that use a 40-pin LVDS connector located on the right side when viewed from the back.

Main features

• 14.0-inch TFT-LCD panel with TN technology
• WXGA resolution: 1366 x 768 pixels
• 60 Hz refresh rate for fluid visuals
• Matte (anti-glare) surface to reduce reflections
• LED backlight for energy efficiency
• 40-pin LVDS data connector, positioned on the right

Specifications

• Display Size: 14.0 inches
• Resolution: 1366 x 768 (WXGA)
• Aspect Ratio: 16:9
• Refresh Rate: 60 Hz
• Surface Finish: Matte (Anti-Glare)
• Backlight Type: LED
• Data Connector: 40-Pin LVDS
• Connector Position: Right (when viewed from the back)
• Display Technology: TFT-LCD
• Panel Type: TN (Twisted Nematic)
• Brightness: 200 cd/m² (Typical)
• Contrast Ratio: 400:1 (Typical)
• Response Time: 8 ms (Typical)
• Color Gamut: 45% NTSC (Typical)
• Touchscreen: No

Tips

Before ordering, verify the exact screen size, resolution, connector type, and position to ensure compatibility with your device. Handle the panel by its edges to avoid damage from static electricity or pressure.
