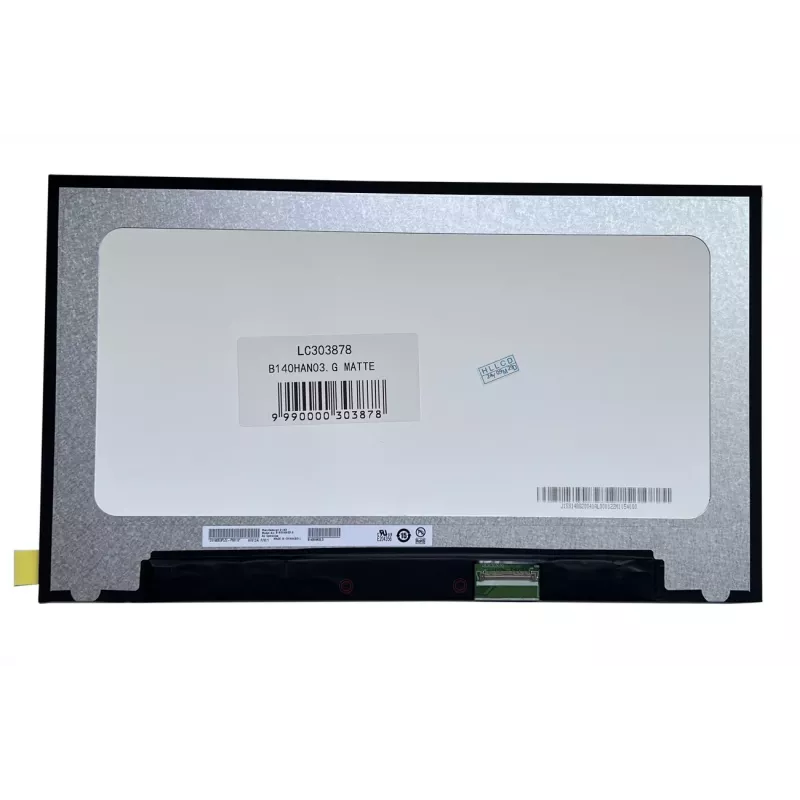

AUO beeldscherm 14,0", 1920x1080, 60Hz, mat, 40-pins, rechts, IPS

Replace a damaged laptop screen with this AUO 14.0-inch Full HD IPS panel. Ideal for technicians and DIY repairers working on notebooks that require a 1920x1080 display with a 40-pin eDP connector located on the bottom right when viewed from the back.

Key specifications

• Screen size: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS
• Refresh rate: 60 Hz
• Surface finish: Matte (anti-glare)
• Aspect ratio: 16:9
• Backlight type: LED
• Connector type: 40-pin eDP
• Connector location: Bottom right (viewed from back)
• Viewing angle: 178°/178°
• Color support: 16.7 million colors
• Touchscreen: No
• Frame/bezel included: No (bare panel)

Why choose it

The IPS technology provides wide viewing angles and accurate color reproduction, while the matte finish reduces glare for comfortable use in bright environments. This panel is a direct replacement for many laptops that use a 14.0-inch Full HD display with a 40-pin eDP connection.

Ideal use cases

• Laptop screen repair and replacement
• Upgrading a laptop from a lower resolution or TN panel
• Building a custom portable monitor project

Good to know

Before ordering, verify that your laptop's original screen has the same size, resolution, connector type, and connector location. This panel does not include a mounting frame or bezel; you will reuse the existing hardware from your laptop.
