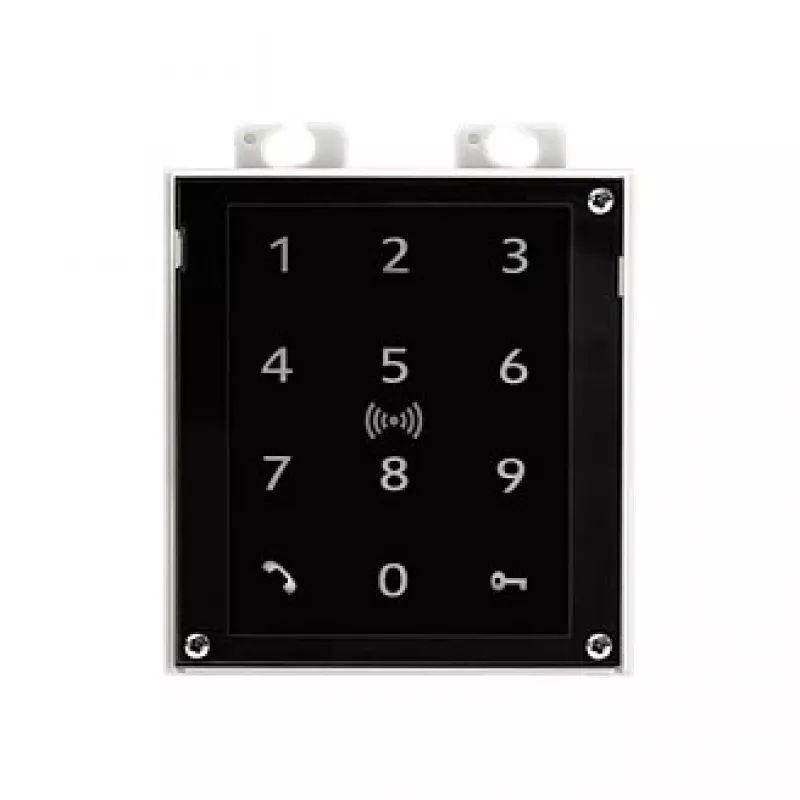

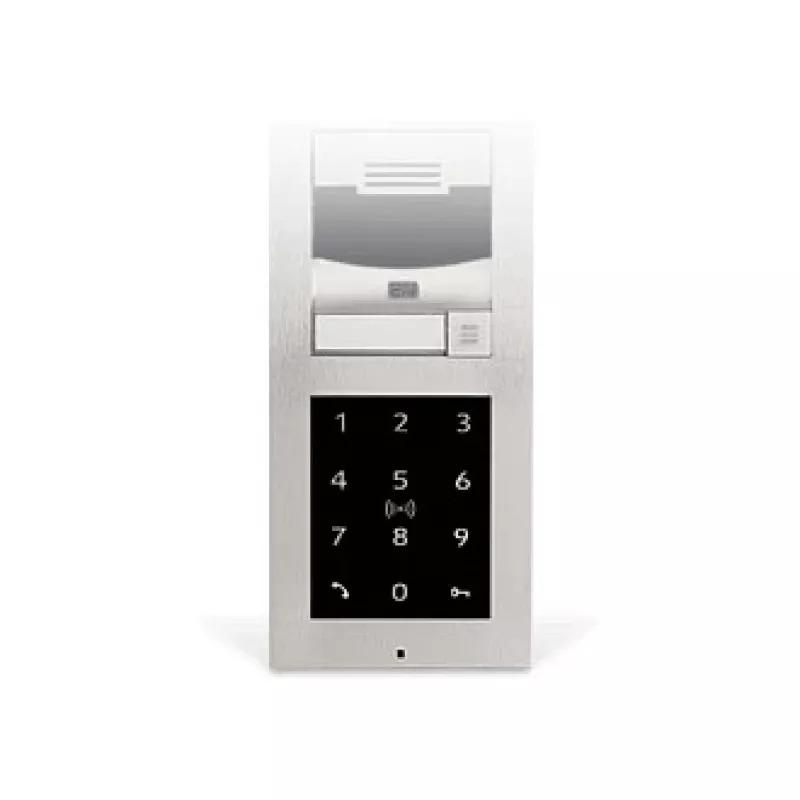

2N IP Verso Touch Keypad & RFID Reader 125kHz Secured 13,56MHz NFC PICard (91550946-S)

The 2N IP Verso Touch Keypad & RFID Reader is a high-security access control module designed for integration with 2N IP Verso intercom systems. It combines a capacitive touch keypad with dual-frequency RFID reading (125 kHz and 13.56 MHz) and NFC support, offering secure authentication via PIN codes, contactless cards, or mobile devices. Compatible with PICard and various secure RFID standards, this module is ideal for residential, commercial, and industrial access control applications.

Advantages

Enhanced security with support for MIFARE DESFire, HID iCLASS SE/Seos, and other encrypted protocols. The touch keypad features backlighting for easy use in low light. Durable anodized aluminum and plastic housing ensures long-lasting performance in harsh environments (IP54 rated when installed). Easy integration via internal bus connection to 2N IP Verso main units.

Suitable for

• Access control in office buildings, apartment complexes, and gated communities
• Secure entry points requiring multi-factor authentication (card + PIN)
• Integration with existing 2N IP Verso intercom systems
• Indoor and outdoor installations (with proper frame)

Key specifications

• Product Type: Access Control Module
• Compatibility: 2N IP Verso Intercom Systems
• Reader Technologies: RFID, NFC, Touch Keypad
• RFID Frequencies: 125 kHz, 13.56 MHz
• Supported 125 kHz Standards: EM-4100, HID Prox
• Supported 13.56 MHz Standards: ISO 14443A/B, ISO 15693, NFC
• Supported Secure RFID: MIFARE DESFire EV1/EV2/EV3, MIFARE Plus, HID iCLASS SE/Seos
• Keypad Type: Capacitive Touch Keypad with Backlight
• Interface: Internal Bus (to 2N IP Verso main unit)
• Power Supply: Via 2N IP Verso Main Unit
• Operating Temperature: -40°C to +60°C
• Protection Rating: IP54 (when installed in 2N IP Verso frame)
• Material: Anodized Aluminum, Durable Plastic
• LED Indicators: Yes (for status and feedback)
• Acoustic Signaling: Yes (Buzzer)
• Mounting Type: Module for 2N IP Verso Frames (flush or surface mount)
• Security Features: Secure RFID protocols, PIN code access

Recommendations

For optimal performance, use with 2N IP Verso main unit and appropriate frame. Ensure proper installation to maintain IP54 rating. Compatible with PICard and most 125 kHz/13.56 MHz credentials.
