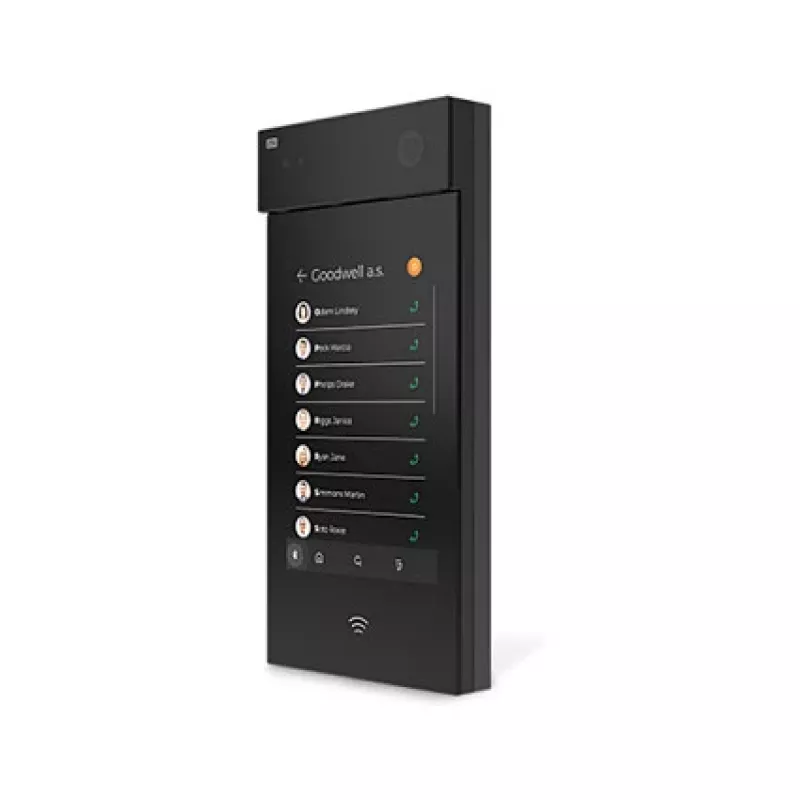

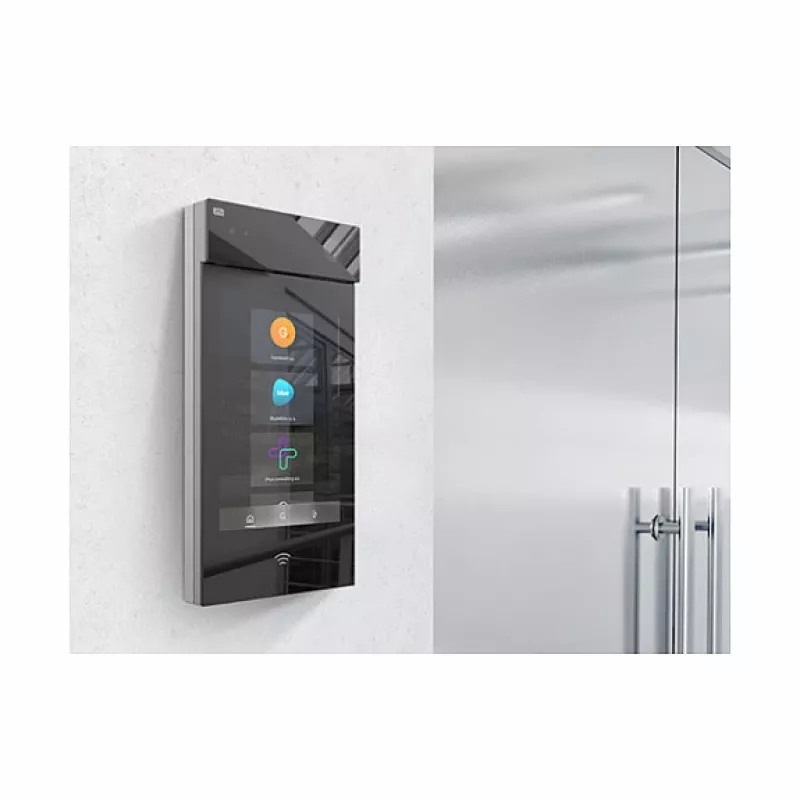

2N TELECOMMUNICATIONS 2N IP Style basiseenheid met beveiligde RFID (9157101-S)

Where most intercoms settle for a small display and basic keypad, the 2N IP Style Base Unit with Secured RFID brings a 10.1" full-HD touchscreen, a 5MP camera with wide-angle night vision, and a multi-technology secured RFID reader into one elegant, vandal-resistant panel. It is built for modern buildings that demand both security and a premium visitor experience.

Highlights

• 10.1" IPS LCD touchscreen with 1280 x 800 resolution for crisp visitor interaction
• 5MP camera with Full HD 1080p output, 144° horizontal / 126° vertical viewing angles, and IR night vision
• Secured RFID reader (13.56 MHz) supporting NFC, BLE, Seos, DESFire EV1/EV2/EV3, MIFARE Classic, Plus, Ultralight
• Full-duplex audio with acoustic echo cancellation for clear two-way communication
• Robust anodized aluminum body and hardened glass display, rated IP65 and IK08
• Power over Ethernet (IEEE 802.3af/at) for simple single-cable installation
• ONVIF Profile S & T compliance for seamless integration with video management systems

In daily use

Residents see and speak with visitors via the intuitive touchscreen, while the secured RFID reader grants fast, secure access using a wide range of credentials. The high-resolution camera delivers clear identification even in low light, and the durable construction withstands harsh weather and vandalism. With PoE and SIP support, it integrates effortlessly into existing IP networks and PBX systems.

Full specifications

• Display: 10.1" IPS LCD, 1280 x 800 pixels, capacitive multi-touch
• Camera: 5MP, Full HD 1080p, IR night vision, viewing angle 144° H / 126° V
• RFID: Secured 13.56 MHz, supports NFC, BLE, Seos, DESFire EV1/EV2/EV3, MIFARE Classic, Plus, Ultralight
• Audio: Full-duplex with acoustic echo cancellation
• Network: 10/100BASE-T Ethernet, SIP support
• Power: PoE IEEE 802.3af (Class 0) / 802.3at
• Interfaces: 2x passive relay outputs (NO/NC), 2x passive inputs
• Ratings: IP65, IK08
• Operating temperature: -30°C to +60°C
• Material: Anodized aluminum body, hardened glass display
• ONVIF: Profile S, Profile T
• Processor: Quad-core, Android OS

Final note

The 2N IP Style Base Unit with Secured RFID is a future-ready intercom that combines high-end access control, superb video quality, and a sleek design — ideal for premium residential and commercial projects.
