7 monitor Elfon OP-VM7F wit

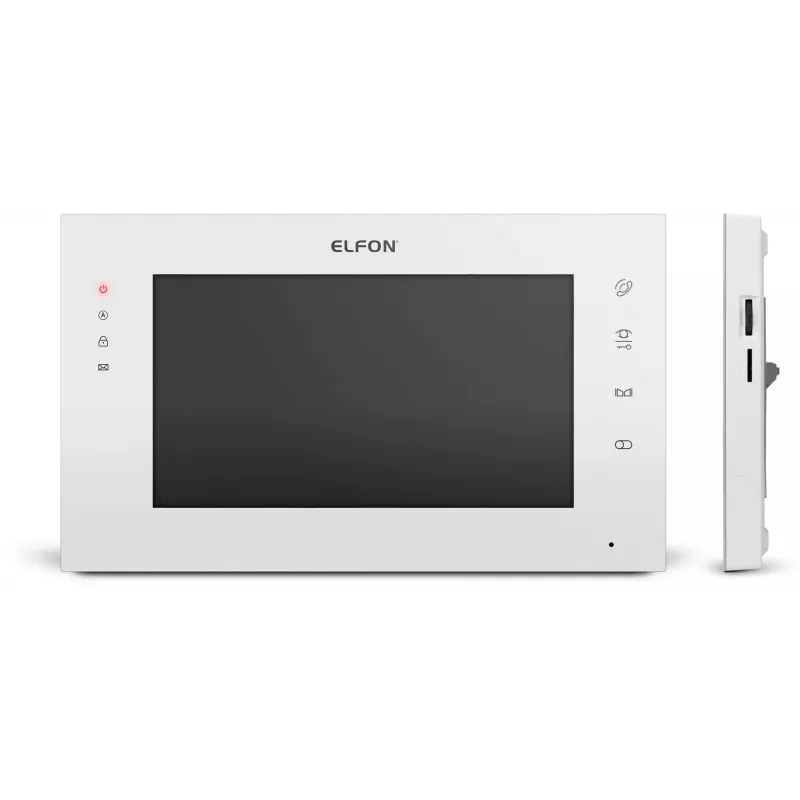

The Elfon OP-VM7F is a 7-inch color TFT LCD monitor designed for video door intercom systems. It offers hands-free operation with touch buttons, supporting up to 2 outdoor stations and 2 CCTV cameras. The monitor enables intercom communication between units, door release control for two gates/doors, and stores up to 80 photos internally. It also supports microSD cards up to 32GB for video recording. With motion detection for connected cameras, 16 selectable ringtones, and an OSD menu, this surface-mounted unit is ideal for residential or small commercial use. Powered by DC 12V, it consumes less than 1W in standby and less than 8W during operation.

Advantages

Compact 7-inch display with clear color TFT LCD technology. Easy touch-button operation and hands-free mode. Supports multiple video sources and door release for two gates. Expandable storage via microSD for video recording. Motion detection enhances security. Energy-efficient with low power consumption.

Suitable for

• Residential video door intercom systems
• Small offices or apartments
• Multi-unit buildings requiring monitor-to-monitor intercom

Key specifications

• Display: 7-inch color TFT LCD, 800x480 pixels
• Video Inputs: 2 outdoor stations + 2 CCTV cameras
• Intercom: Monitor-to-monitor
• Door Release: 2 gates/doors
• Memory: Internal up to 80 photos; microSD up to 32GB for video
• Power: DC 12V, <1W standby, <8W working
• Mounting: Surface-mounted, ABS plastic housing
• Color: White
• Connectivity: 4-wire system

Recommendations

For optimal performance, use with compatible Elfon outdoor stations and ensure proper 4-wire connection. The microSD card is recommended for continuous video recording.
