Aansluitdoos Dahua Technology PFA132

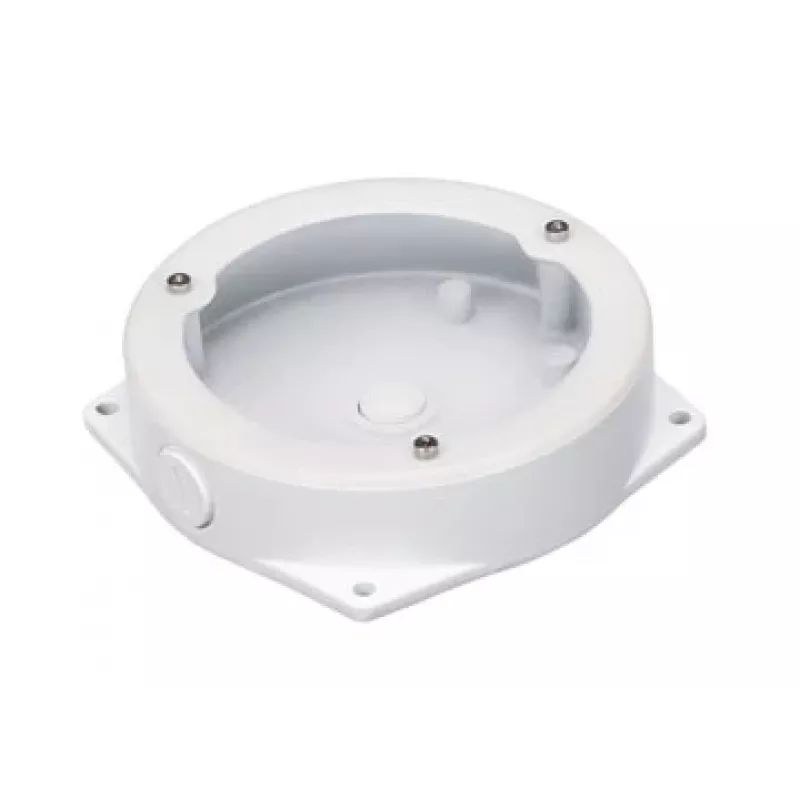

The Dahua Technology PFA132 junction box is an aluminum mounting accessory for security cameras, designed to provide a neat and integrated installation. Its compact dimensions (155 mm × 155 mm × 39 mm) and white finish allow it to blend with most environments while supporting a maximum camera weight of 3 kg. The product includes a waterproof design and a built-in junction box to protect connections.

Advantages

Constructed from aluminum for durability and light weight, the PFA132 offers a clean, integrated appearance and a waterproof enclosure that protects cable connections. Its compact size simplifies installation on a variety of surfaces while the 3 kg load capacity covers most standard surveillance cameras.

Suitable for

• Wall- or ceiling-mounted surveillance cameras
• Indoor and outdoor CCTV installations requiring a small, discreet junction box
• Installations needing protected cable and connector routing

Key specifications

• Material: Aluminum
• Dimensions (W×D×H): 155 mm × 155 mm × 39 mm
• Maximum supported weight: 3 kg
• Finish: White
• Feature: Integrated junction box, waterproof
• Brand: DAHUA
• Model (MPN): PFA132
• EAN: 6939554903496

How to use

Mount the PFA132 junction box to a suitable surface following local installation standards. Route camera cables into the built-in junction compartment and secure connections inside the box. Attach the camera to the junction box using appropriate screws and fasteners compatible with the camera base, ensuring the total camera weight does not exceed 3 kg. Verify seals and gaskets are correctly positioned to maintain the waterproof protection.

Recommendations

For best results, use corrosion-resistant fasteners when installing outdoors and follow Dahua’s installation guidelines for compatible camera models. Regularly inspect seals and cable entry points to ensure ongoing waterproofing and secure connections.
