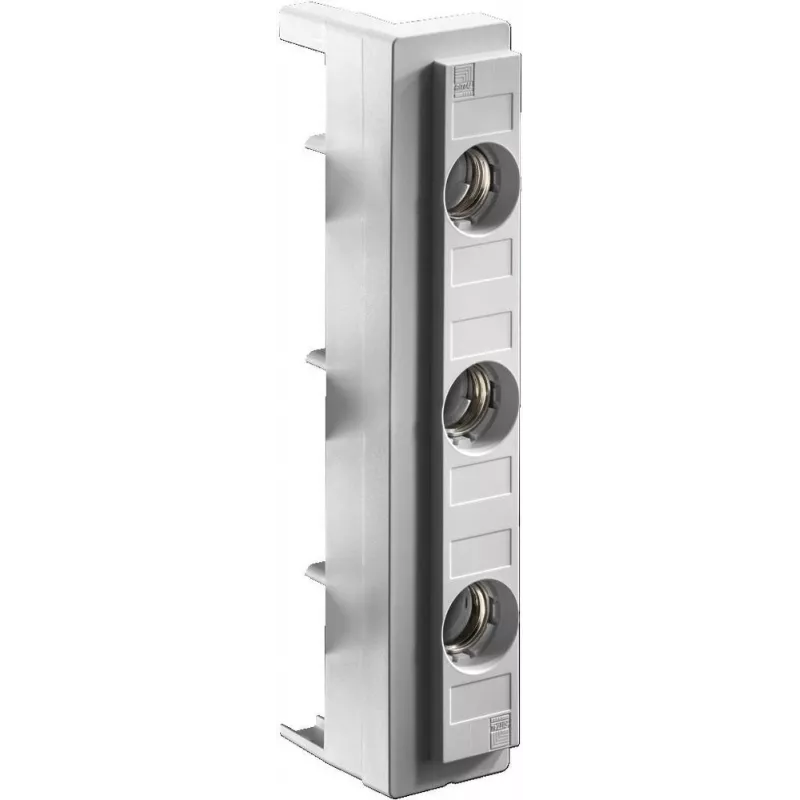

Aansluitplaat Rittal SV 3433.030 — polyamide behuizing, wit, 940 g, 10-pack

Rittal SV 3433.030 connector panel is a polyamide mounting panel designed for installation in electrical and control enclosures. Finished in white and supplied in a pack of 10, each panel provides a stable surface for connector modules, cable glands and interface components used in switchgear, control cabinets and automation panels. The panel is engineered to extend connection space laterally by 14 mm using an integrated cable duct option, and its construction includes contact hazard protection for safe cable routing and component mounting.

Advantages

The polyamide housing offers good mechanical strength and electrical insulation while keeping weight manageable at 940 g per panel. The white finish supports clear marking and component visibility. Packaged in sets of 10, these panels simplify bulk installation and spare-part provisioning. Built-in cable ducting and contact hazard protection reduce the need for additional accessories and help maintain separation between live connections and cabinet interiors.

Suitable for

Key specifications

How to use

Install the connector panel into the designated opening of the enclosure following cabinet manufacturer mounting guidelines. Position connectors, cable glands and interface components onto the panel and secure them according to their mounting instructions. Route cables through the integrated side cable duct when additional lateral space is needed; ensure proper strain relief and maintain required clearances from live parts. Verify that contact hazard protection remains in place after assembly to preserve insulation and safety features.

Recommendations

For reliable and safe operation, use the panels in enclosures with compatible mounting dimensions and observe relevant electrical installation standards. When performing installations, check connector and cable gland cutout dimensions before fitting and use appropriate sealing and grounding measures as required by the application.
