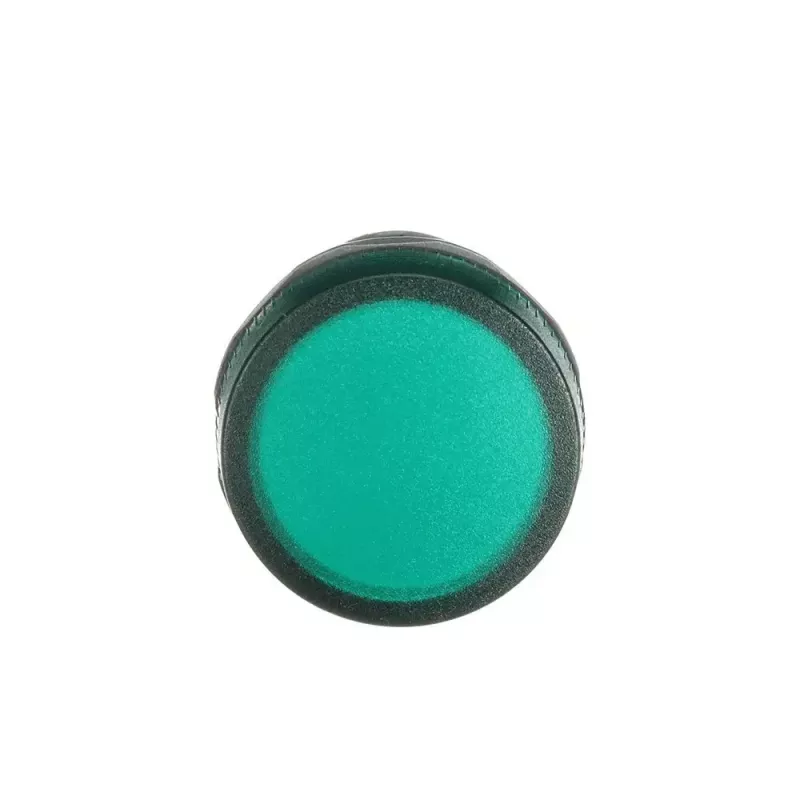

ABB CL2-523G groene LED-indicatielamp, 230V AC, 22mm montage 1SFA619403R5232

The ABB CL2-523G stands out as a compact 22mm panel-mount indicator light that pairs a vivid green LED with direct 230V AC operation, eliminating the need for a separate transformer. Its screw terminals and black bezel make it a straightforward choice for control panels where clear status signaling is required.

Highlights

• Green LED light source with a lifespan exceeding 100,000 hours
• Operates directly on 230V AC supply voltage
• 22mm mounting diameter fits standard panel cutouts
• Front protection rated IP66, terminals rated IP20
• Screw terminals for secure wiring

In daily use

This indicator light is built for continuous operation in industrial environments. The LED consumes approximately 15 mA, keeping energy use low while providing bright, reliable illumination. The black plastic bezel blends with most panel designs, and the wide operating temperature range from -25°C to +70°C ensures dependable performance in demanding conditions.

Full specifications

• Product Type: Indicator Light
• Light Source: LED
• Light Colour: Green
• Supply Voltage: 230 V AC
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Diameter: 22 mm
• Terminal Type: Screw Terminals
• Degree of Protection (Front): IP66
• Degree of Protection (Terminals): IP20
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -30 to +85 °C
• Lifespan (LED): >100,000 hours
• Current Consumption: 15 mA (approx.)
• Series: Compact Range CL2
• Standards: IEC/EN 60947-5-1, UL 508, CSA 22.2 No. 14
• Housing Material: Plastic
• Bezel Colour: Black

Final note

The CL2-523G is a reliable component for machine builders and panel shops needing a durable, energy-efficient status indicator with straightforward installation.
