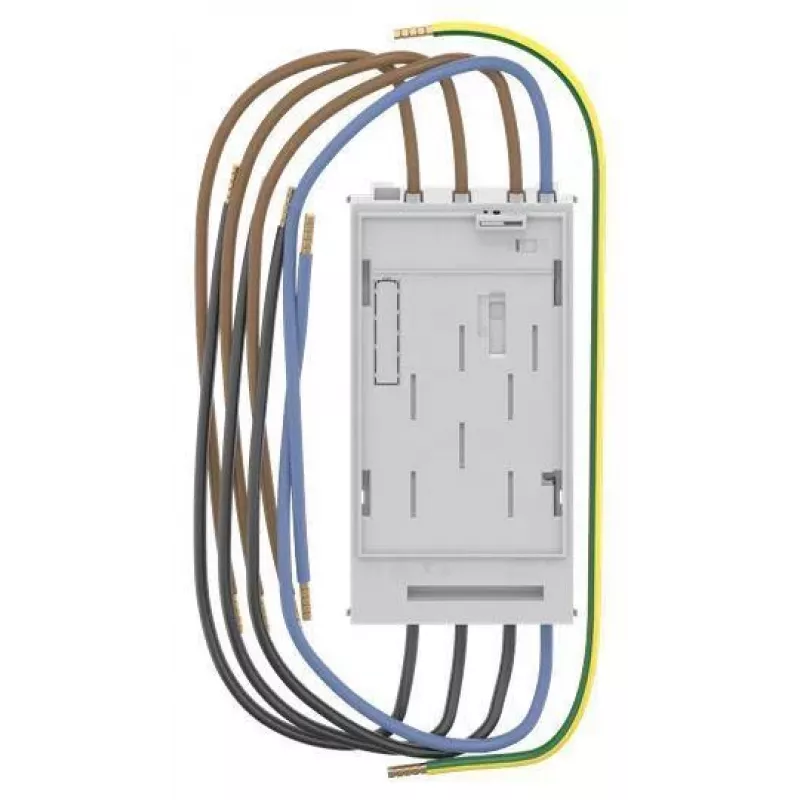

ABB ZBB16L BKE-I verzamelrail-aansluitset 5-polig 16 mm² lang

The ABB ZBB16L BKE-I busbar connection kit is a high-quality accessory designed for low-voltage distribution boards. It enables secure and reliable connection of conductors to ABB BKE-I busbar systems, ensuring efficient power distribution in industrial and commercial installations.

Advantages

This kit offers a fully insulated design for enhanced safety, easy plug-in installation onto busbars, and screw terminals for secure conductor connection. Its robust construction with copper conductors and polyamide housing ensures long-lasting performance.

Suitable for

• Low-voltage distribution boards
• ABB BKE-I busbar systems
• 5-pole applications requiring 16 mm² conductor cross-section
• Rated current up to 63 A

Key specifications

• Product Type: Busbar Connection Kit
• Number of Poles: 5-pole
• Conductor Cross-Section: 16 mm²
• Rated Current (In): 63 A
• Rated Operational Voltage (Ue): 400 V AC
• Rated Insulation Voltage (Ui): 690 V AC
• Connection Method: Screw Terminal (conductor), Plug-in (busbar)
• Compatibility: ABB BKE-I Busbar Systems
• Insulation Type: Fully Insulated
• Material: Copper (conductors), Polyamide (housing/insulation)
• Length Designation: Long
• Series: ZBB
• Degree of Protection: IP20
• Standard Compliance: IEC/EN 61439-1
• Mounting Type: Direct on Busbar
• Color: Grey/Black
• Operating Temperature Range: -25 to +55 °C

Recommendations

For optimal performance, ensure compatibility with your ABB BKE-I busbar system and follow installation guidelines. This kit is ideal for professional electricians and system integrators.
