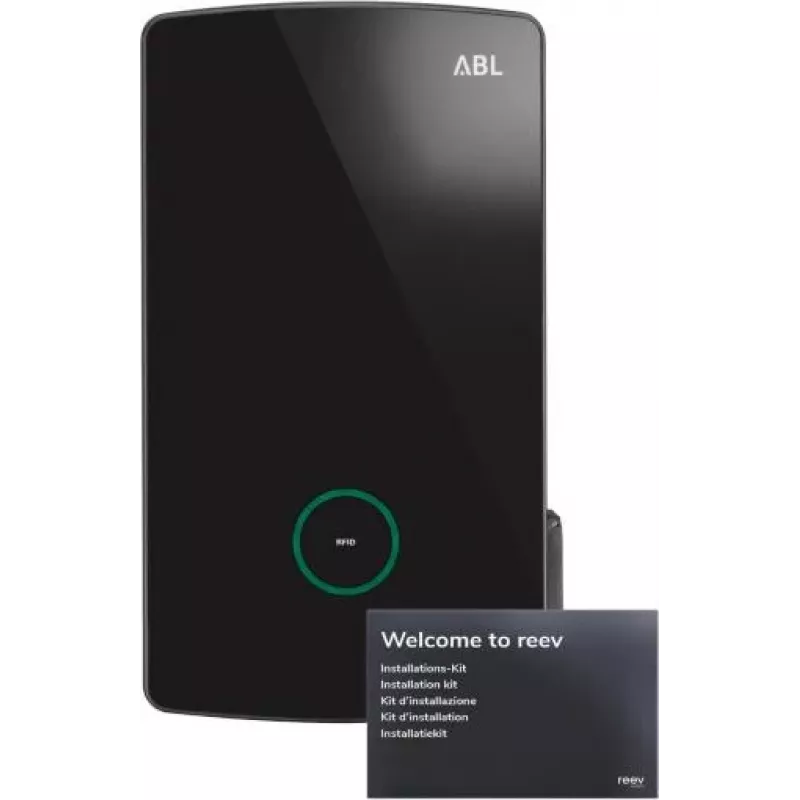

ABL eM4 Single Wallbox controller 22 kW Type 2 stopcontact afsluitbaar

Charging an electric vehicle at home or at a semi-public location often comes with concerns about safety, reliability, and compatibility. The ABL eM4 Single Wallbox Controller with a 22 kW Type 2 socket addresses these issues by providing a robust, future-proof charging solution that works with any Mode 3 charging cable. Its integrated DC fault current detection and electrically lockable socket ensure safe and secure charging sessions, while the durable polycarbonate housing withstands harsh environments.

Who is it for

This wallbox is ideal for private households, apartment buildings, and commercial premises where a fixed charging cable is not desired. It suits EV drivers who prefer to use their own Type 2 charging cable and require a high-power, three-phase charging point. The lockable socket prevents unauthorized use and cable theft during charging, making it perfect for shared or outdoor installations.

Main features

• 22 kW charging power via three-phase 400 V AC, 32 A per phase
• Type 2 socket (IEC 62196-2) compatible with all standard Mode 3 charging cables
• Integrated DC fault current detection (RCMU > 6 mA) for enhanced safety
• Electrically lockable socket during charging to prevent cable theft
• Robust IP54 and IK08 rated polycarbonate housing for indoor and outdoor use
• Wide operating temperature range from -30°C to +50°C
• LED status indicator for clear charging state display
• Simple plug-and-charge operation without complex authentication

Specifications

• Charging mode: Mode 3
• Connector type: Type 2 socket
• Number of charging points: 1
• Input voltage: 400 V AC (3-phase)
• Input current: 32 A per phase
• Frequency: 50 Hz
• Protection class: IP54
• Impact resistance: IK08
• DC fault current detection: Integrated (RCMU > 6 mA)
• External RCD requirement: Type A required upstream
• Operating temperature: -30°C to +50°C
• Housing material: Polycarbonate
• Installation type: Wall-mounted
• Status indicator: LED display
• Access control: Plug & Charge
• Socket locking: Electrically lockable during charging
• Cable included: No (socket version)
• Backend connectivity: None (basic model)

Tips

For optimal performance, have a qualified electrician install the wallbox with a dedicated three-phase circuit and a Type A RCD upstream. Use a high-quality Mode 3 charging cable to ensure reliable charging and to take full advantage of the 22 kW output.
