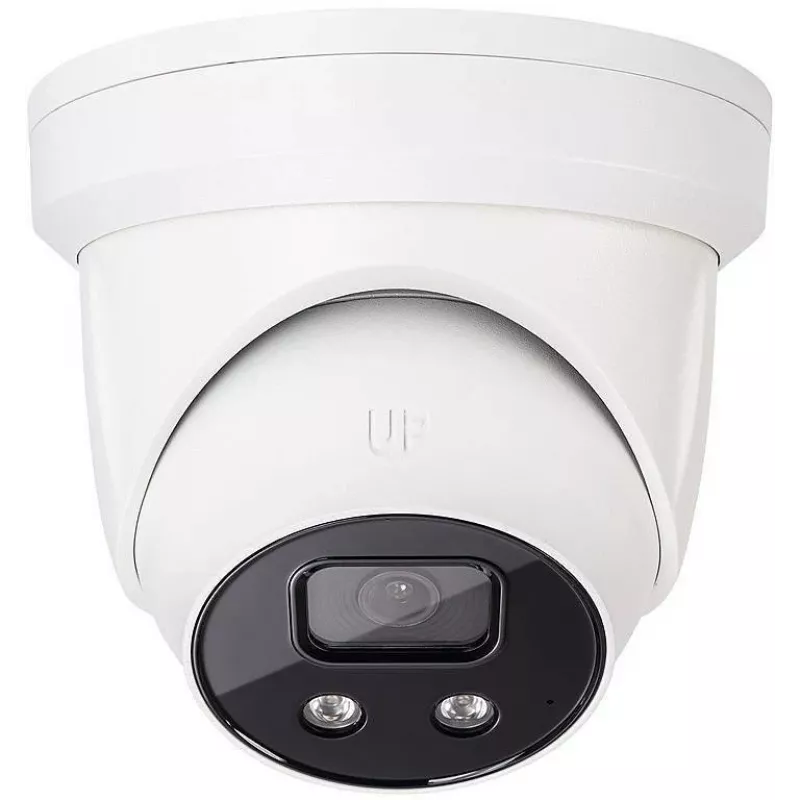

ABUS IPCB54511B 4 MP IP-domecamera met 4 mm-objectief

Capture every detail with the ABUS IPCB54511B, featuring a 4-megapixel sensor that delivers crisp 2560 x 1440 video at 25 fps. Its 4 mm fixed lens with an 84° field of view and 120 dB True WDR ensures clear images even in challenging lighting, while the built-in IR illuminator provides night vision up to 30 metres. Housed in an IP67 and IK10 rated enclosure, this dome camera is built to withstand harsh weather and vandalism, making it ideal for outdoor surveillance.

Overview

The ABUS IPCB54511B is a professional IP dome camera engineered for reliable 24/7 monitoring. It utilises a 1/3" progressive scan CMOS sensor to produce high-definition 4 MP footage. The camera supports H.265, H.264, and MJPEG compression, optimising bandwidth and storage without compromising image quality. With Power over Ethernet (IEEE 802.3af), installation is simplified—a single network cable carries both data and power. A microSD card slot (up to 128 GB) enables local recording, while the built-in microphone captures audio. ONVIF Profile S, G, and T compliance ensures seamless integration with third-party video management systems.

What stands out

• 4 MP resolution (2560 x 1440) for sharp, detailed images
• 120 dB True WDR handles high-contrast scenes, revealing details in shadows and highlights
• IR night vision up to 30 m for round-the-clock surveillance
• IP67 weatherproof and IK10 vandal-resistant housing for outdoor durability
• H.265 compression reduces storage and bandwidth needs
• Built-in microphone for audio recording
• PoE support for easy, single-cable installation
• ONVIF compliance for flexible integration

Technical details

• Sensor: 1/3" Progressive Scan CMOS
• Lens: Fixed focal, 4 mm, F2.0, horizontal field of view 84°
• Video compression: H.265, H.264, MJPEG
• Max frame rate: 25 fps at 2560 x 1440
• WDR: 120 dB True WDR
• Noise reduction: 3D DNR
• Night vision: IR up to 30 m
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: PoE (IEEE 802.3af) or 12 V DC
• Local storage: MicroSD slot (up to 128 GB)
• Audio: Built-in microphone
• Ingress protection: IP67
• Vandal resistance: IK10
• Operating temperature: -30 °C to +60 °C
• ONVIF: Profile S, G, T

Our verdict

The ABUS IPCB54511B combines high-resolution imaging, robust construction, and advanced features like True WDR and PoE, making it a top choice for professional outdoor surveillance. Its ONVIF compliance and local storage options add flexibility, while the IP67 and IK10 ratings ensure long-term reliability in demanding environments.
