IP-beveiligingscamera ABUS TVIP44511 2688 x 1520 pixel binnen & buiten

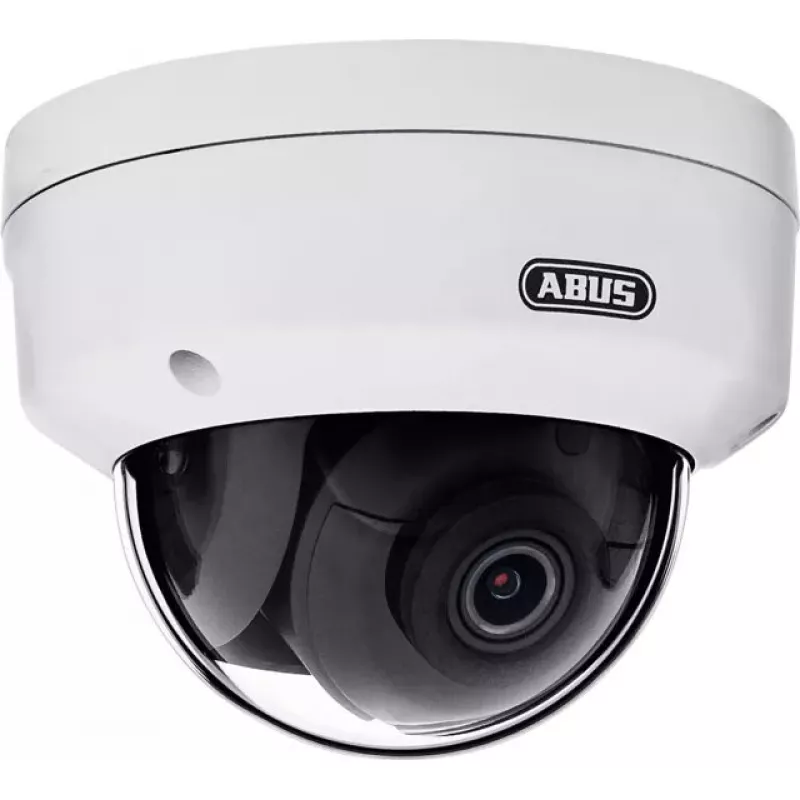

The ABUS TVIP44511 is a compact 4 MP PoE dome camera for indoor and outdoor surveillance. It records at 2688 x 1520 pixels and provides a wide field of view with a 2.8 mm fixed focal length and a horizontal angle of approximately 103°. The camera supports Power over Ethernet (PoE) for simplified installation, a CMOS sensor for clear images, WDR (120 dB) for challenging lighting conditions and infrared LEDs for night-time visibility. It is designed for wall mounting and can be accessed from a PC/browser, recorder or via the ABUS Link Station mobile app.

Advantages

The camera uses PoE technology so power and data run over a single network cable, reducing installation complexity and cost in hard-to-reach locations. Intelligent object detection differentiates between persons and vehicles, reducing false alarms and optimising storage. Fast initial setup through the web interface or ABUS IP Installer provides a live image within minutes, and WDR plus IR LEDs ensure consistently sharp images in both backlit scenes and low-light conditions.

Suitable for

• Office corridors and lobbies
• Small business premises and retail spaces
• Home entryways and yards
• Indoor public areas and sheltered outdoor locations

Key specifications

• Resolution: 2688 x 1520 pixels (4 MP)
• Lens: fixed 2.8 mm focal length
• Horizontal / vertical viewing angle: approx. 103° / 55°
• Sensor type: CMOS
• WDR: 120 dB
• Night vision: infrared LEDs
• Power: Power over Ethernet (PoE)
• Mounting: mini dome, wall mounting
• Connectivity: network (wired), compatible with recorder/NAS/microSD storage
• Brand / MPN / EAN: ABUS / TVIP44511 / 4043158200430

How to use

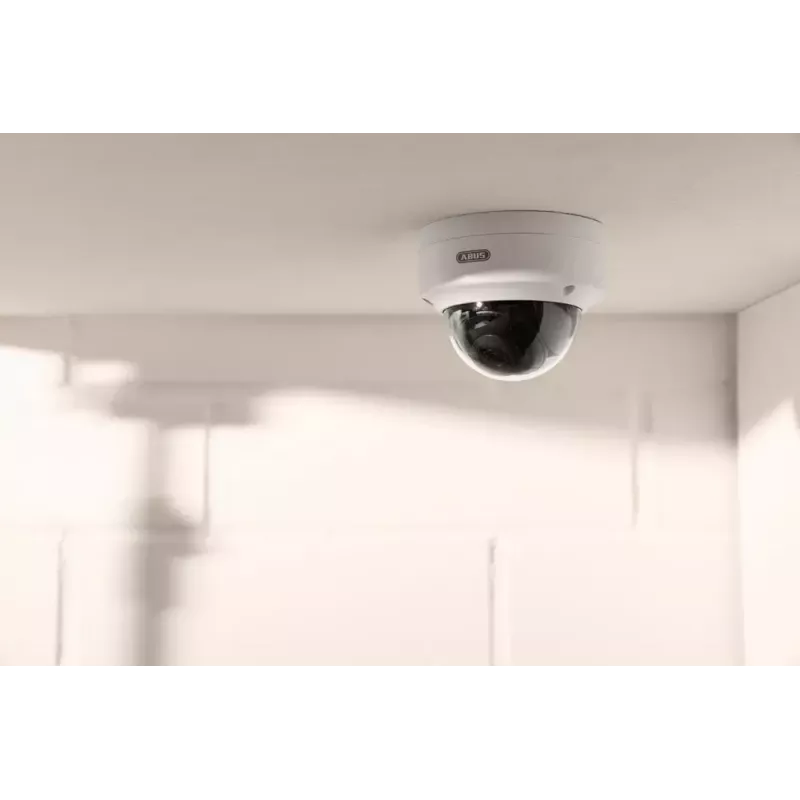

Mount the mini dome camera on a suitable wall or eave and connect it to a PoE-capable switch, router or recorder using a single Ethernet cable to provide power and network access. Access the camera’s web interface from a PC or use the ABUS IP Installer to view the live image and complete initial configuration such as date/time, network settings, privacy zones and recording schedules. For mobile access, install the ABUS Link Station app and pair the device; the Lite app allows limited monthly streaming while the Pro version provides unlimited access.

Recommendations

For optimal results install the camera at a height and angle that minimise direct sunlight in the field of view and avoid obstructions. Use PoE to simplify cabling and select recorder or NAS storage with efficient compression settings to make use of the camera’s person/vehicle detection and reduce storage requirements.
