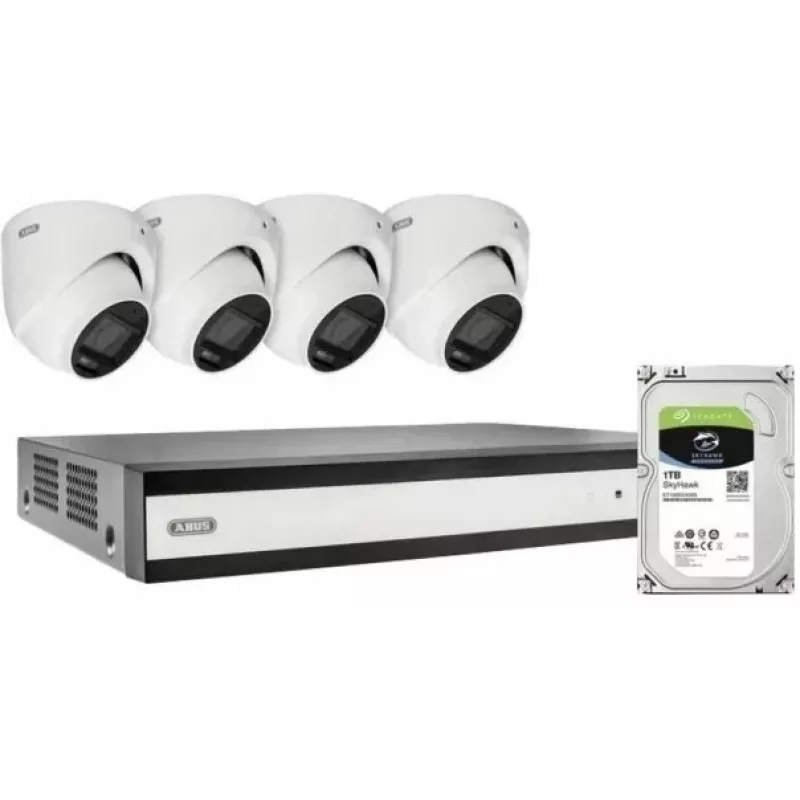

ABUS SECURITY-CENTER TVVR33843D 8-kanaals hybride analoog/IP-recorderset met 4 mini-dome camera's

The ABUS SECURITY-CENTER TVVR33843D stands apart from conventional surveillance kits by combining an 8-channel hybrid recorder with four analog mini-dome cameras in one ready-to-deploy package. Unlike basic DVRs limited to a single signal type, this unit accepts HD-TVI, CVI, AHD, and CVBS cameras on its BNC inputs while also supporting up to four IP cameras—expandable to twelve IP channels if analog inputs are unused. That flexibility means you can start with the included cameras and later add higher-resolution IP models without replacing the recorder. The recorder captures analog footage at up to 5 MPx (2560 x 1944) and IP streams at up to 6 MPx (3072 x 2048), both with efficient H.265+ compression to save storage space. A single SATA bay supports hard drives up to 10 TB (not included), giving you weeks of retention for a small business or residential property. Remote viewing is straightforward via the ABUS Link Station App, web browser, or CMS software, so you can check live feeds from anywhere.

Highlights

• Hybrid 8-channel recorder: 8 BNC inputs (HD-TVI/CVI/AHD/CVBS) + 4 IP channels (up to 12 IP when BNC unused)
• Complete set includes 4 analog mini-dome cameras, ready for immediate installation
• Records analog up to 5 MPx @ 12 fps and IP up to 6 MPx @ 25 fps
• H.265+/H.265/H.264+/H.264 compression for efficient storage
• 1 SATA bay supports up to 10 TB HDD (not included)
• Remote access via ABUS Link Station App, web browser, or CMS
• 4 alarm inputs and 1 alarm output for integration with sensors
• HDMI and VGA outputs for local monitoring

In daily use

Setting up the TVVR33843D is quick thanks to the included cameras and intuitive on-screen menus. The four mini-dome cameras are compact and unobtrusive, suitable for indoor ceilings or walls. Motion detection and scheduled recording modes let you tailor capture to your needs, while alarm inputs can trigger recording or notifications when doors or windows are opened. The recorder's fanless design and operating range of -10°C to +55°C ensure reliable performance in garages, shops, or server rooms. Two USB 2.0 ports allow for firmware updates and easy backup of footage to a flash drive. The 10/100 Mbps Ethernet port provides stable network connectivity for remote viewing and configuration.

Full specifications

• Brand: ABUS SECURITY-CENTER
• Model: TVVR33843D
• MPN: 85258900
• EAN: 4003318841477
• Video Input Channels: 8 BNC + 4 IP (expandable to 12 IP)
• Max Analog Resolution: 5 MPx (2560 x 1944) @ 12 fps
• Max IP Resolution: 6 MPx (3072 x 2048) @ 25 fps
• Video Compression: H.265+, H.265, H.264+, H.264
• Video Outputs: 1 x HDMI, 1 x VGA
• Audio Inputs: 1 x RCA
• Audio Outputs: 1 x RCA
• Alarm Inputs: 4
• Alarm Outputs: 1
• Storage: 1 x SATA (up to 10 TB, HDD not included)
• Network: 1 x RJ45 10/100 Mbps Ethernet
• USB Ports: 2 x USB 2.0
• Power Supply: 12 V DC
• Operating Temperature: -10°C to +55°C
• Remote Access: ABUS Link Station App, Web Browser, CMS Software
• Recording Modes: Manual, Schedule, Motion Detection, Alarm

Final note

The ABUS SECURITY-CENTER TVVR33843D is a future-proof hybrid solution that bridges analog and IP worlds, making it ideal for users who want to upgrade gradually without discarding existing cameras. With its robust feature set and included camera bundle, it delivers professional-grade surveillance in a cost-effective package.
