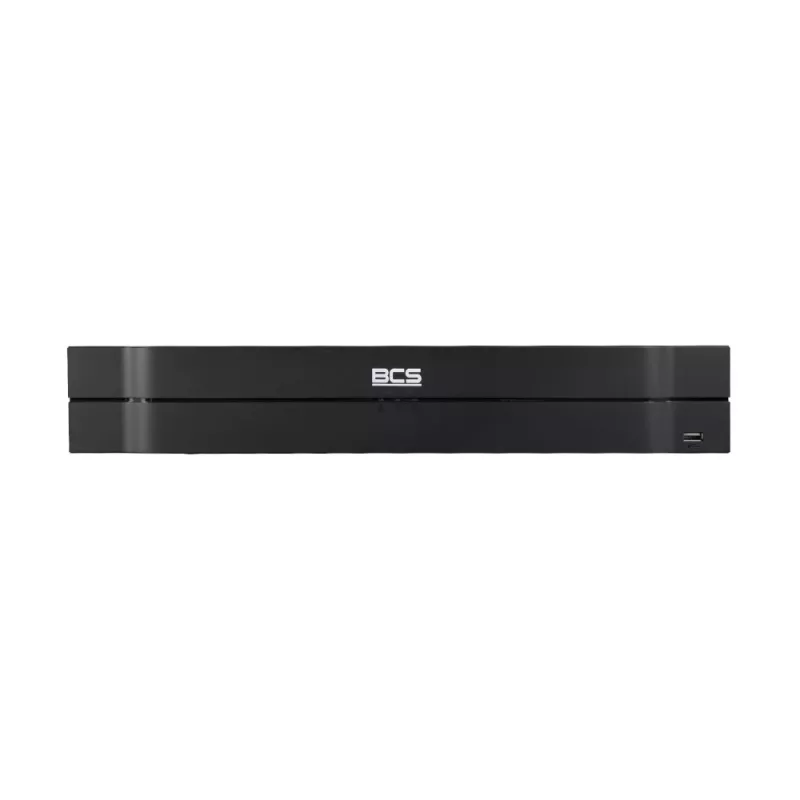

BCS 16-kanaals 8K AI NVR BCS-L-NVR1604-A-8K-Ai2

The BCS-L-NVR1604-A-8K-Ai2 is a high-performance 16-channel network video recorder (NVR) designed for advanced surveillance systems. It supports up to 32MP (8K) recording resolution and features powerful AI capabilities including perimeter protection, face detection, ANPR, people counting, and heat mapping. With 4 SATA bays supporting up to 64TB total storage, this NVR is ideal for medium to large-scale security installations.

Advantages

This NVR delivers exceptional video quality with 8K HDMI output and efficient H.265+ compression to save bandwidth and storage. The embedded AI analytics reduce false alarms and enhance security monitoring. Its robust design ensures reliable 24/7 operation.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Public facilities and parking lots

Key specifications

• 16 IP camera channels
• Max recording resolution: 32MP (8K)
• Decoding: 8-ch 8MP@25fps / 16-ch 4MP@25fps
• Video compression: H.265+/H.265/H.264+/H.264
• 4 SATA bays, up to 16TB each (64TB total)
• 1x HDMI (up to 8K), 1x VGA output
• AI: Perimeter protection, SMD Plus, face detection, ANPR, people counting, heat map
• 1x Gigabit Ethernet, 1x USB 3.0, 2x USB 2.0
• 1x RCA audio in/out, 4 alarm in / 2 alarm out
• Power: DC12V/4A, consumption <13.2W (without HDD)
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with BCS IP cameras supporting AI features and use high-quality SATA HDDs rated for surveillance. Ensure proper ventilation and stable power supply.
