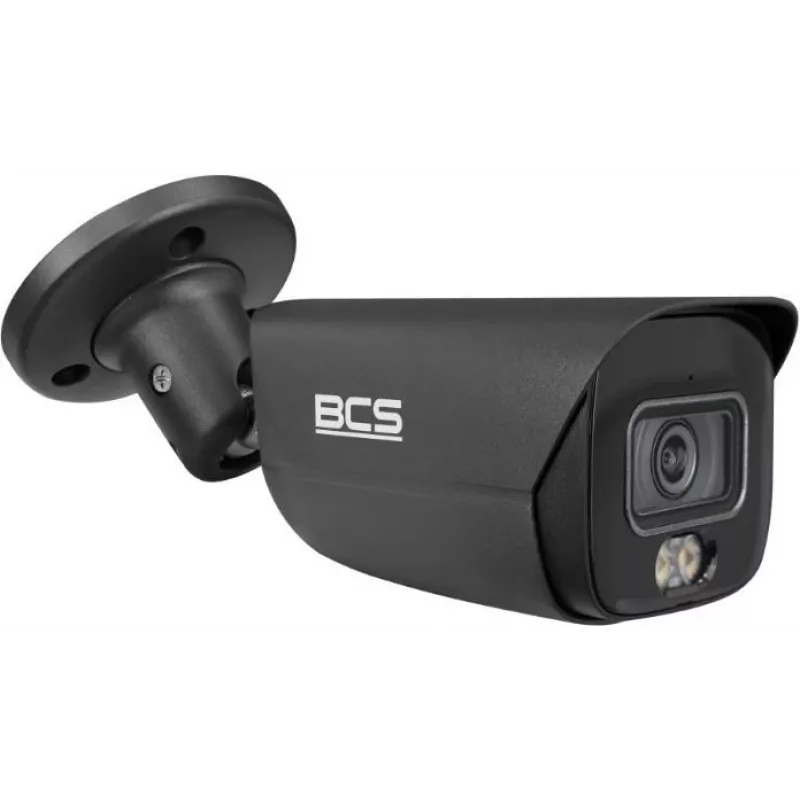

BCS LINE 5MP IR bulletcamera met AI, 2,8mm vaste brandpuntsafstand, IP67, IK10, PoE

The BCS LINE BCS-L-TIP28FCR5L5-Ai1-G is a high-performance 5 Megapixel IR bullet camera designed for professional outdoor surveillance. Featuring advanced AI analytics, Smart IR up to 50m, and robust IP67/IK10 construction, it delivers reliable 24/7 security in demanding environments.

Advantages

With 5MP resolution and a 2.8mm fixed lens offering a 100° horizontal field of view, this camera captures wide-area scenes with exceptional clarity. The built-in AI capabilities (Perimeter Protection, SMD Plus, Human/Vehicle Classification) reduce false alarms and enhance security efficiency. True Day/Night functionality with Smart IR ensures clear images even in complete darkness.

Suitable for

• Outdoor perimeter surveillance for commercial and industrial sites
• Parking lots, warehouses, and building entrances
• Areas requiring high-definition video and intelligent motion detection

Key specifications

• Sensor: 1/2.7" 5MP Progressive CMOS
• Max Resolution: 2592 x 1944 (5MP)
• Lens: 2.8mm Fixed, F1.6
• Horizontal FoV: ~100°
• IR Range: Up to 50m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Power: DC 12V / PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in Microphone
• Local Storage: MicroSD slot up to 256GB
• AI Features: Perimeter Protection, SMD Plus, Human/Vehicle Classification
• WDR: 120dB
• Minimum Illumination: 0.008 Lux (Color), 0 Lux (IR on)
• Network: 1x RJ-45 10/100Mbps
• Operating Temperature: -30°C to +60°C
• Housing: Metal

Recommendations

For optimal performance, use a PoE switch or injector (802.3af compliant). Pair with a compatible NVR or BCS LINE recorder to fully utilize AI analytics. Ensure proper mounting height and angle to maximize the 100° field of view.
