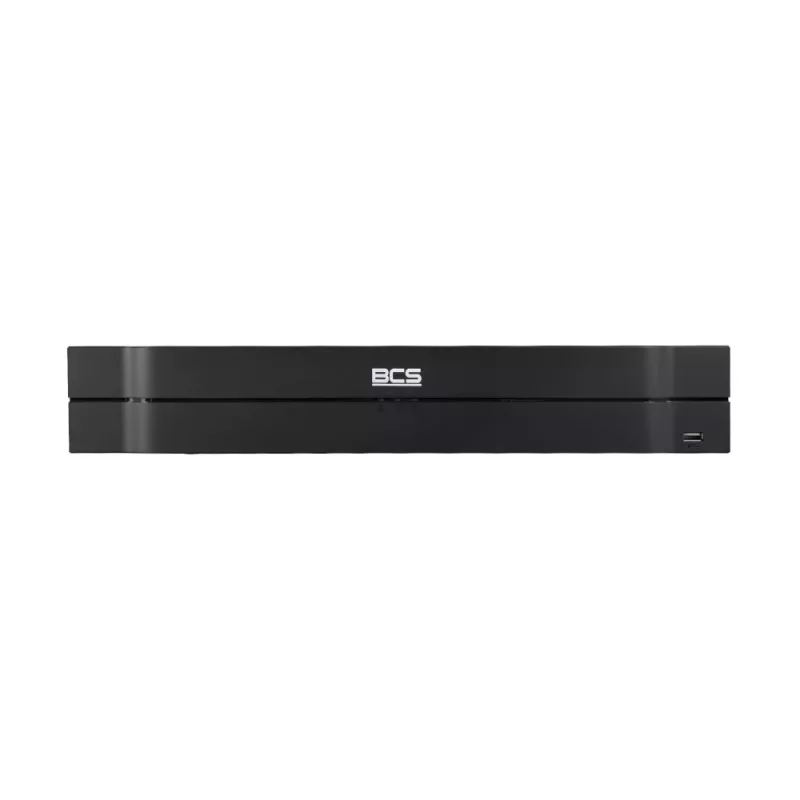

BCS 16-kanaals IP NVR BCS-L-NVR1604-A-4K-Ai(2) 4K H.265+ netwerkvideorecorder met AI

The BCS-L-NVR1604-A-4K-Ai(2) is a high-performance 16-channel IP network video recorder supporting up to 12MP (4K) resolution. With H.265+ compression, AI features including perimeter protection, SMD Plus, and face detection, it offers advanced surveillance capabilities for professional security systems. The NVR supports up to 20TB of storage (2x SATA), 160 Mbps incoming bandwidth, and dual-way audio.

Advantages

AI-powered analytics reduce false alarms and enhance security. H.265+ compression saves bandwidth and storage. Supports up to 16-channel synchronous playback for efficient review. Easy mobile access via BCS Manager or DMSS apps.

Suitable for

• Medium to large retail stores
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Any site requiring 16 IP cameras with AI analytics

Key specifications

• Video Input Channels: 16 IP channels
• Max Recording Resolution: Up to 12MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 64 Mbps
• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio Input/Output: 1x RCA In / 1x RCA Out (Two-way Talk)
• HDD Support: 2 SATA ports, up to 10TB per HDD (20TB total)
• Network Interface: 1x RJ-45 10/100/1000 Mbps Ethernet
• USB Ports: 1x USB 2.0 (front), 1x USB 2.0 (rear), 1x USB 3.0 (rear)
• AI Features: Perimeter Protection (4 Ch), SMD Plus (8 Ch), Face Detection (2 Ch), AI Search
• Synchronous Playback: Up to 16 channels
• Alarm Input/Output: 4x In / 2x Out
• Power Supply: DC 12V / 4A
• Power Consumption: <10W (without HDD)
• Operating System: Embedded Linux
• Mobile Client Support: BCS Manager, DMSS (iOS/Android)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use with BCS PoE switches and compatible IP cameras. Ensure proper ventilation and use a UPS for uninterrupted operation.
