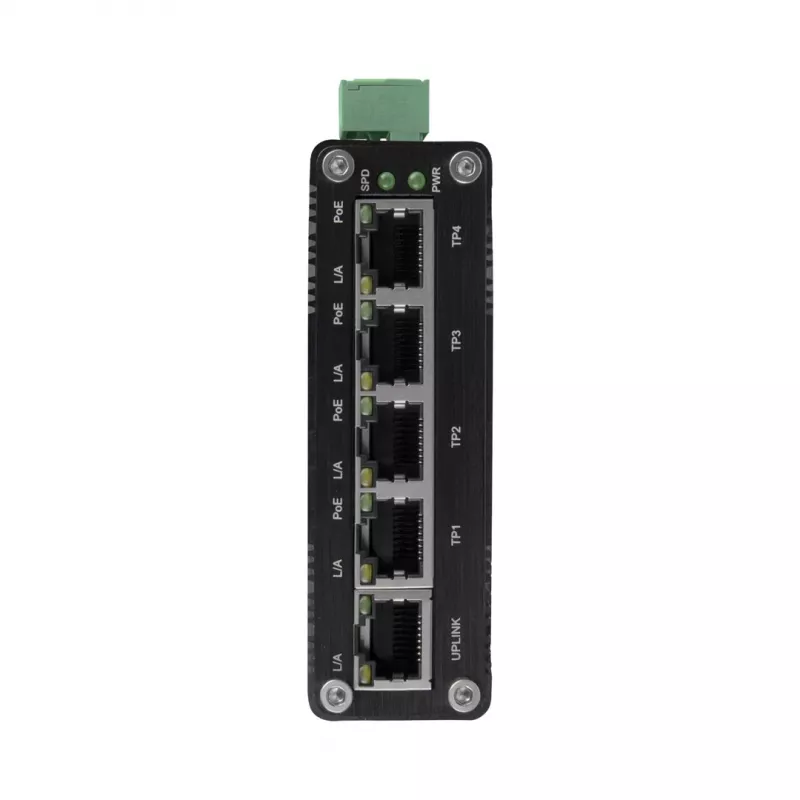

BCS ISP04G01G industriële 4-poorts PoE+ switch met 1 Gigabit uplink

The BCS ISP04G01G is a rugged industrial PoE+ switch designed for reliable network connectivity in harsh environments. With 4 PoE ports and 1 Gigabit uplink, it delivers power and data to devices such as IP cameras, wireless access points, and VoIP phones. Built with an aluminum alloy housing and supporting DIN rail or wall mounting, this switch is ideal for industrial automation, surveillance, and outdoor installations.

Advantages

Robust design with wide operating temperature range (-40°C to +75°C) ensures stable performance in extreme conditions. PoE+ support (IEEE 802.3af/at) provides up to 30W per port with a total budget of 60W, simplifying installation by eliminating separate power cables. The switch offers high ESD and surge protection for enhanced reliability.

Suitable for

• Industrial Ethernet networks
• IP surveillance systems
• Wireless access point deployments
• VoIP phone installations
• Automation and control systems

Key specifications

• 4 x 10/100Mbps PoE+ ports
• 1 x 10/100/1000Mbps Gigabit uplink
• PoE budget: 60W total, up to 30W per port
• Switching capacity: 1.8 Gbps
• Forwarding rate: 1.34 Mpps
• MAC address table: 2K
• Power input: DC 48-57V
• Operating temperature: -40°C to +75°C
• Mounting: DIN rail / wall-mount
• Housing: Aluminum alloy
• ESD protection: 8KV
• Surge protection: 4KV

Recommendations

For optimal performance, use a regulated DC power supply (48-57V) and ensure proper grounding. This switch is suitable for both indoor and outdoor use when installed in a weatherproof enclosure.
