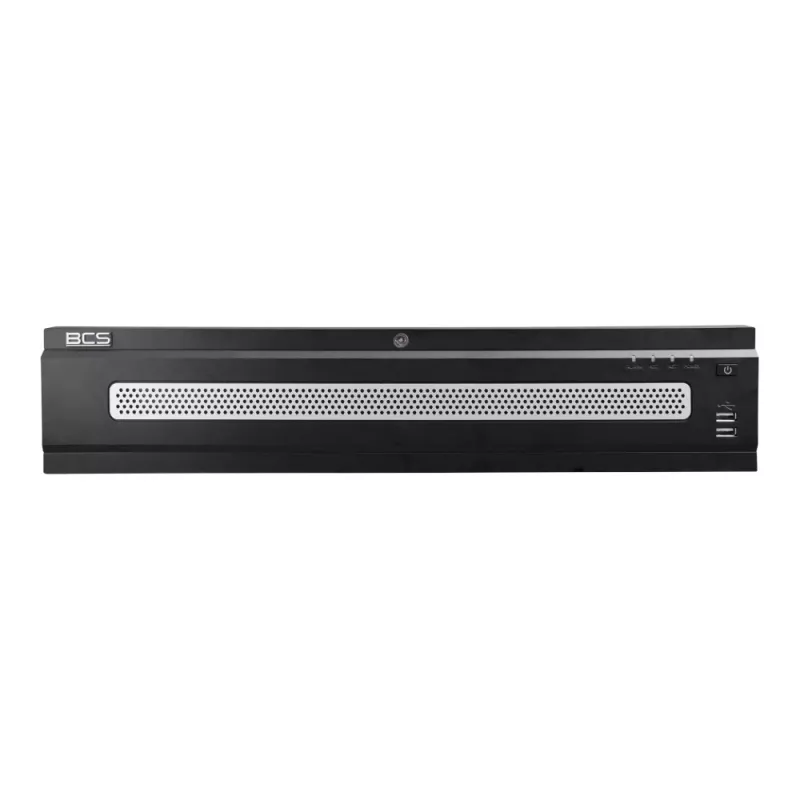

BCS 64-kanaals 8K AI netwerk-videorecorder NVR6408XR-A-8K-Ai

The BCS-L-NVR6408XR-A-8K-Ai is a high-performance 64-channel network video recorder designed for advanced surveillance systems. Supporting up to 32 MP resolution and 8K HDMI output, it delivers exceptional image clarity. With 8 SATA III bays supporting up to 160 TB total storage and RAID 0/1/5/6/10, it ensures reliable data protection. AI features include perimeter protection, face detection/recognition, ANPR, people counting, and heat mapping, making it ideal for large-scale security applications.

Advantages

This NVR offers powerful AI analytics, high recording capacity, and robust RAID support, ensuring both security and data integrity. Its 64-channel capability and 384 Mbps bandwidth handle demanding environments like retail, transportation, and enterprise campuses.

Suitable for

• Large retail stores and shopping malls
• Corporate office buildings and campuses
• Transportation hubs (airports, train stations)
• Industrial facilities and warehouses
• Government and public safety installations

Key specifications

• Video Channels: 64
• Max Recording Resolution: 32 MP
• Max Output Resolution: 8K (HDMI)
• HDD Bays: 8 x SATA III (up to 20 TB each, 160 TB total)
• RAID Support: RAID 0, 1, 5, 6, 10
• Incoming/Outgoing Bandwidth: 384 Mbps
• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Video Outputs: 2x HDMI, 1x VGA
• Audio: 1x RCA In, 2x RCA Out
• Alarm: 16x In, 8x Out
• Network: 2x Gigabit Ethernet (RJ-45)
• USB: 2x USB 2.0, 2x USB 3.0
• AI Features: Perimeter Protection, SMD Plus, Face Detection, Face Recognition, ANPR, People Counting, Heat Map
• Decoding: 4-ch@32MP (25fps) / 8-ch@16MP (25fps) / 16-ch@8MP (25fps) / 32-ch@4MP (25fps) / 64-ch@2MP (25fps)
• Power: AC 100-240V, 50/60Hz, <20W (without HDDs)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use enterprise-grade SATA III HDDs (up to 20 TB each) and ensure proper ventilation. The NVR supports up to 64 IP cameras; select cameras with compatible AI features for full functionality.
