Hikvision HiLook 4-kanaals 5MP Lite DVR DVR-204Q-M1 (E) - 5-in-1 hybride DVR

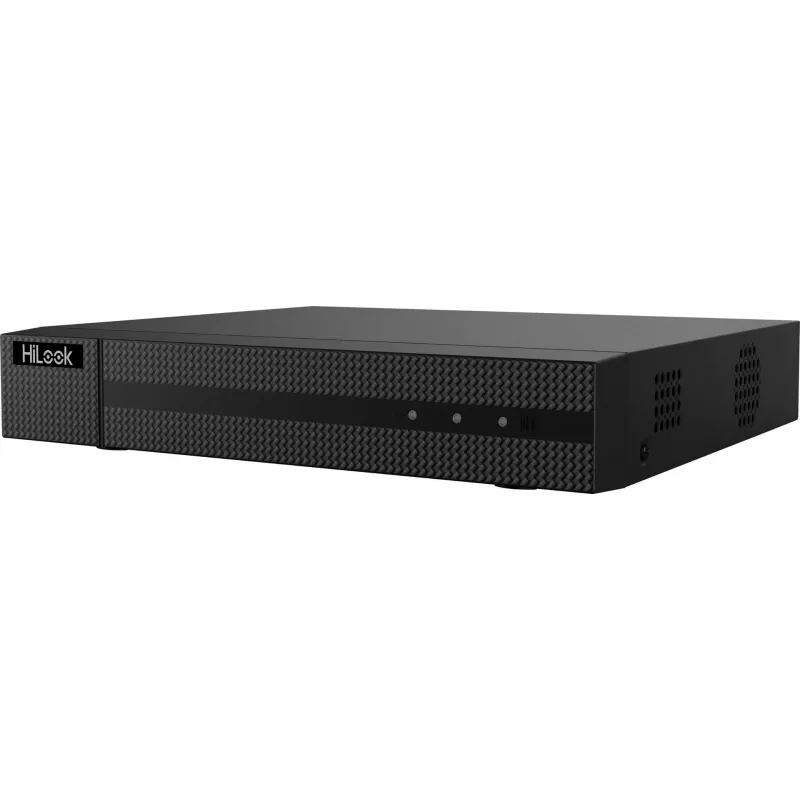

The Hikvision HiLook DVR-204Q-M1 (E) is a 4-channel 5-in-1 hybrid DVR designed for small to medium-sized surveillance systems. It supports multiple analog camera technologies (HDTVI, AHD, CVI, CVBS) and IP cameras, offering flexibility and high-quality recording up to 5MP Lite resolution. With H.264+ compression, it optimizes storage and bandwidth without compromising video quality.

Advantages

This DVR provides a cost-effective solution for upgrading existing analog systems to high-definition surveillance. Its 5-in-1 technology ensures compatibility with various camera types, while the built-in PoE (Power over Ethernet) simplifies installation for IP cameras. The device supports up to 10TB of storage via a single SATA HDD, ensuring ample recording capacity.

Suitable for

• Retail stores and small businesses requiring reliable 24/7 surveillance
• Residential properties needing a simple yet powerful security system
• Upgrading legacy analog CCTV systems to HD without replacing all cameras

Key specifications

• 4-channel BNC analog input + 1-channel IP (up to 5 total channels)
• Recording resolution: 5MP Lite, 4MP Lite, 1080p, 720p, WD1, 4CIF, VGA, CIF
• Video compression: H.264+ / H.264
• HDMI and VGA simultaneous output up to 1920x1080
• 1 SATA interface, max 10TB HDD
• 1 RJ45 10/100Mbps Ethernet port
• 2 USB 2.0 ports
• 1-channel audio input and output
• Power supply: 12 VDC

Recommendations

For optimal performance, use with Hikvision HiLook cameras and a high-quality SATA HDD rated for surveillance. Ensure proper ventilation and stable power supply.
