UNIVIEW NVR301-16B-IQ 16-kanaals IP-recorder

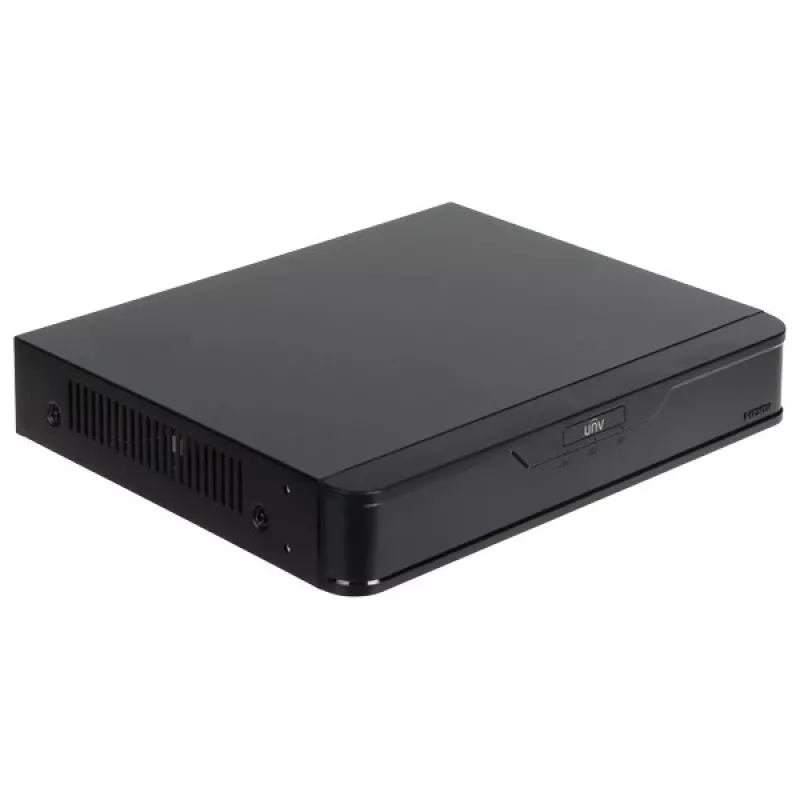

The UNIVIEW NVR301-16B-IQ is a high-performance 16-channel network video recorder designed for professional surveillance systems. Supporting up to 8MP (4K) resolution and H.265+ compression, it delivers exceptional video quality while optimizing storage and bandwidth. With a single SATA bay supporting up to 10TB, this NVR is ideal for small to medium-sized installations requiring reliable, long-term recording.

Advantages

This NVR offers seamless integration with UNIVIEW IP cameras and supports VCA detection features such as intrusion and cross-line detection. Its compact design and low power consumption (≤8W without HDD) make it an energy-efficient choice for 24/7 operation.

Suitable for

• Retail stores and small businesses
• Office surveillance
• Residential security systems
• Warehouse monitoring

Key specifications

• 16 IP camera channels
• Max recording resolution: 8MP (4K)
• Video compression: H.265+/H.265/H.264
• Incoming bandwidth: 80 Mbps, outgoing: 64 Mbps
• 1 SATA HDD bay, up to 10TB per bay
• Video outputs: 1x HDMI (4K), 1x VGA (1080p)
• Audio: 1-channel RCA input, 1-channel RCA output
• Network: 1x RJ45 10/100Mbps Ethernet
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Decoding: 1x 4K@30fps, 4x 1080p@30fps, 8x 720p@30fps
• Synchronous playback: 16-channel
• Power supply: DC 12V, consumption ≤8W (without HDD)
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with UNIVIEW IP cameras and use a high-quality SATA HDD (not included). Ensure proper ventilation for reliable operation.
