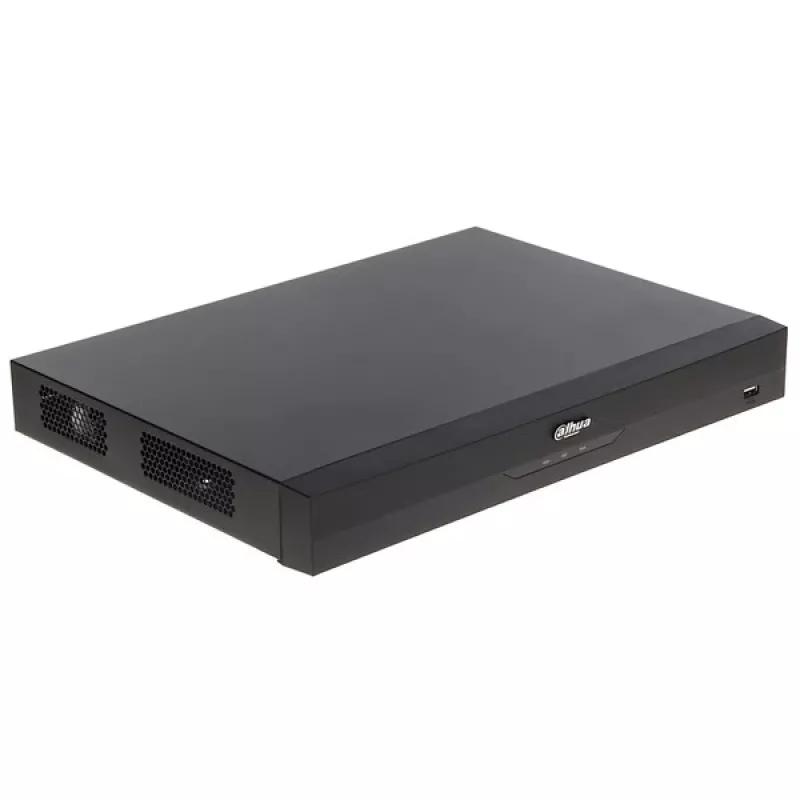

Dahua XVR5216AN-I3/T 16-kanaals 5M-N digitale videorecorder met AI

The Dahua XVR5216AN-I3/T is a high-performance 16-channel digital video recorder that supports HDCVI, AHD, HD-TVI, and CVBS analog cameras, as well as IP cameras. With advanced AI features like perimeter protection and SMD Plus, it provides intelligent security monitoring for small to medium-sized businesses and residential applications. The recorder supports H.265+ compression for efficient storage and offers up to 4K HDMI output for crisp video viewing.

Advantages

This DVR offers flexible video input options, supporting up to 16 analog channels plus up to 8 additional IP channels for a total of 24 channels. AI capabilities include perimeter protection on up to 2 channels and SMD Plus on up to 16 channels, reducing false alarms. The H.265+ compression saves bandwidth and storage space without compromising video quality. Dual SATA ports allow for up to 20TB of storage, ensuring long recording retention.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Residential complexes
• Educational institutions

Key specifications

• Video Input: 16 channels BNC (HDCVI/AHD/HDTVI/CVBS auto-detect) + up to 8 IP channels
• Max Recording Resolution: 5M-N (1280x1920)
• Video Compression: H.265+/H.265/H.264+/H.264
• HDMI Output: Up to 4K (3840x2160)
• Audio: 1 channel RCA input, 1 channel RCA output
• HDD: 2 SATA ports, up to 10TB each
• Network: 1 RJ-45 10/100/1000 Mbps
• USB: 1 USB 2.0, 1 USB 3.0
• AI: Perimeter protection (2 channels), SMD Plus (16 channels)
• Power: DC12V/4A

Recommendations

For optimal performance, use Dahua HDCVI cameras and high-quality coaxial cables. Ensure the DVR is installed in a well-ventilated area and connected to a reliable power source. Regular firmware updates are recommended to maintain security and functionality.
