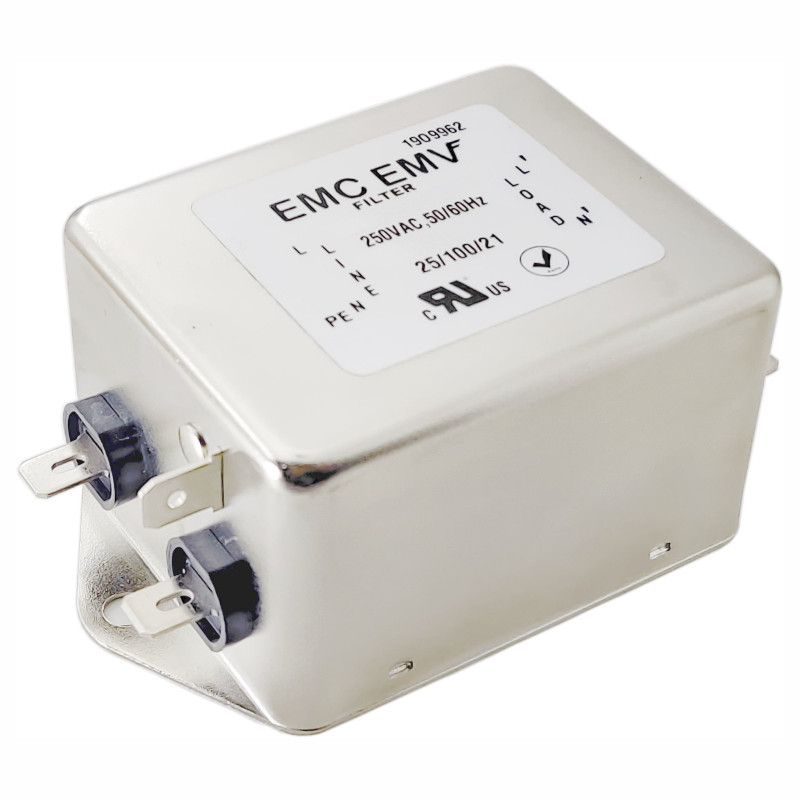

Akyga EN2080-12-F eenfasige EMI-netfilter 12 A, 120–250 V AC, 50/60 Hz, 6,3-mm-aansluitingen

The Akyga EN2080-12-F is a single phase EMI filter designed to protect electronic devices operating up to 12 A from electromagnetic interference. It is suitable for power systems, industrial automation, audio/video installations and sensitive electronic devices where voltage stability is crucial. The filter features a robust metal housing and 6.3 mm connectors for easy installation.

Key features

• Maximum working current: 12 A
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Leads: 6.3 mm connectors
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 153 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes

Specifications

• Brand: Akyga
• MPN: EN2080-12-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 12 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 153 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138910
